Location Home > PCB Solder Terminal > Pole 3.81/3.50 > LG381AHZL-3.5/LG381AHZL-3.81

Description

Property

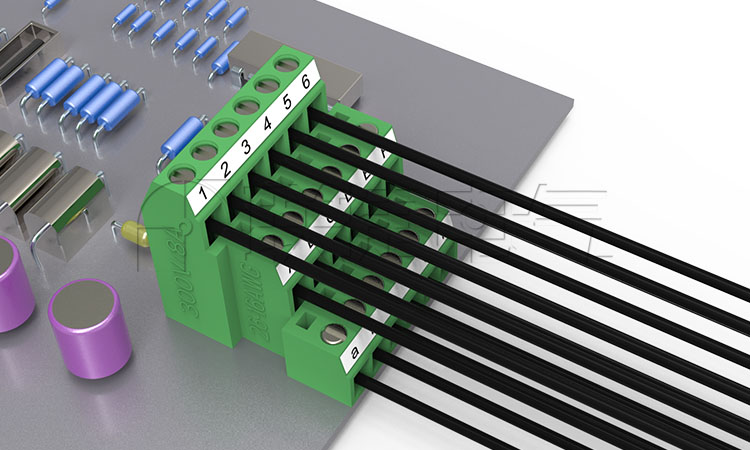

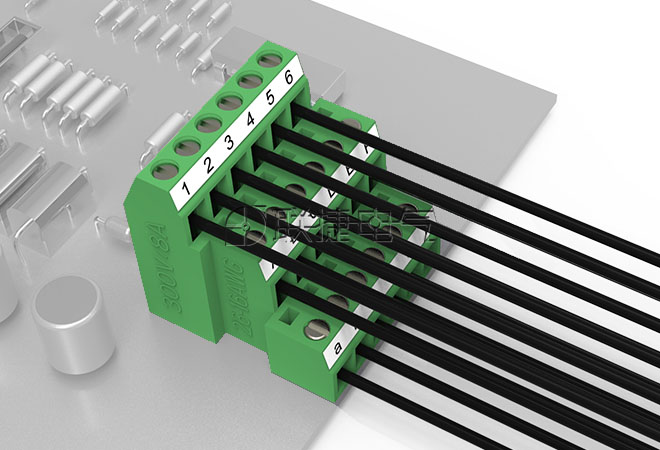

Scene

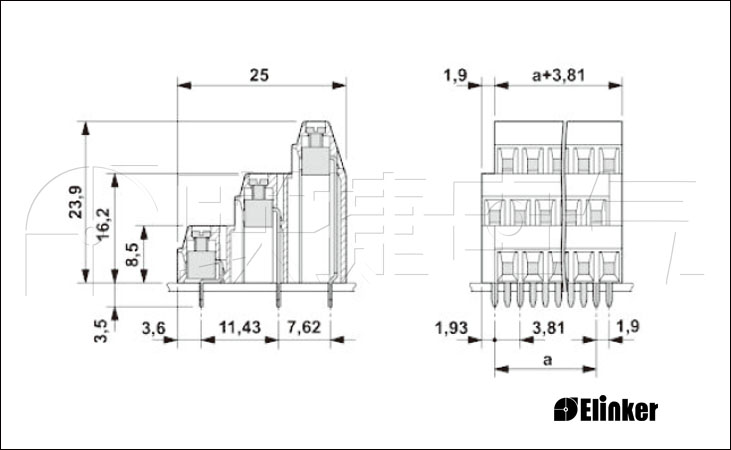

Drawings

Packing

优势

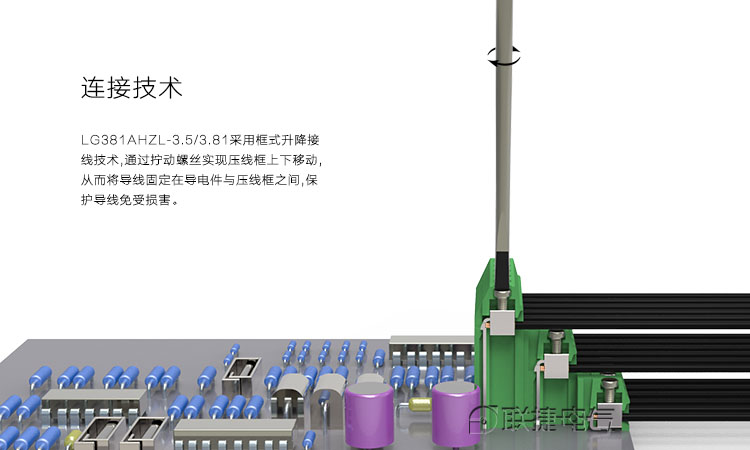

三层结构，升降式压线方式；

塑壳PA66，阻燃等级V0；

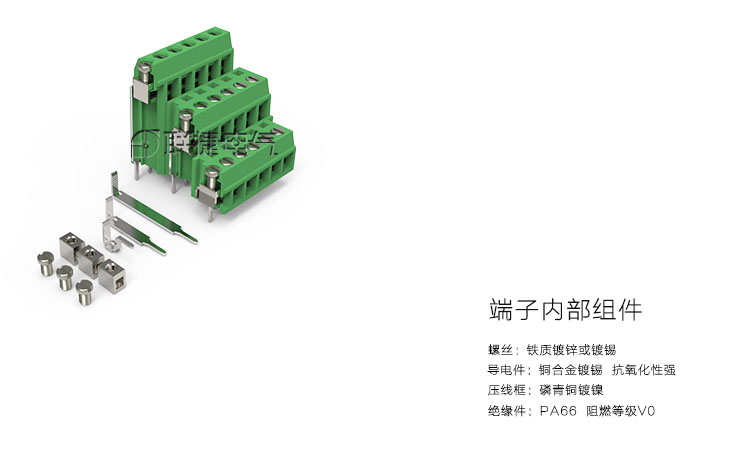

采用镀锡焊针，带散热通道，焊针端部收缩变细，易于安装；

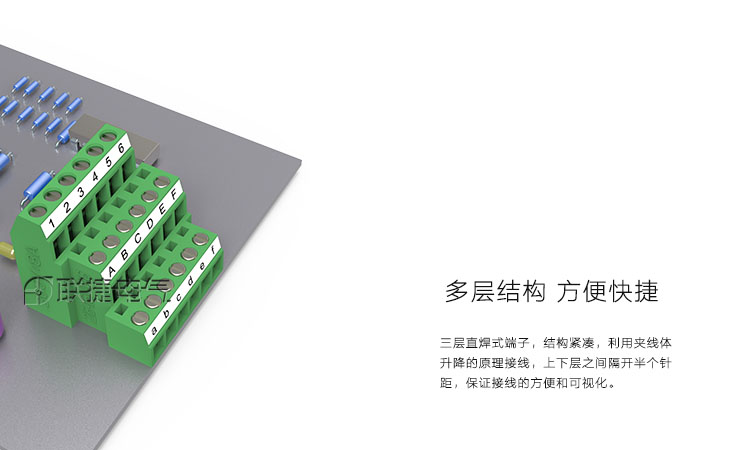

结构化设计兼顾了接线方便和牢固的特点，上下层错开半个针距便于接线。

Product Attribute

[Insulation resistance] 5MΩ

[Rated voltage(V)] 300V

[Rated current(A):] 10A

[Rated current(mm²):] 1.0

[Wire Size(AWG):] 26-16

[Single/multi-core diameter(mm²):] 0.14-1.5

[Maximum locking torque(Nm):] 0.22-0.25

[Screw:] M2

[Strip length(mm):] 5

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Solder Terminal
