Location Home > PCB Barrier Terminal > Pole 7.62 > LW3MB-7.62

Description

Property

Scene

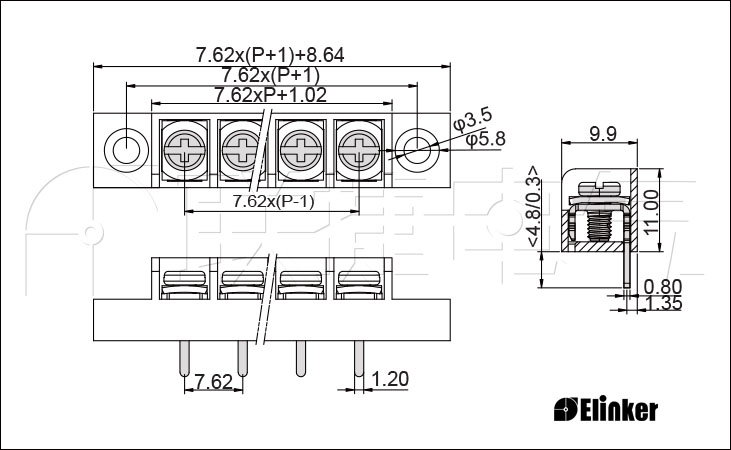

Drawings

Packing

Product Attribute

[Temperature(℃):] -40~+105

[Insulation resistance] 500MΩ/DC500V

[Rated voltage(V)] 300V

[Rated current(A):] 15A

[Wire Size(AWG):] 22-14

[Maximum locking torque(Nm):] 0.4N.m 3.5Lb.in

[Screw:] Steel,M2.5 Ni-Plated

[Resistant voltage(kv):] AC2500v/Min

[Terminal Block:] Brass,0.7t,Tin-Plated

[Material] PA66 UL94V-0

Product Attribute
[Temperature(℃):]	-40~+105
[Insulation resistance]	500MΩ/DC500V
[Rated voltage(V)]	300V
[Rated current(A):]	15A
[Wire Size(AWG):]	22-14
[Maximum locking torque(Nm):]	0.4N.m 3.5Lb.in
[Screw:]	Steel,M2.5 Ni-Plated
[Resistant voltage(kv):]	AC2500v/Min
[Terminal Block:]	Brass,0.7t,Tin-Plated
[Material]	PA66 UL94V-0

Product Attribute
[Temperature(℃):]	-40~+105
[Insulation resistance]	500MΩ/DC500V
[Rated voltage(V)]	300V
[Rated current(A):]	15A
[Wire Size(AWG):]	22-14
[Maximum locking torque(Nm):]	0.4N.m 3.5Lb.in
[Screw:]	Steel,M2.5 Ni-Plated
[Resistant voltage(kv):]	AC2500v/Min
[Terminal Block:]	Brass,0.7t,Tin-Plated
[Material]	PA66 UL94V-0
