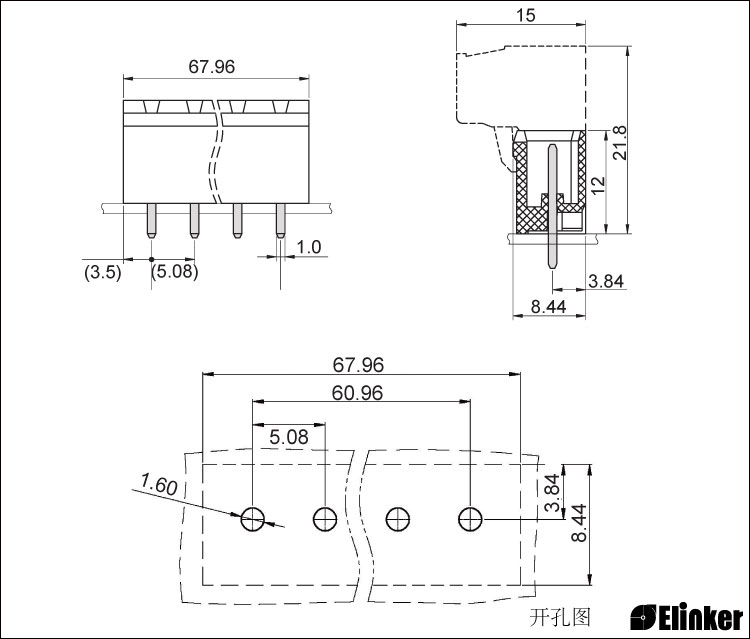

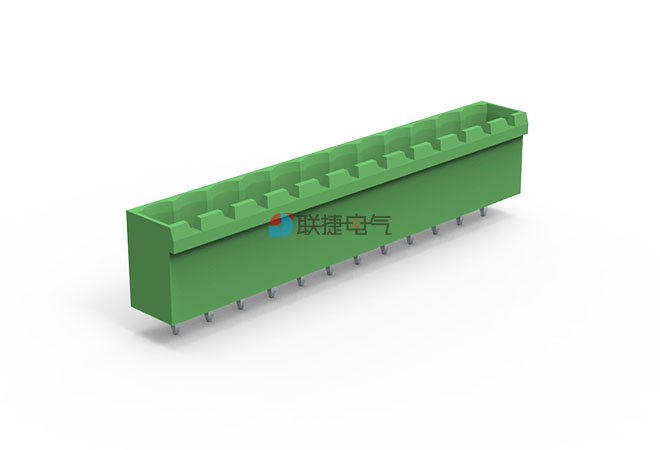

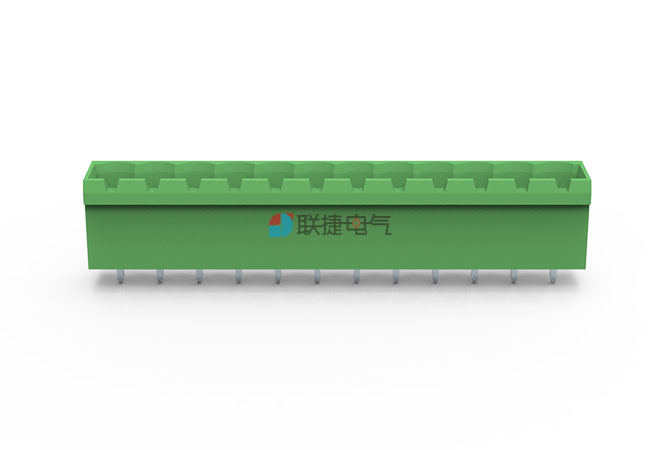

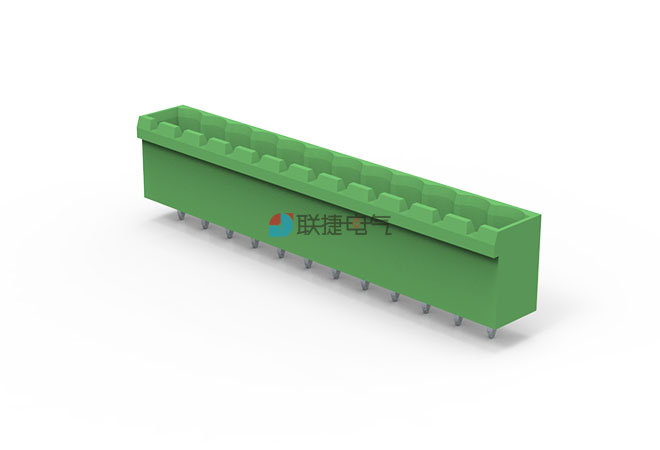

LZ1V-5.08-12P-140



       优势

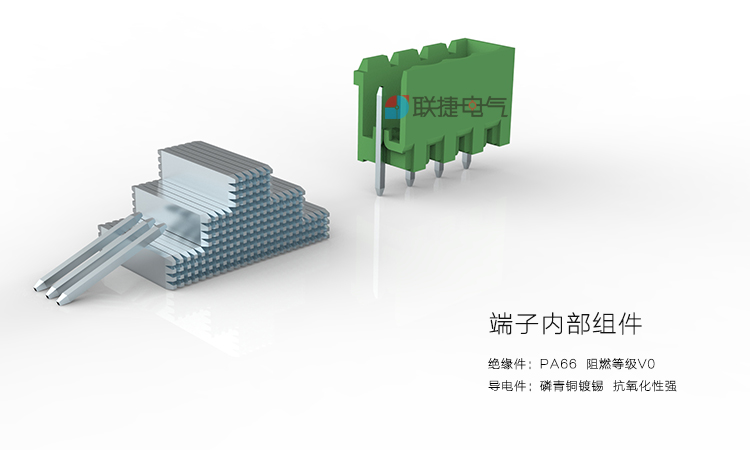

  水平型焊针,封闭型壳体,无安装螺丝；

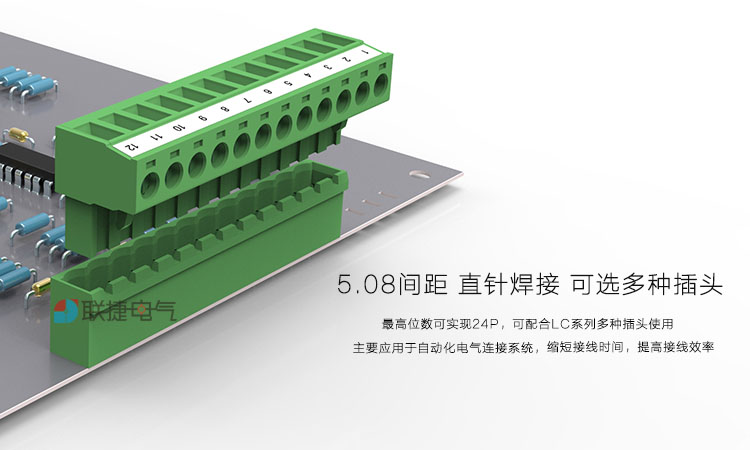

  2-12P常备,最高可定制24P产品；

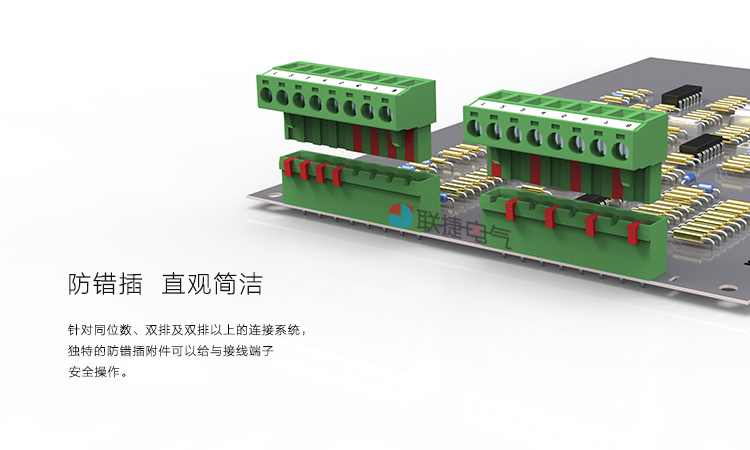

  通过防错插件对插头插座进行防错位保护。







Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	12线
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBVA 2,5/12-G-5.08 MSTBVA2.5/12-G-5.08 1755833 SL 5.08HC/12/180G 3.2SN OR BX SL5.08HC/12/180G 1146950000 SL 5.08HC/12/180G 3.2SN BK BX 1148970000 2EHDVC-12P 2EHDVC12P 2EDGVC-5.08-12P-14 2EDGVC-5.08-12P OQ-5.08-12P-180D Close OQ1254500000G OQ-C/180D-5.08-12P 12POS 5.08MM CE VRT HDR, TRM BLK 12POS5.08MMCEVRTHDR.TRMBLK 1-796636-2 1-796637-2 STLZ950/12G-5.08-V-绿色 50950125121D PTB750S-03-2-12-3 ME040-50812 F85-5-5.08-12P F855E1200051 PCB排针 8213 S / 12 G PCB排针 8213 S / 12 G OB 8213S/12GOB 25.350.4253.0
