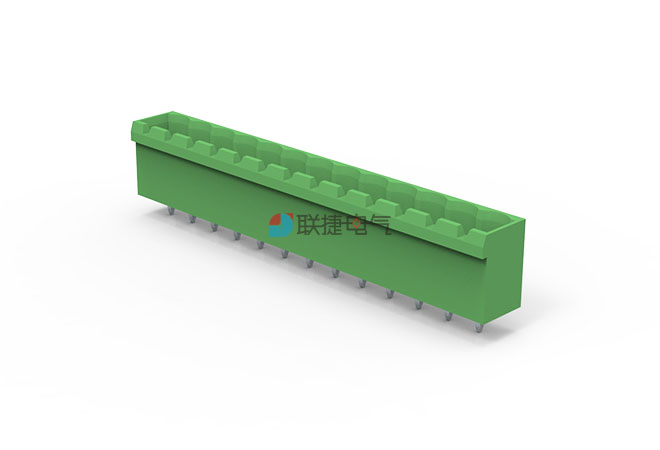

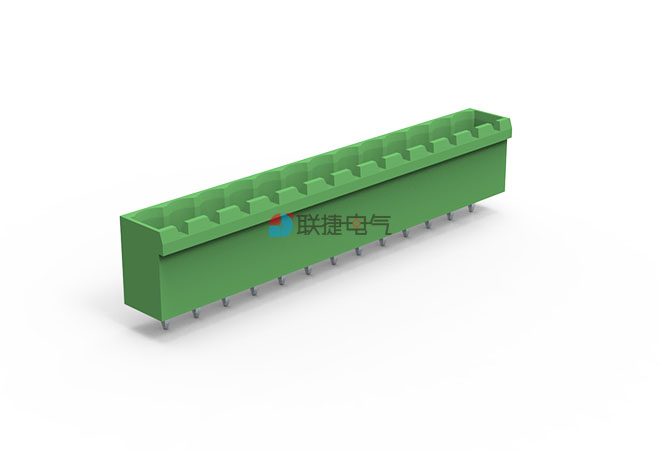

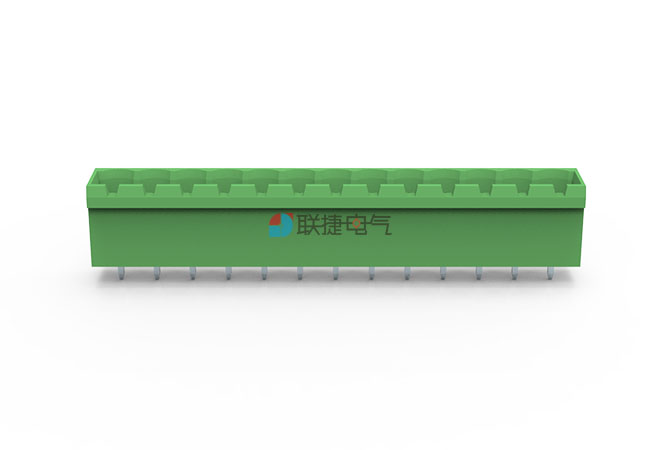

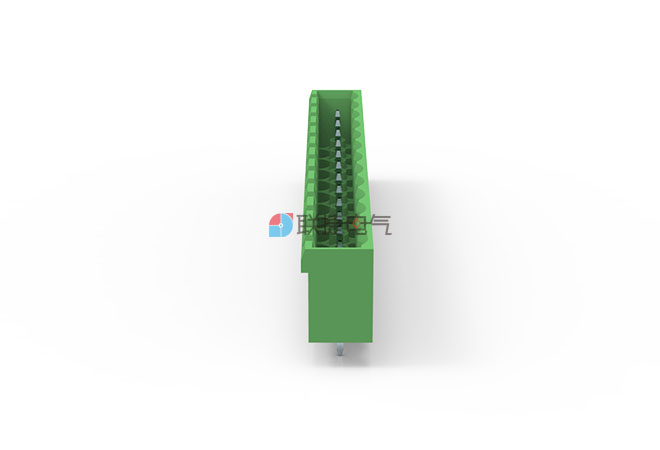

LZ1V-5.08-13P-140



       优势

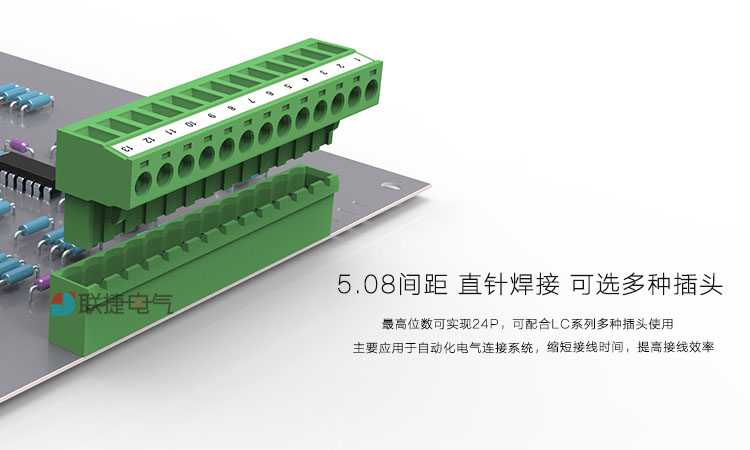

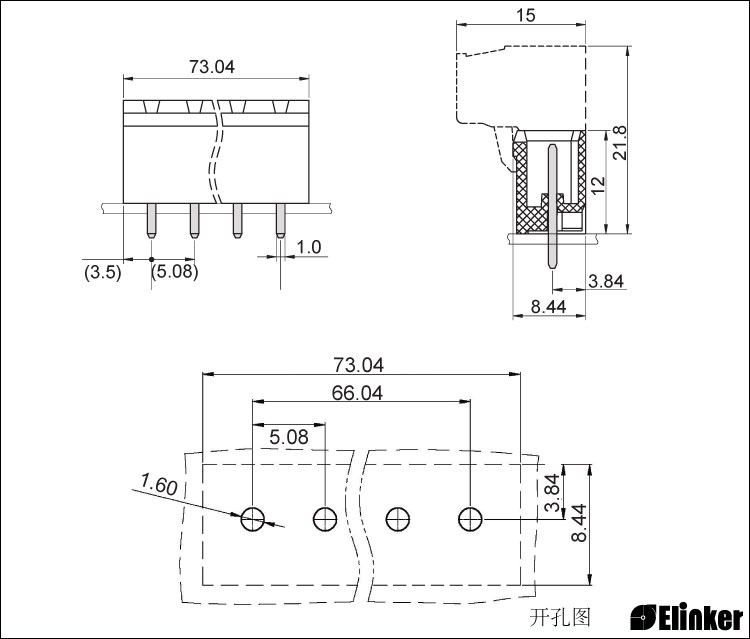

  水平型焊针,封闭型壳体,无安装螺丝；

  2-12P常备,最高可定制24P产品；

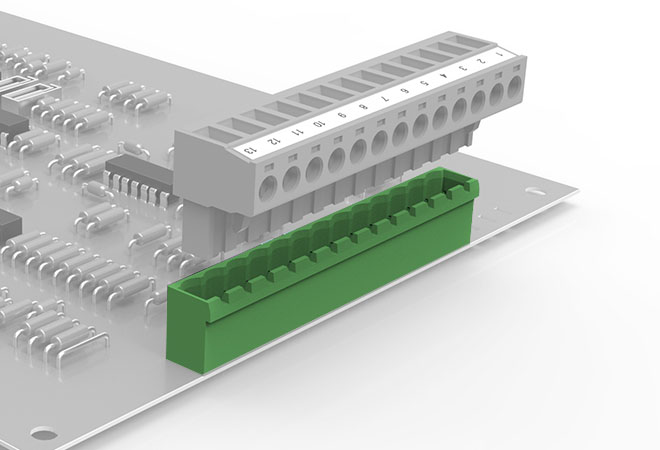

  通过防错插件对插头插座进行防错位保护。







Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	13p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBVA 2,5/13-G-5.08 MSTBVA2.5/13-G-5.08 1755846 SL 5.08HC/13/180G 3.2SN OR BX SL5.08HC/13/180G 1146980000 SL 5.08HC/13/180G 3.2SN BK BX 1149000000 2EHDVC-13P 2EHDVC13P 2EDGVC-5.08-13P-14 2EDGVC-5.08-13P OQ-5.08-13P-180D Close OQ1354500000G OQ-C/180D-5.08-13P 13POS 5.08MM CE VRT HDR, TRM BLK 13POS5.08MMCEVRTHDR.TRMBLK 1-796636-3 1-796637-3 STLZ950/13G-5.08-V-绿色 50950135121D PTB750S-03-2-13-3 ME040-50813 F85-5-5.08-13P F855E1300051 PCB排针 8213 S / 13 G PCB排针 8213 S / 13 G OB 8213S/13GOB 25.350.4353.0
