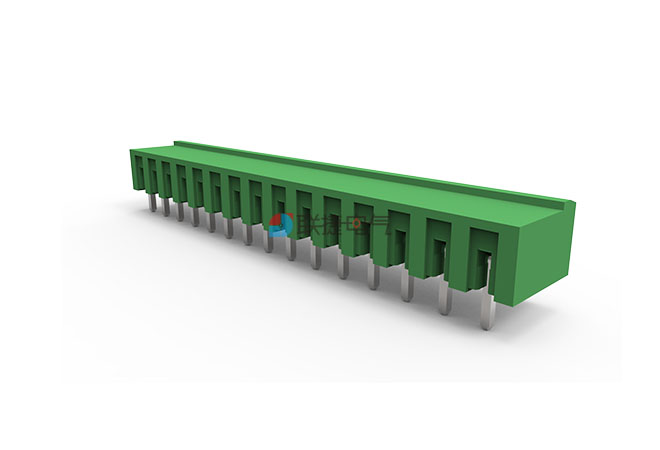

LZ1R-5.08-15P-140



       优势



  垂直型焊针,封闭型壳体,无安装螺丝；

  2-12P常备,最高可定制24P产品；

  通过防错插件对插头插座进行防错位保护。







Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	15p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBA 2,5/15-G-5.08 MSTBA2.5/15-G-5.08 1757378 SL 5.08HC/15/180 3.2SN OR BX SL5.08HC/15/180 1147700000 SL 5.08HC/15/90G 3.2SN BK BX 1155470000 2EHDRC-15P 2EHDRC-15P 2EDGRC-5.08-15P-14 2EDGRC-5.08-15P OQ-5.08-15P-90D Close OQ1554510000G OQ-C/90D-5.08-15P 15POS 5.08MM CE R/A HDR, TRM BLK 15POS5.08MMCER/AHDR.TRMBLK 1-796638-5 1-796639-5 STLZ950/15G-5.08-H-绿色 50950155021D PTB750S-02-2-15-3 ME030-50815 F85-7-5.08-15P F857E1500051 PCB排针 8213 S / 15 W OB 8213S/15WOB 25.352.4553.0

Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	15p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBA 2,5/15-G-5.08 MSTBA2.5/15-G-5.08 1757378 SL 5.08HC/15/180 3.2SN OR BX SL5.08HC/15/180 1147700000 SL 5.08HC/15/90G 3.2SN BK BX 1155470000 2EHDRC-15P 2EHDRC-15P 2EDGRC-5.08-15P-14 2EDGRC-5.08-15P OQ-5.08-15P-90D Close OQ1554510000G OQ-C/90D-5.08-15P 15POS 5.08MM CE R/A HDR, TRM BLK 15POS5.08MMCER/AHDR.TRMBLK 1-796638-5 1-796639-5 STLZ950/15G-5.08-H-绿色 50950155021D PTB750S-02-2-15-3 ME030-50815 F85-7-5.08-15P F857E1500051 PCB排针 8213 S / 15 W OB 8213S/15WOB 25.352.4553.0
