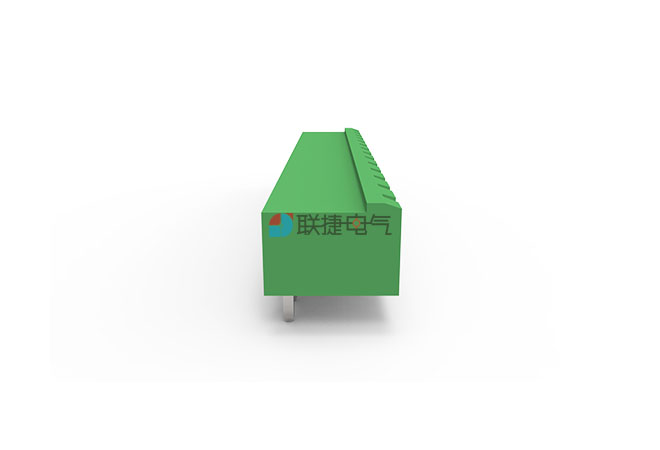

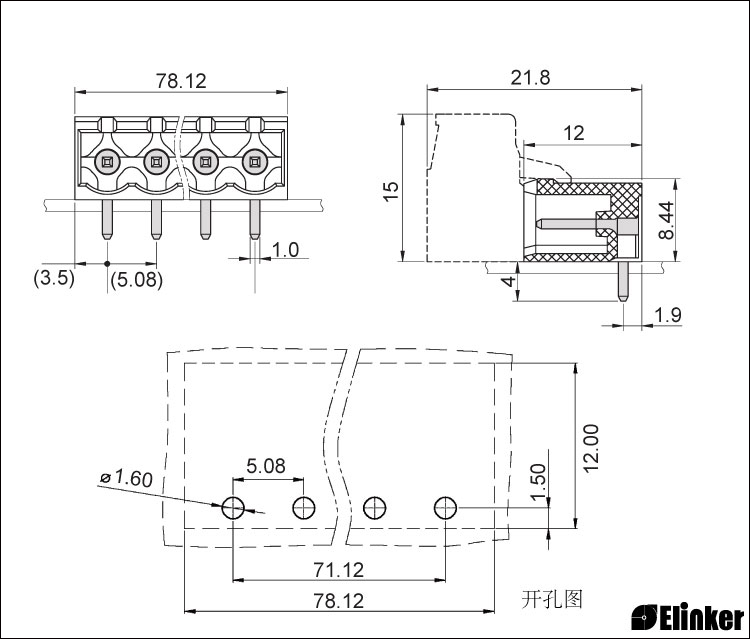

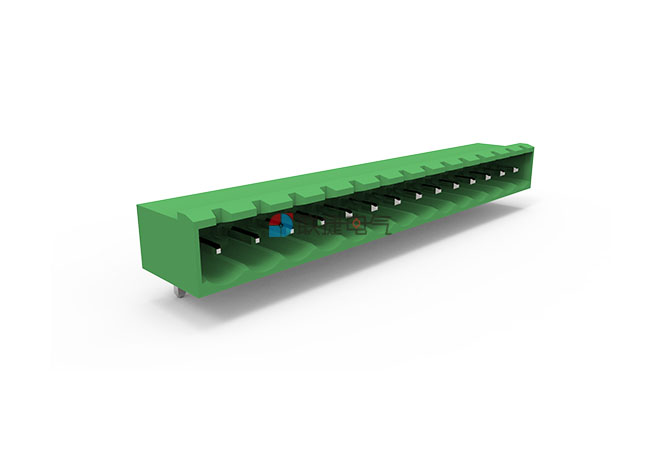

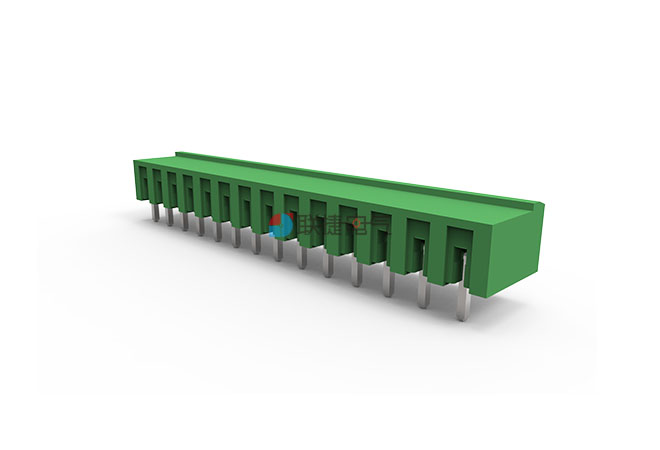

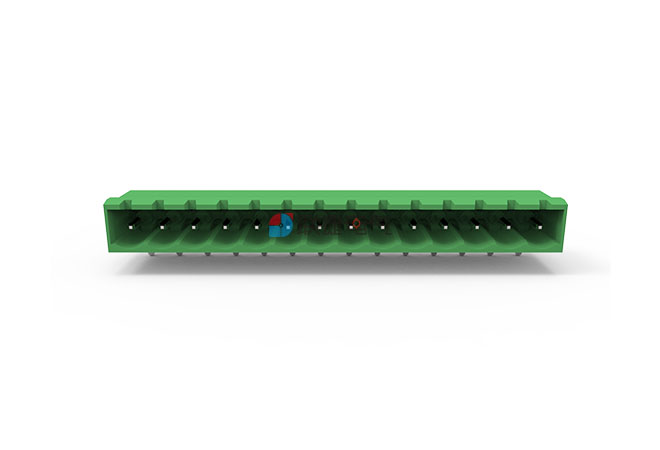

LZ1R-5.08-14P-140



       优势



  垂直型焊针,封闭型壳体,无安装螺丝；

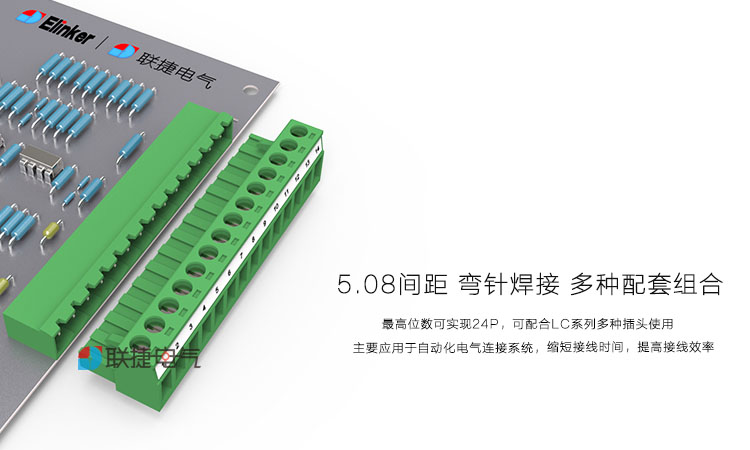

  2-12P常备,最高可定制24P产品；

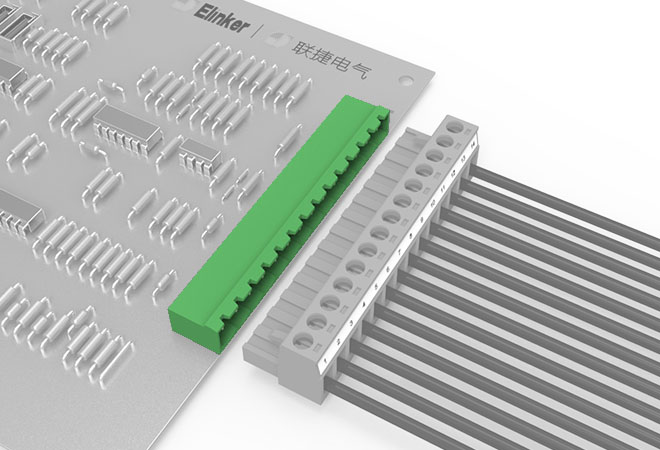

  通过防错插件对插头插座进行防错位保护。







Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	14p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBA 2,5/14-G-5.08 MSTBA2.5/14-G-5.08 1757365 SL 5.08HC/14/180 3.2SN OR BX SL5.08HC/14/180 1147680000 SL 5.08HC/14/90G 3.2SN BK BX 1155450000 2EHDRC-14P 2EHDRC-14P 2EDGRC-5.08-14P-14 2EDGRC-5.08-14P OQ-5.08-14P-90D Close OQ1454510000G OQ-C/90D-5.08-14P 14POS 5.08MM CE R/A HDR, TRM BLK 14POS5.08MMCER/AHDR.TRMBLK 1-796638-4 1-796639-4 STLZ950/14G-5.08-H-绿色 50950145021D PTB750S-02-2-14-3 ME030-50814 F85-7-5.08-14P F857E1400051 PCB排针 8213 S / 14 W OB 8213S/14WOB 25.352.4453.0

Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	14p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBA 2,5/14-G-5.08 MSTBA2.5/14-G-5.08 1757365 SL 5.08HC/14/180 3.2SN OR BX SL5.08HC/14/180 1147680000 SL 5.08HC/14/90G 3.2SN BK BX 1155450000 2EHDRC-14P 2EHDRC-14P 2EDGRC-5.08-14P-14 2EDGRC-5.08-14P OQ-5.08-14P-90D Close OQ1454510000G OQ-C/90D-5.08-14P 14POS 5.08MM CE R/A HDR, TRM BLK 14POS5.08MMCER/AHDR.TRMBLK 1-796638-4 1-796639-4 STLZ950/14G-5.08-H-绿色 50950145021D PTB750S-02-2-14-3 ME030-50814 F85-7-5.08-14P F857E1400051 PCB排针 8213 S / 14 W OB 8213S/14WOB 25.352.4453.0
