Location Home > PCB Spring Terminal > Pole 7.50/5.00 > LS235-5.0/7.5

Description

Property

Scene

Drawings

Packing

优势

  180°进线方向，位数灵活；

  可以连接截面积为2.5mm²的柔性导线；

  蝶式弹片连接，方便快捷。

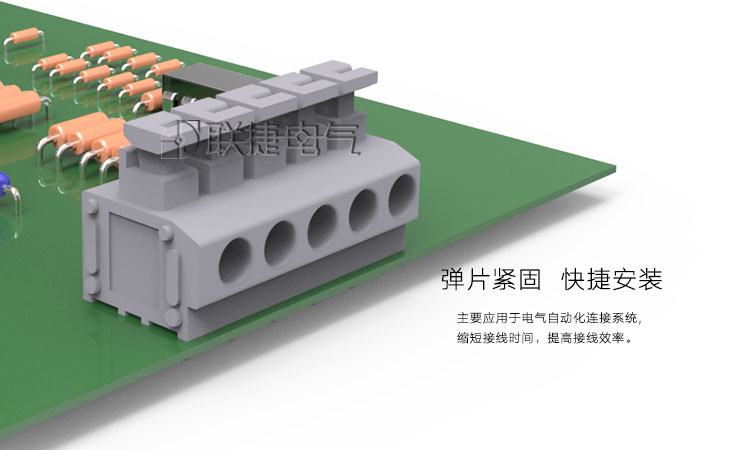

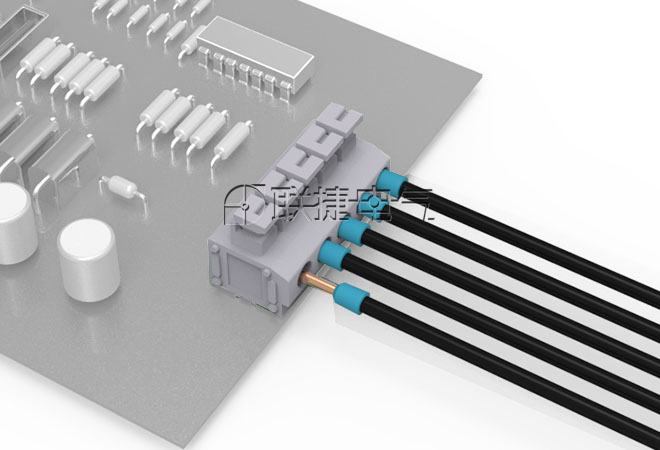

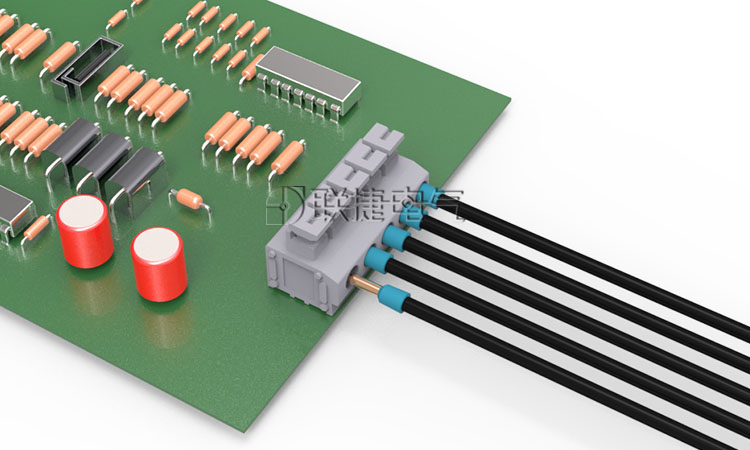

LS235弹簧印刷电路板端子，按下按钮，导线轻松接入

Product Attribute

[Rated voltage(V)] 【IEC】250V【UL】300V

[Rated current(A):] 【IEC】10A【UL】5A

[Rated current(mm²):] 1.5

[Wire Size(AWG):] 20-18

[Strip length(mm):] 10

[Resistant voltage(kv):] 2

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】10A【UL】5A
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	20-18
[Strip length(mm):]	10
[Resistant voltage(kv):]	2
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】10A【UL】5A
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	20-18
[Strip length(mm):]	10
[Resistant voltage(kv):]	2
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
