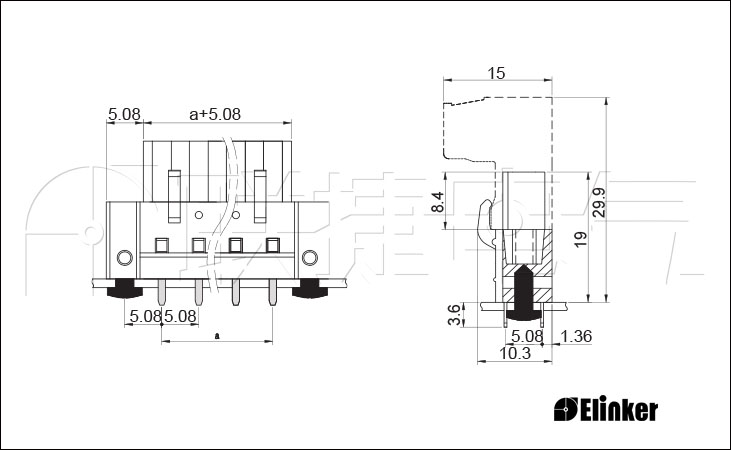

Drawings

Packing

优势

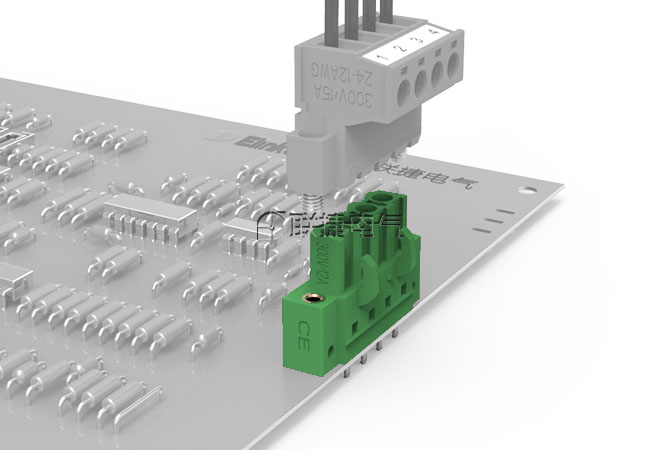

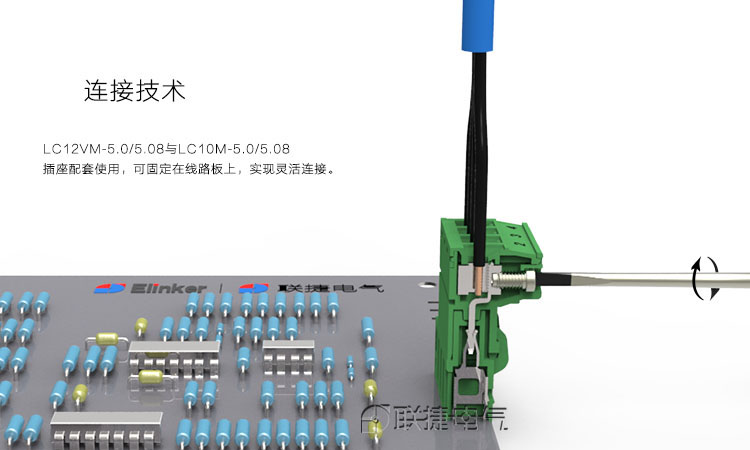

活动的插头可固定在PCB板上，实现灵活连接；

插头插座可可互相插紧，节省空间；

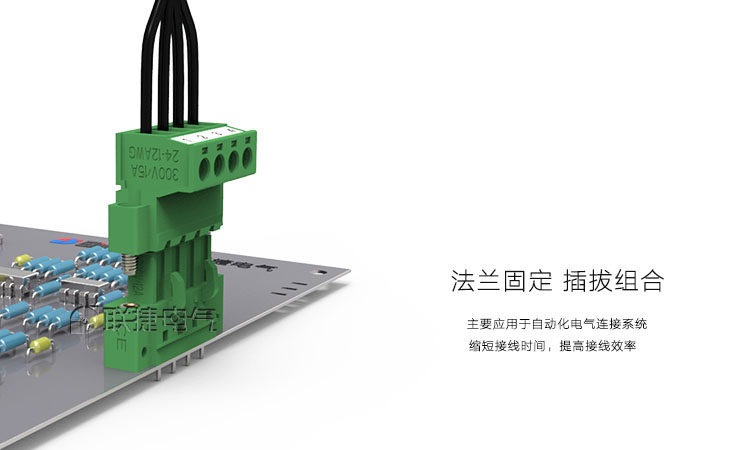

法兰固定，连接更牢固；

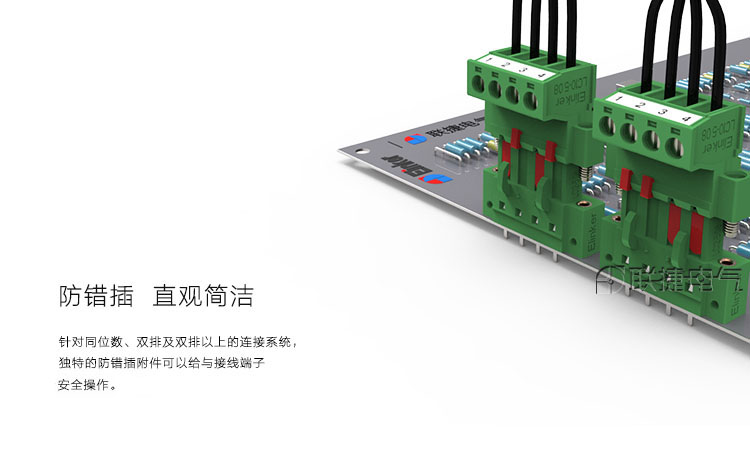

防错插件可保证端子正确连接。

Product Attribute

[Rated voltage(V)] 【IEC】320V【UL】300V

[Rated current(A):] 【IEC】12A【UL】12A

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block

[The same model] ICV 2.5/...-GF-5.08 BLL5.08/180F 2ESDCVM 2EDGBM-5.08 V7 5.0-Vertical W/F PTB750S-27 MF206-5.08

Product Attribute
[Rated voltage(V)]	【IEC】320V【UL】300V
[Rated current(A):]	【IEC】12A【UL】12A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	ICV 2.5/...-GF-5.08 BLL5.08/180F 2ESDCVM 2EDGBM-5.08 V7 5.0-Vertical W/F PTB750S-27 MF206-5.08
