Location Home > PCB Pluggable terminal > LZ 2-24P > LZ1R-5.08(2-24P) > LZ1R-5.08-17P-140

Assembly

LC1-5.08-17P-140

Description

Property

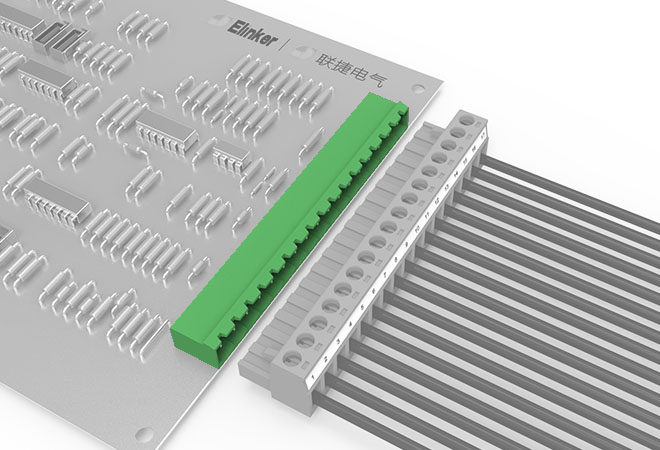

Scene

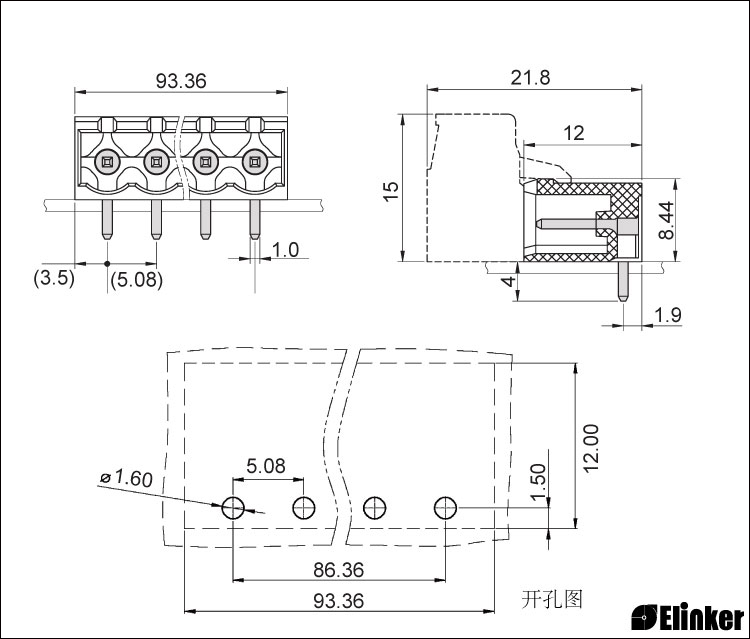

Drawings

Packing

优势

垂直型焊针,封闭型壳体,无安装螺丝；

2-12P常备,最高可定制24P产品；

通过防错插件对插头插座进行防错位保护。

Product Attribute

[Rated current(A)] 15A【UL】17.5A【IEC】

[Rated voltage(V)] 300V【UL】320【IEC】

[Insulation Resistance:] PA/V0

[Poles(P):] 17p

[Terminal Block:] pluggable terminal/PCB terminal block

Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	17p
[Terminal Block:]	pluggable terminal/PCB terminal block
