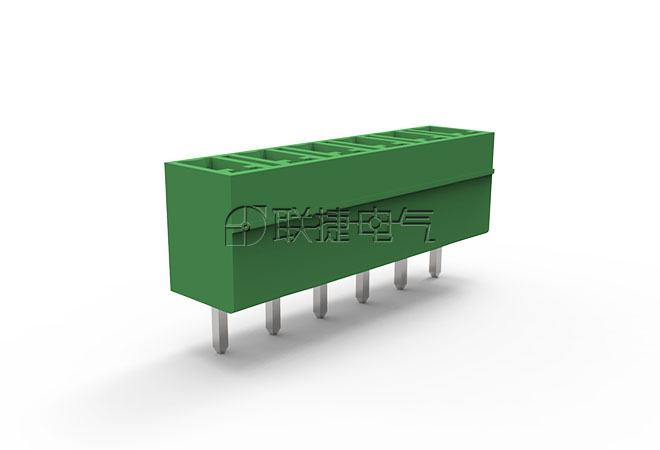

LZ1XV-5.0/LZ1XV-5.08_Pole -5.08/5.00_Pluggable terminal(Header)_PCB Pluggable terminal_terminal block-pcb terminal blocks-terminal block manufacturers

Product

Location Home > PCB Pluggable terminal > Pluggable terminal(Header) > Pole -5.08/5.00 > LZ1XV-5.0/LZ1XV-5.08

Assembly

LC5X-5.0/LC5X-5.08

LC1X-5.0/LC1X-5.08

Description

Property

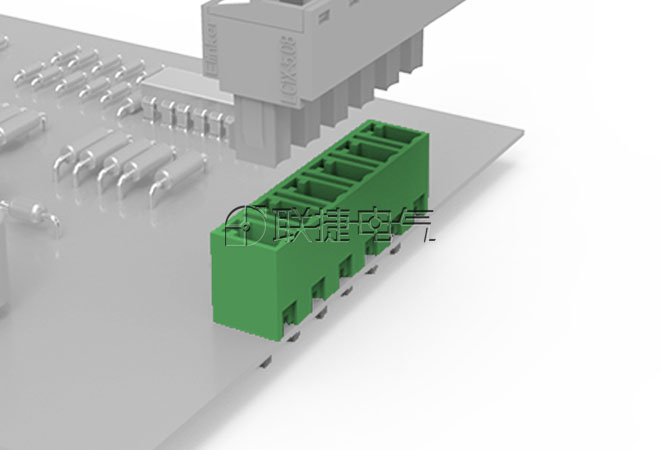

Scene

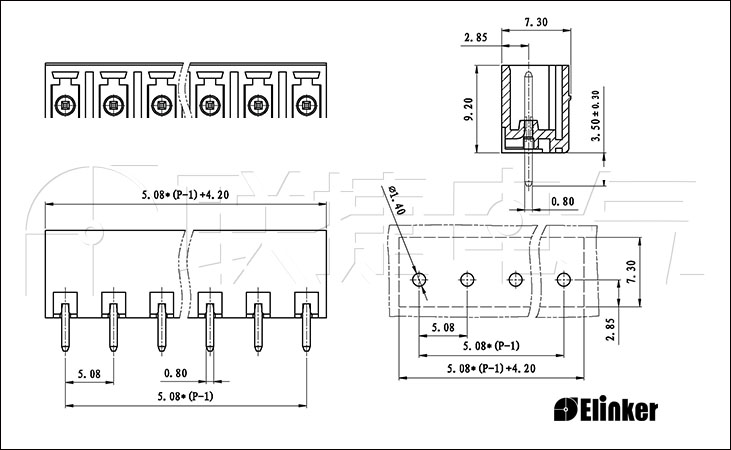

Drawings

Packing

优势

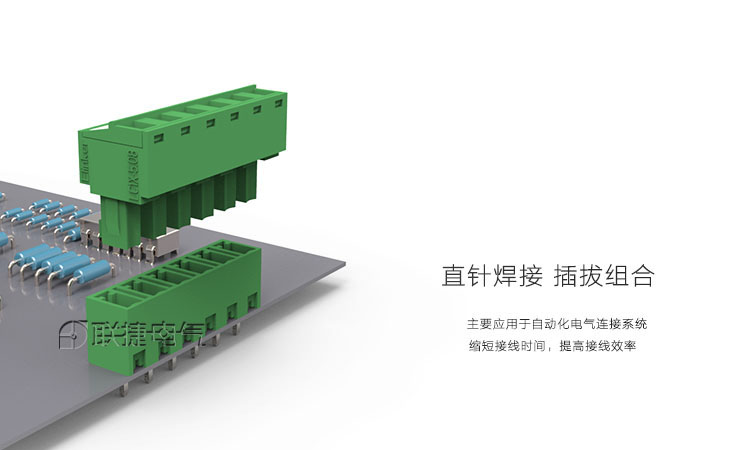

插头插座紧密结合，节省空间；

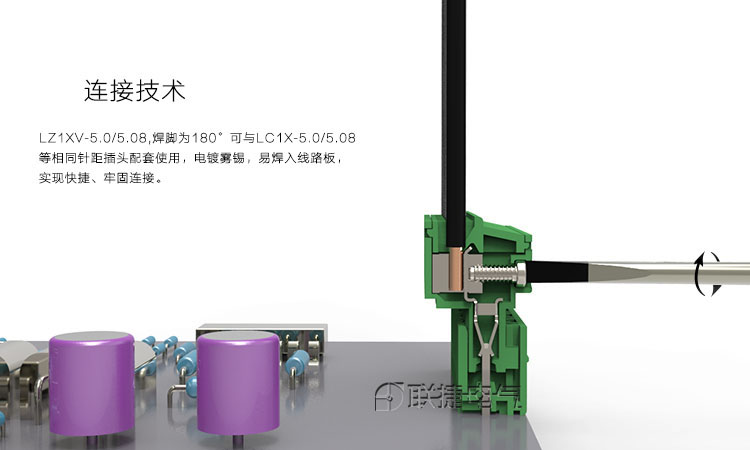

焊针呈180°，电镀雾锡，可焊接于线路板；

可定制，2-24P满足不同接线环境的需要；

自带防错插错位插件，保障电气设备准确安全连接。

Product Attribute

[Temperature(℃):] -40℃~105℃

[Rated voltage(V)] 【IEC】160V【UL】300V

[Rated current(A):] 【IEC】8A【UL】8A

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block
