Location Home > PCB Spring Terminal > Pole 5.08/5.00 > LSC1BM-5.0

Assembly

LSC10BM-5.0

LSZ1BR-5.0

LSZ1BV-5.0

Description

Property

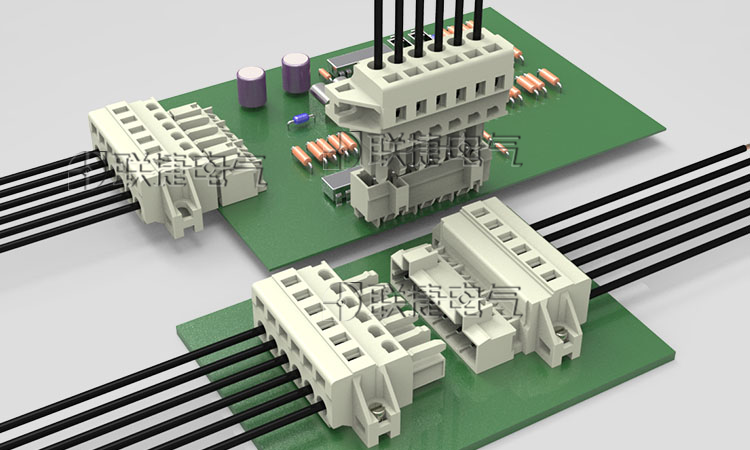

Scene

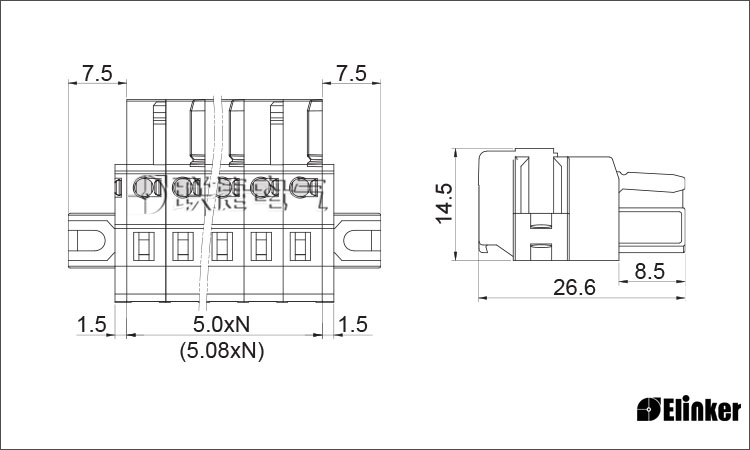

Drawings

Packing

优势

  自带防错插错位结构，插拔准确；

单片拼接，位数灵活；

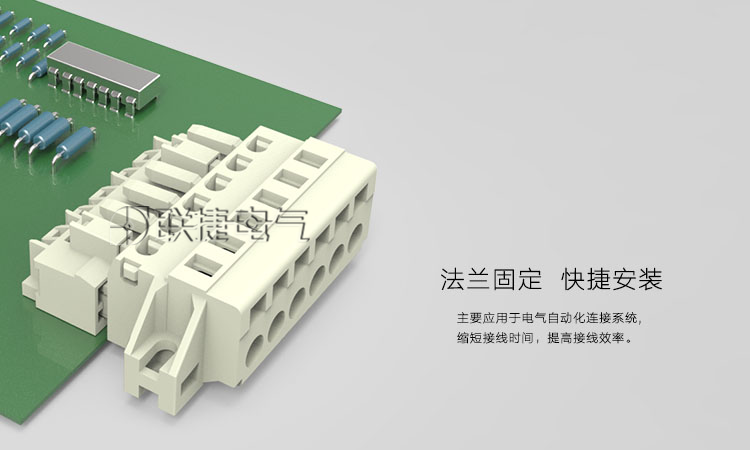

  带法兰，安装牢固；

  接线容量大，可以连接截面积为2.5mm²的柔性导线。

Product Attribute

[Rated voltage(V)] 【IEC】250V【UL】300V

[Rated current(A):] 【IEC】16A【UL】10A

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 28-12

[Single/multi-core diameter(mm²):] 0.08-2.5

[Strip length(mm):] 8

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block
