Description

Property

Scene

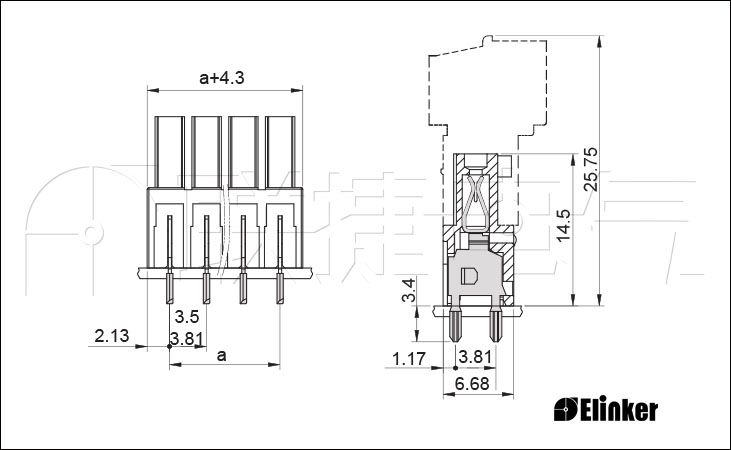

Drawings

Packing

优势

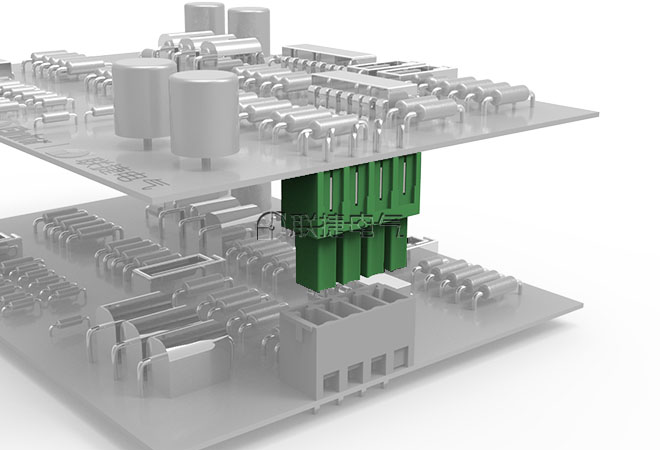

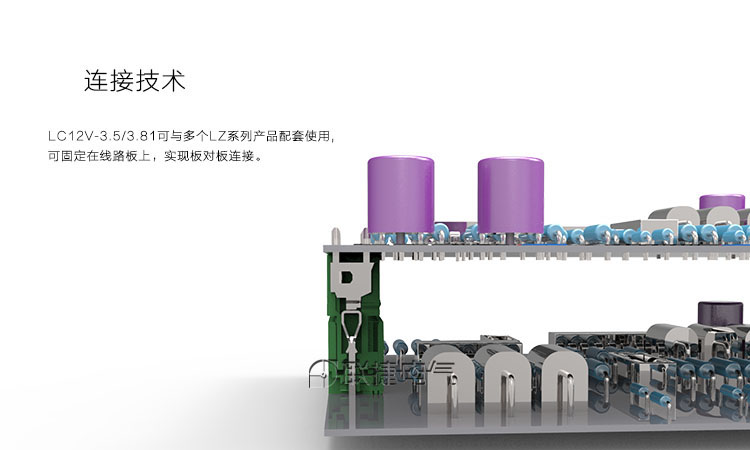

活动的插头固定在PCB板上，实现板对板连接；

可以清晰区分线路板上的输入端和输出端；

间距小，插头插座可互相插紧，节省空间。

Product Attribute

[Rated voltage(V)] 【IEC】160V【UL】300V

[Rated current(A):] 【IEC】8A【UL】10A

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block

[The same model] IMCV 1.5/...-G-3.81 BCL-SMT 3.81/180 EC381CV 15EDGB-3.81 V7 3.81-Vertical MF204-3.81

Product Attribute
[Rated voltage(V)]	【IEC】160V【UL】300V
[Rated current(A):]	【IEC】8A【UL】10A
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	IMCV 1.5/...-G-3.81 BCL-SMT 3.81/180 EC381CV 15EDGB-3.81 V7 3.81-Vertical MF204-3.81

Product Attribute
[Rated voltage(V)]	【IEC】160V【UL】300V
[Rated current(A):]	【IEC】8A【UL】10A
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	IMCV 1.5/...-G-3.81 BCL-SMT 3.81/180 EC381CV 15EDGB-3.81 V7 3.81-Vertical MF204-3.81
