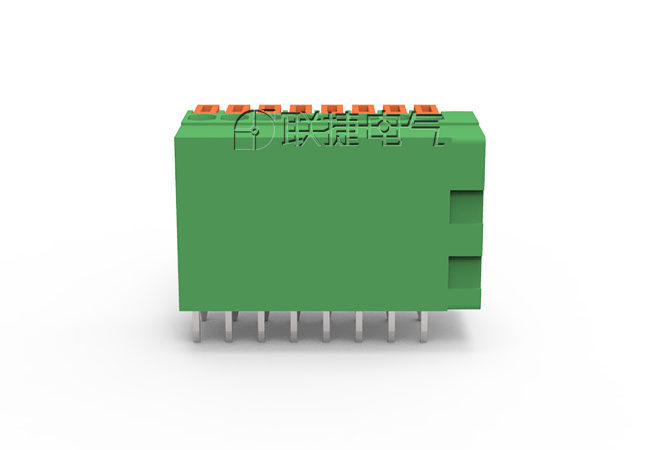

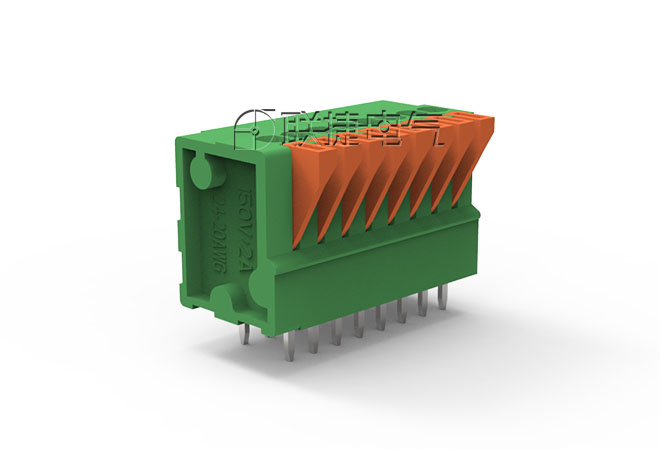

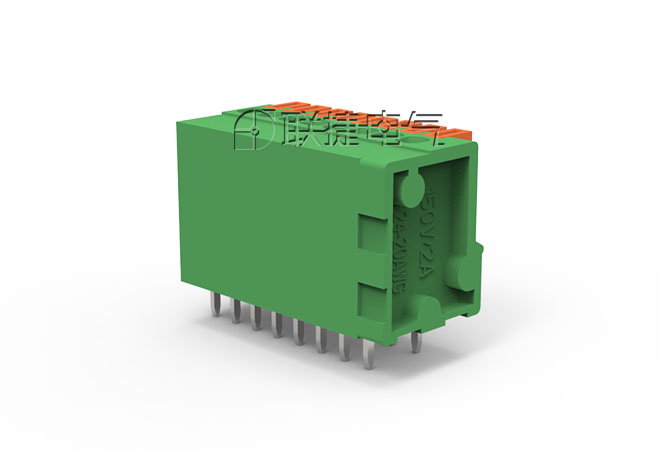

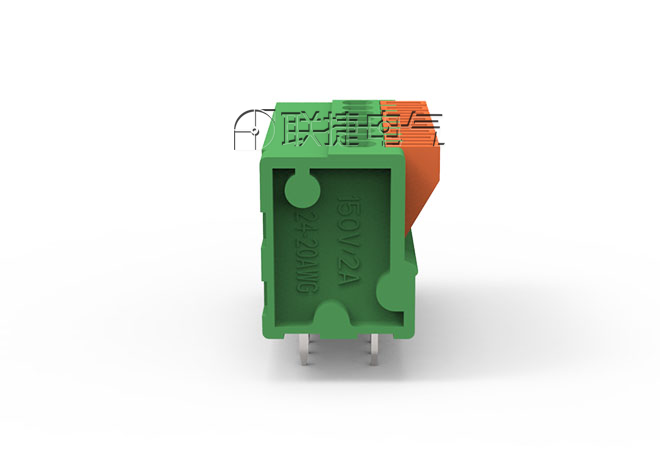

Location Home > PCB Spring Terminal > Pole 2.54/2.50 > LS141V-2.54

Description

Property

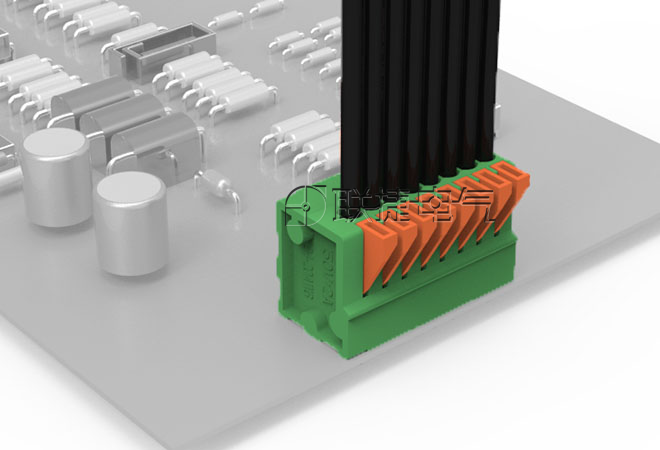

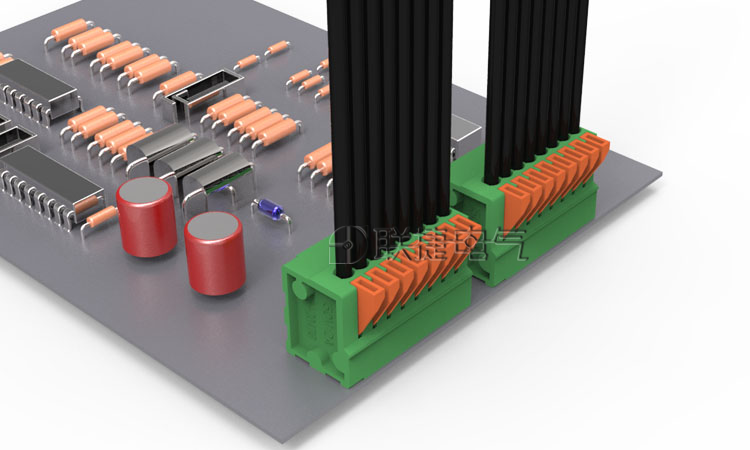

Scene

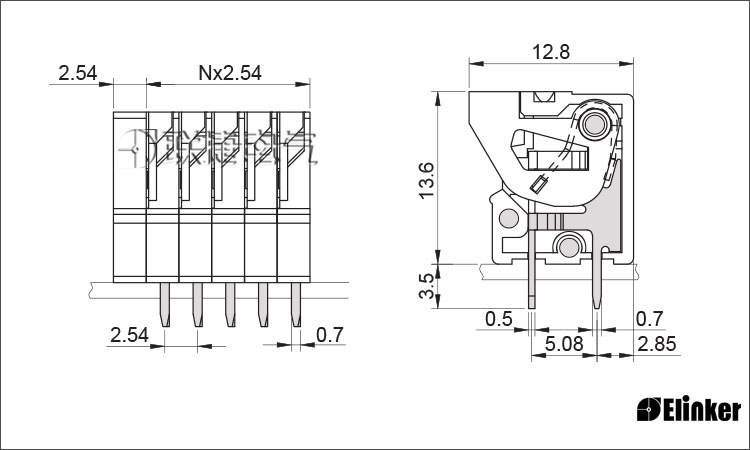

Drawings

Packing

优势

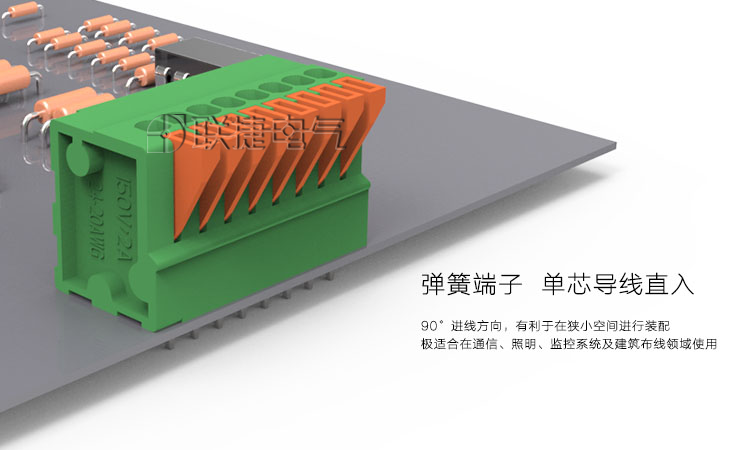

  90°进线，单片拼接，位数灵活；

无按键规格，结构高度低；

  可以连接截面积为1.0mm²的柔性导线；

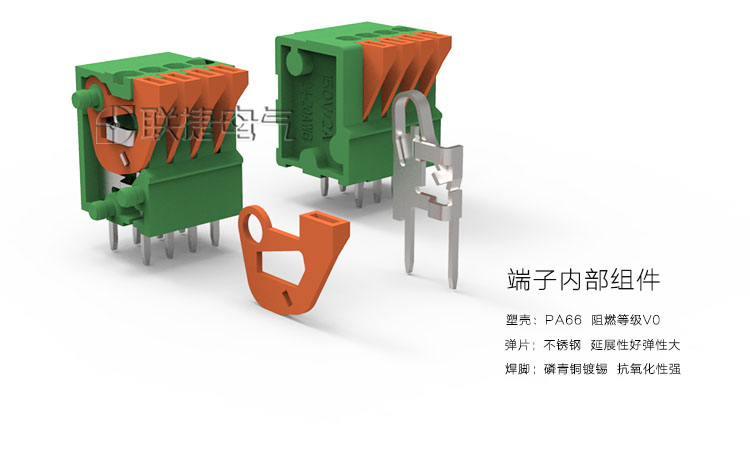

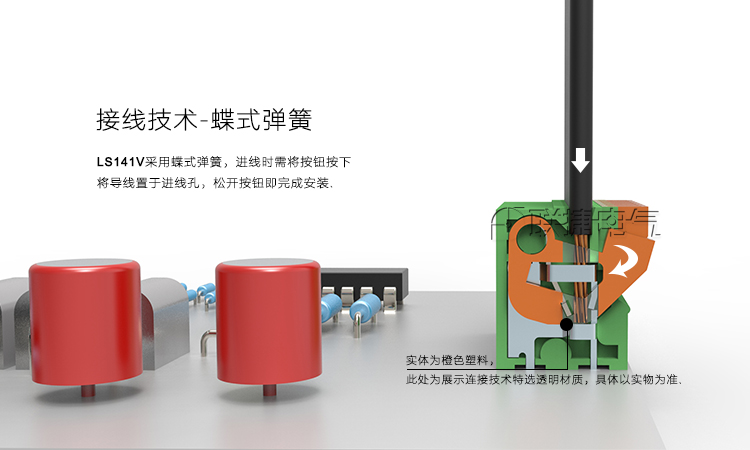

  碟式弹片连接，方便快捷。

Product Attribute

[Rated voltage(V)] 130V

[Rated current(A):] 13.5A

[Rated current(mm²):] 1.0

[Wire Size(AWG):] 24-20

[Strip length(mm):] 11

[Resistant voltage(kv):] 1.25

[Insulation Resistance:] PA/V0

[Terminal Block:] PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	130V
[Rated current(A):]	13.5A
[Rated current(mm²):]	1.0
[Wire Size(AWG):]	24-20
[Strip length(mm):]	11
[Resistant voltage(kv):]	1.25
[Insulation Resistance:]	PA/V0
[Terminal Block:]	PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	130V
[Rated current(A):]	13.5A
[Rated current(mm²):]	1.0
[Wire Size(AWG):]	24-20
[Strip length(mm):]	11
[Resistant voltage(kv):]	1.25
[Insulation Resistance:]	PA/V0
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
