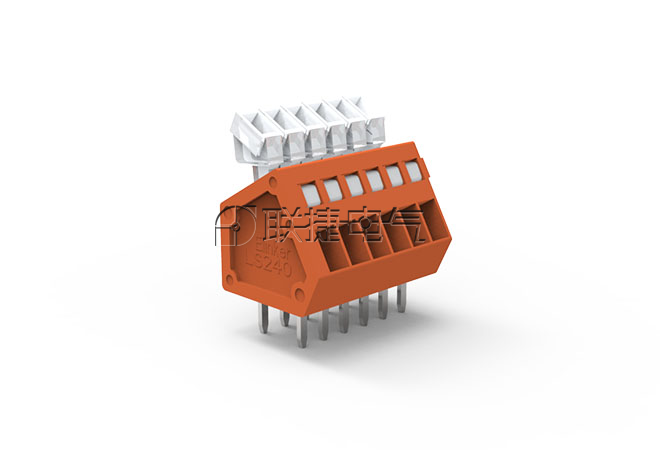

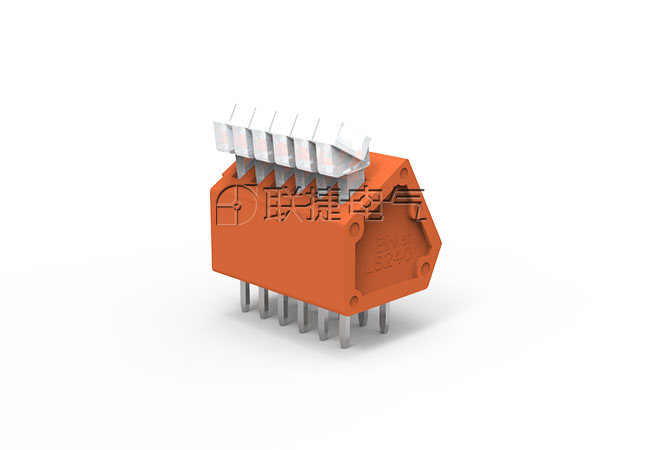

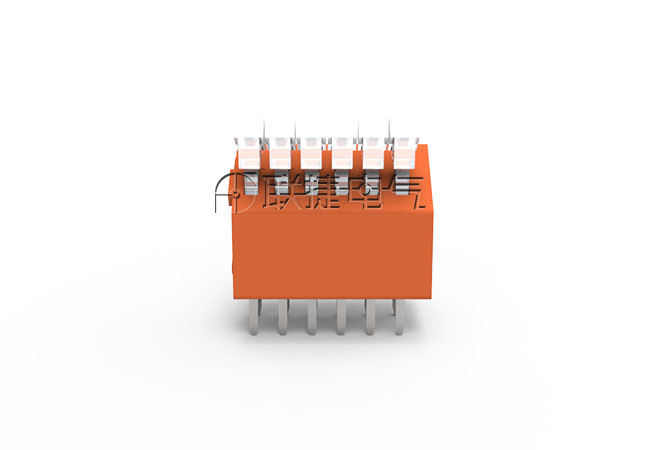

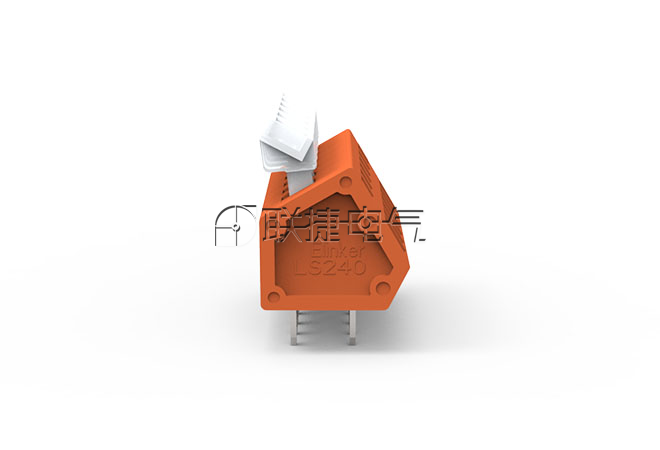

Location Home > PCB Spring Terminal > Pole 2.54/2.50 > LS240-2.5/2.54

Description

Property

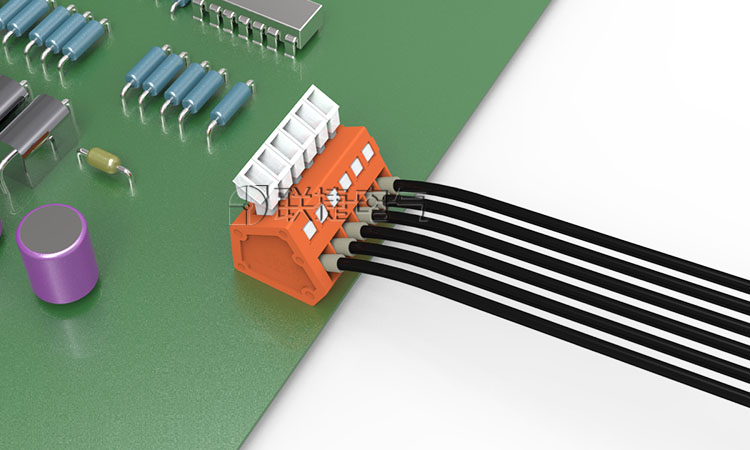

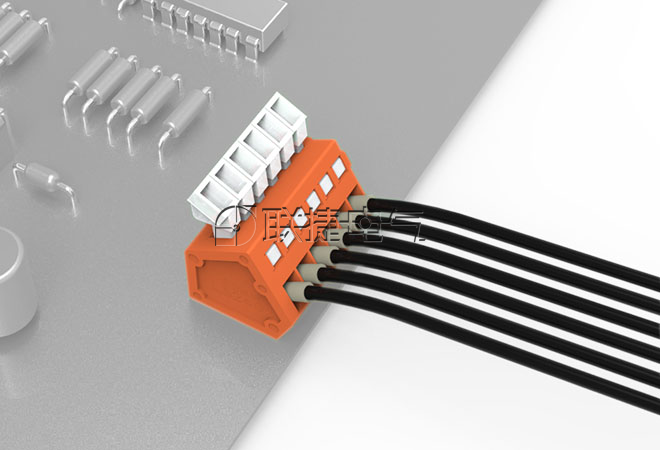

Scene

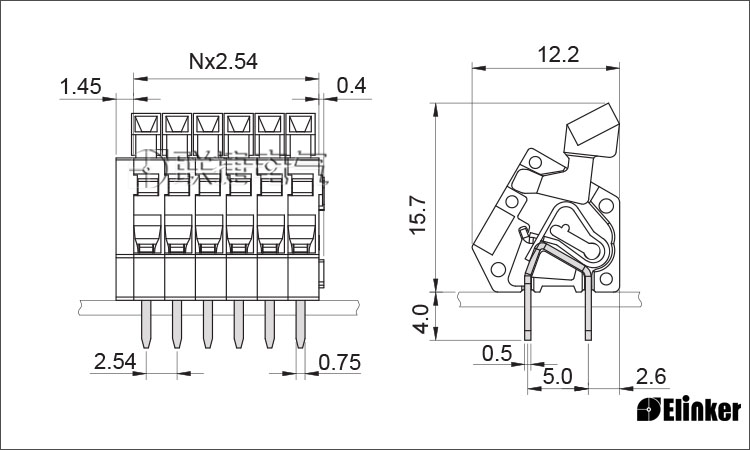

Drawings

Packing

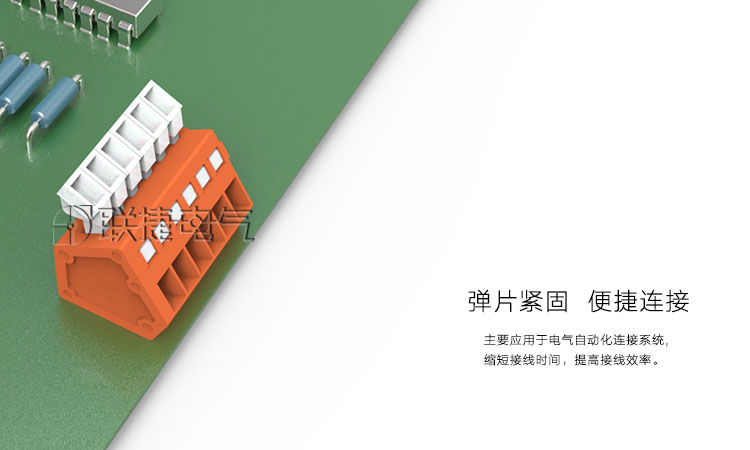

优势

45°进线，位数灵活；

可以连接截面积为0.5mm²的柔性导线；

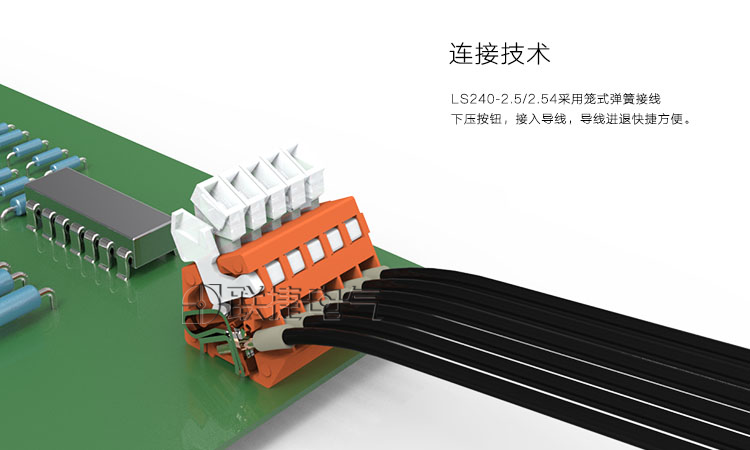

笼式弹簧紧固，连接方便快捷。

结构高度低，适应狭小装配空间。

Product Attribute

[Rated voltage(V)] 【IEC】130V【UL】150V

[Rated current(A):] 【IEC】6A【UL】4A

[Rated current(mm²):] 0.5

[Wire Size(AWG):] 28-20

[Strip length(mm):] 6

[Resistant voltage(kv):] 1.25

[Insulation Resistance:] PA/V0

[Terminal Block:] PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	【IEC】130V【UL】150V
[Rated current(A):]	【IEC】6A【UL】4A
[Rated current(mm²):]	0.5
[Wire Size(AWG):]	28-20
[Strip length(mm):]	6
[Resistant voltage(kv):]	1.25
[Insulation Resistance:]	PA/V0
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
