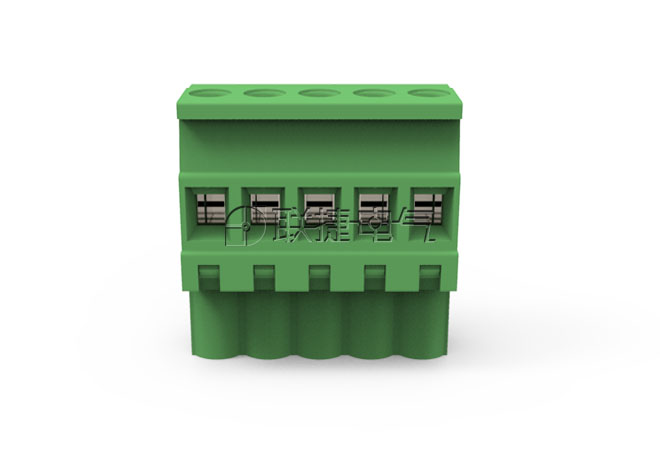

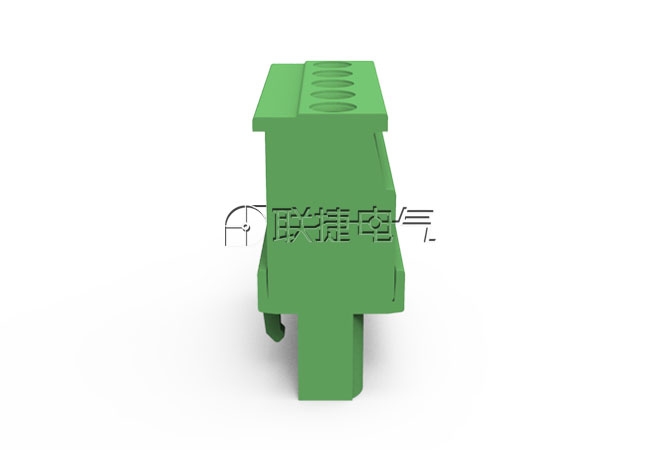

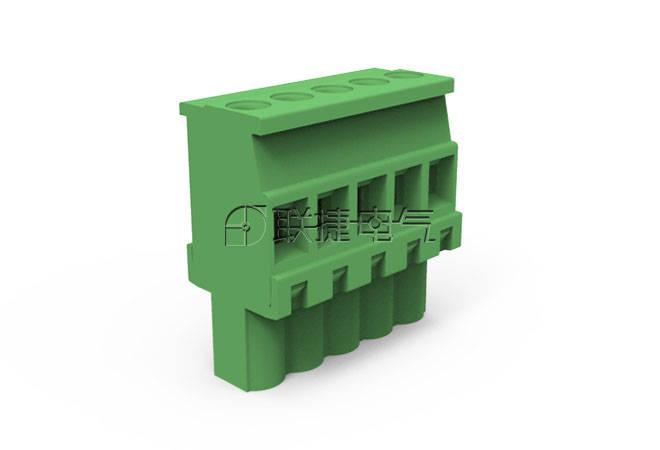

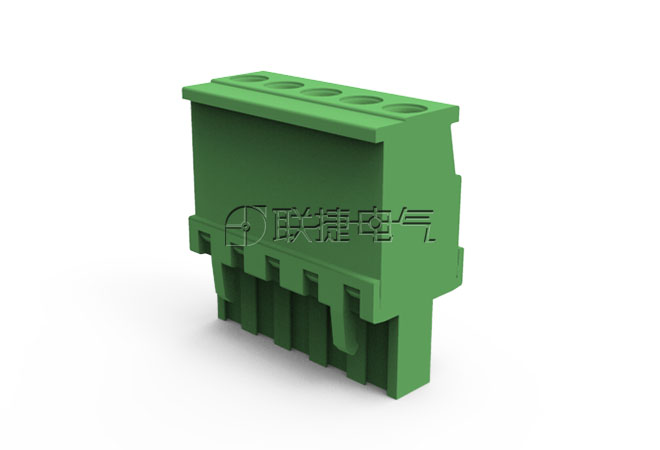

LC2B-5.08-5P-140



优势

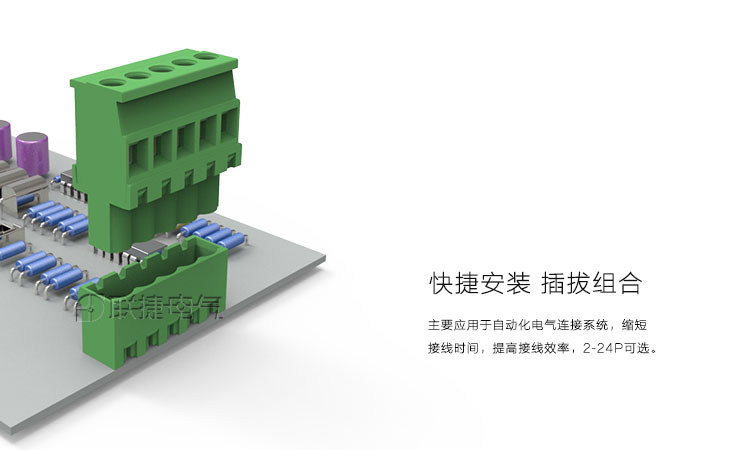

  插入方向垂直于导线，节省安装空间；

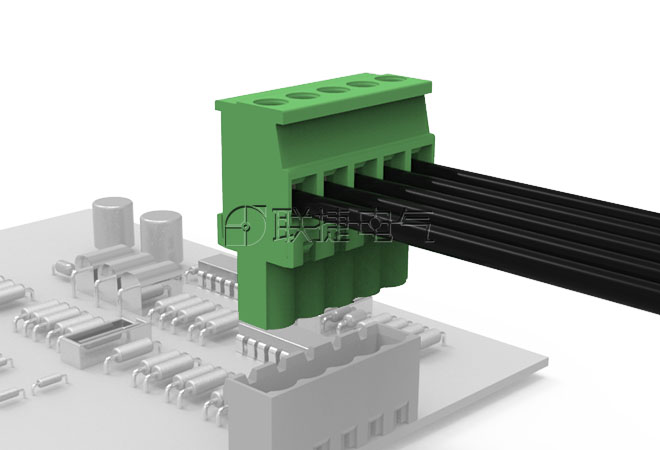

  导线接入方向垂直于插拔方向，导线免受挤压；

  可以连接截面积为2.5mm²的柔性导线；

  框式接线，安全可靠。

Product Attribute
[Rated voltage(V)]	320
[Rated current(A):]	17.5
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/VO
[Poles(P):]	2-24
[The same model]	MVSTBW 2.5/...-ST BLZP 5.00HC/270 SN 5ESDPL 2EDGKB-5.0 TS5.0-B MC210-E1 MVSTBW 2.5/...-ST BLZP 5.08HC/270 SN 2ESDPL 2EDGKB-5.08 TS5.08-B MC210-F1
