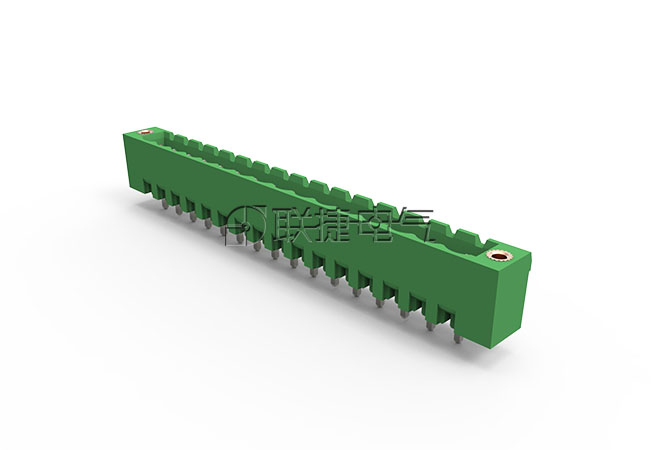

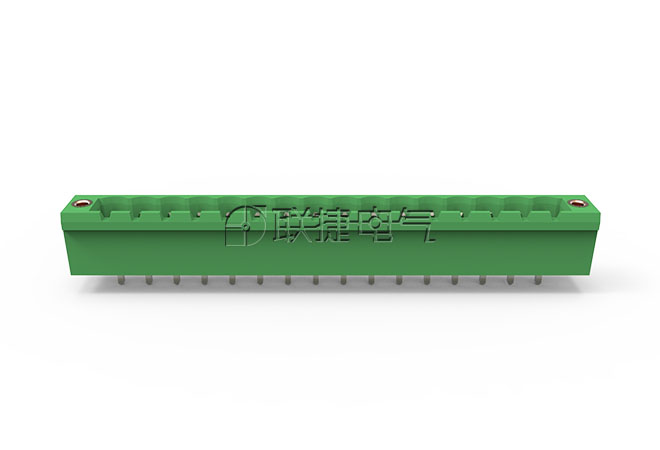

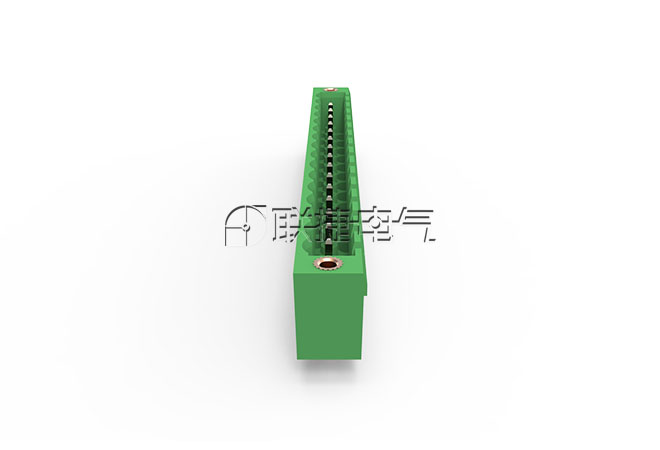

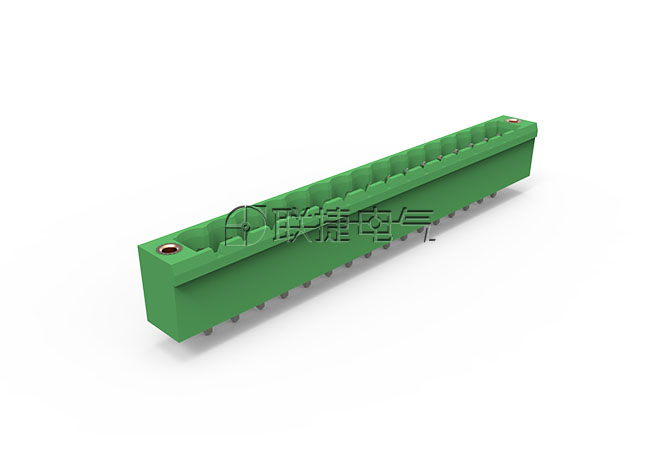

LZ1VM-5.08-16P-140

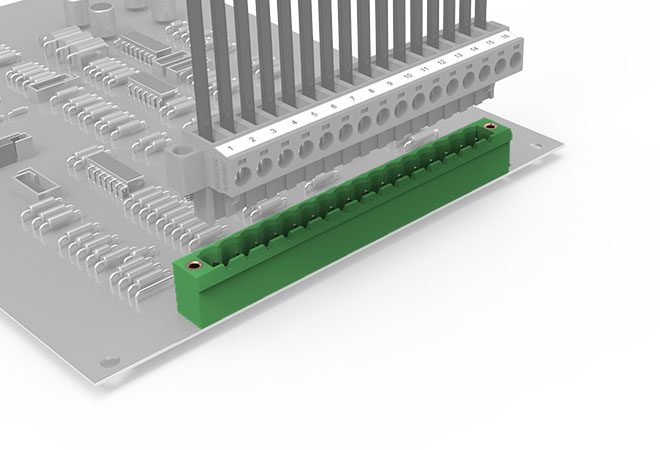

插拔式接线端子波峰焊示意图   PCB产品传统处理方式,PA材料塑件能耐受波峰焊接的高温.



优势





  插头插座紧密结合，节省空间；

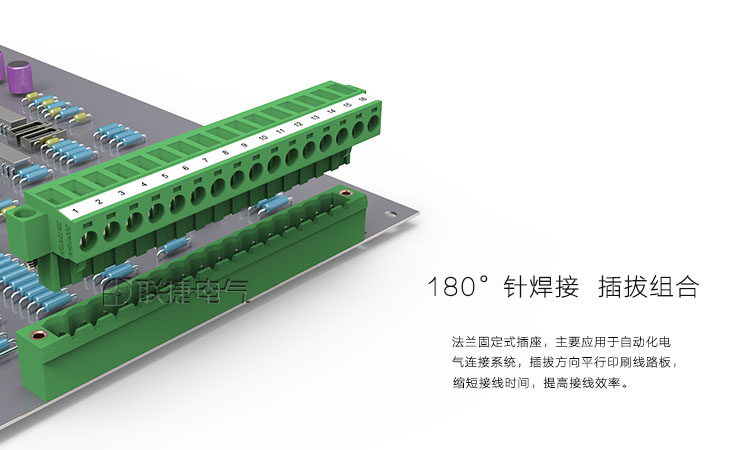

  焊针呈180°，电镀雾锡，可焊接于线路板；

  可定制，2-24P满足不同接线环境的需要；

  带法兰，连接安全牢固。

Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBV 2,5/16-GF-5,08 MSTBV2.5/16-GF-5.08 1777219 SL 5.08HC/16/180F 3.2SN OR BX SL5.08HC/16/180F 1147590000 SL 5.08HC/16/180F 3.2SN BK BX 1148920000 2EHDVM-16P 2EHDVM16P 2EDGVM-5.08-16P-14 2EDGVM-5.08-16P OQ-5.08-16P-180D W/F OQ1655500000G OQ-F/180D-5.08-16P 16 POS TERMI-BLOK HDR VERTICAL 16POSTERMI-BLOKHDRVERTICAL 1-796867-6 STLZ950/16F-5.08-V-绿色 50950166121D PTB750S-05-2-16-3 ME060-50816 F85-6-5.08-16P F856E1600051 PCB排针 8213 S / 16 GF OB 8213S/16GFOB 25.359.4653.0
