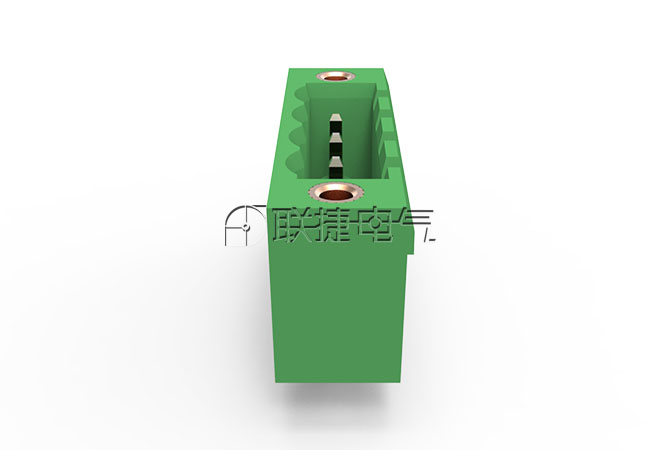

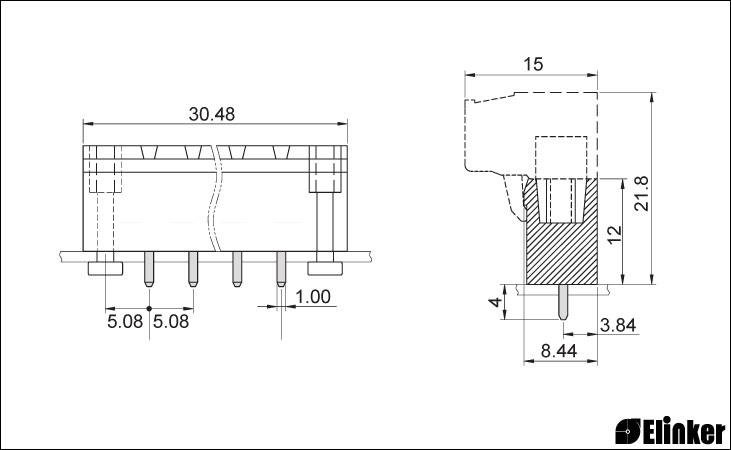

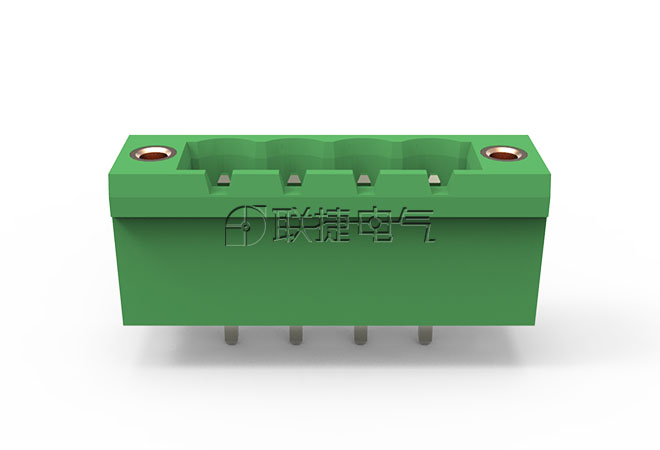

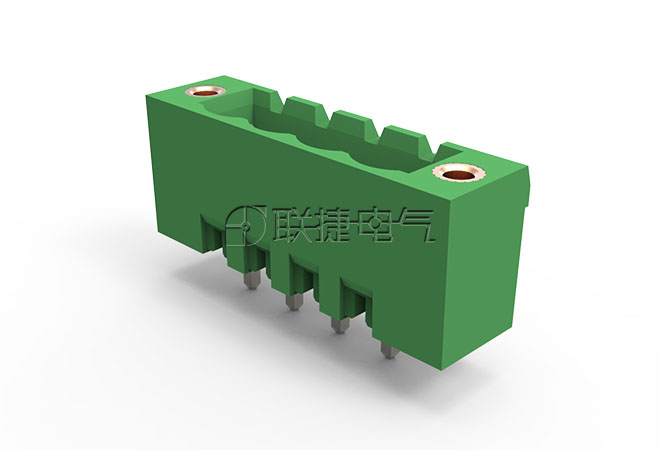

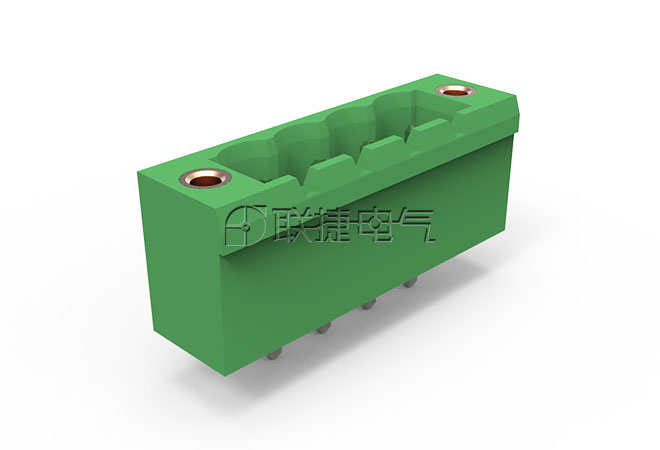

LZ1VM-5.08-4P-140

插拔式接线端子波峰焊示意图   PCB产品传统处理方式,PA材料塑件能耐受波峰焊接的高温.



优势

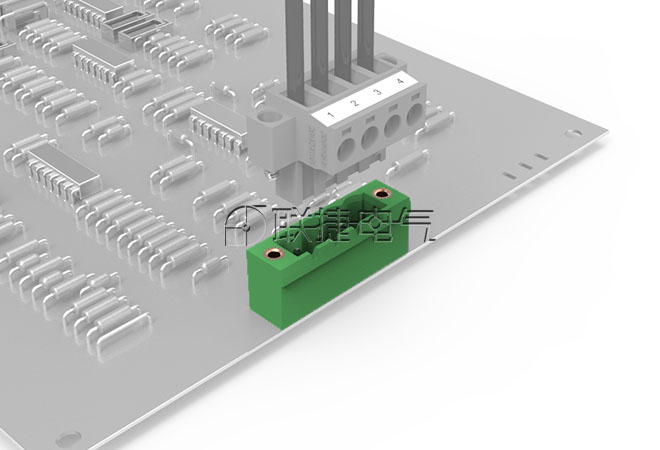

  插头插座紧密结合，节省空间；

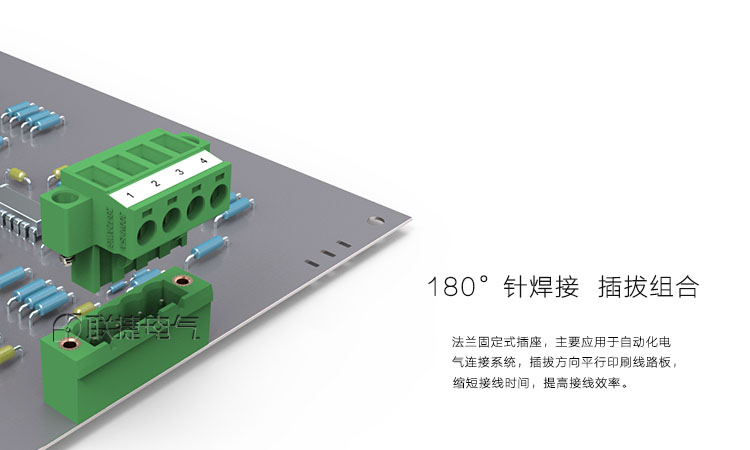

  焊针呈180°，电镀雾锡，可焊接于线路板；

  可定制，2-24P满足不同接线环境的需要；

  带法兰，连接安全牢固。

Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBV 2,5/ 4-GF-5,08 MSTBV2.5/4-GF-5.08 1777099 SL 5.08HC/04/180F 3.2SN OR BX SL5.08HC/04/180F 1147200000 SL 5.08HC/04/180F 3.2SN BK BX 1148540000 2EHDVM-04P 2EHDVM-4P 2EDGVM-5.08-04P-14 2EDGVM-5.08-4P OQ-5.08-4P-180D W/F OQ0455500000G OQ-F/180D-5.08-04P 4 POS TERMI-BLOK HDR VERTICAL 4POSTERMI-BLOKHDRVERTICAL 796867-4 STLZ950/4F-5.08-V-绿色 50950046121F PTB750S-05-2-04-3 ME060-50804 F85-6-5.08-04P F856E0400051 PCB排针 8213 S / 4 GF OB 8213S/4GFOB 25.359.3453.0
