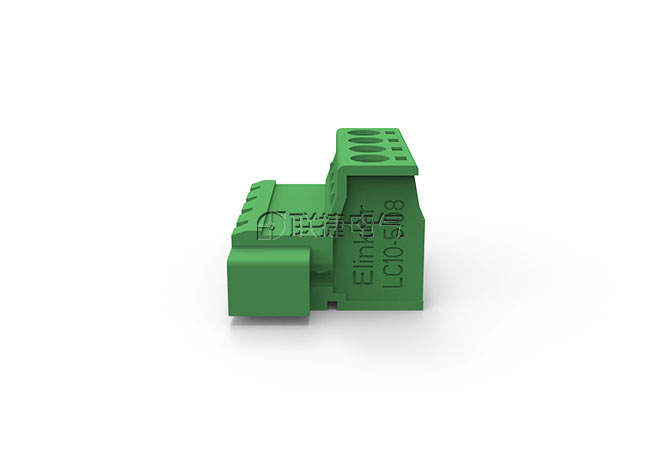

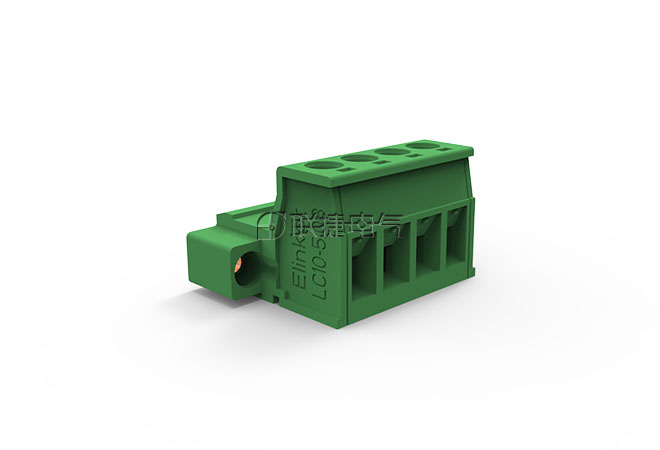

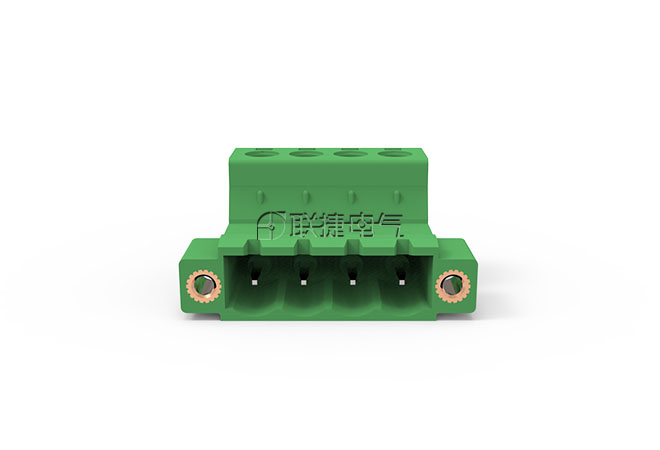

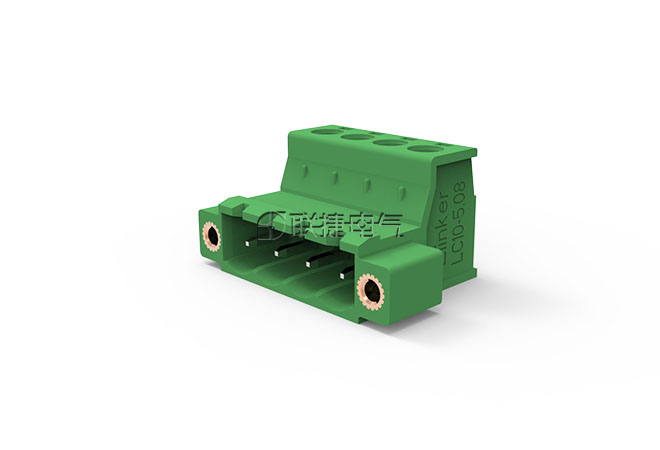

LC10MG-5.0/LC10MG-5.08



优势





  端子两侧有螺丝固定，连接更牢固；

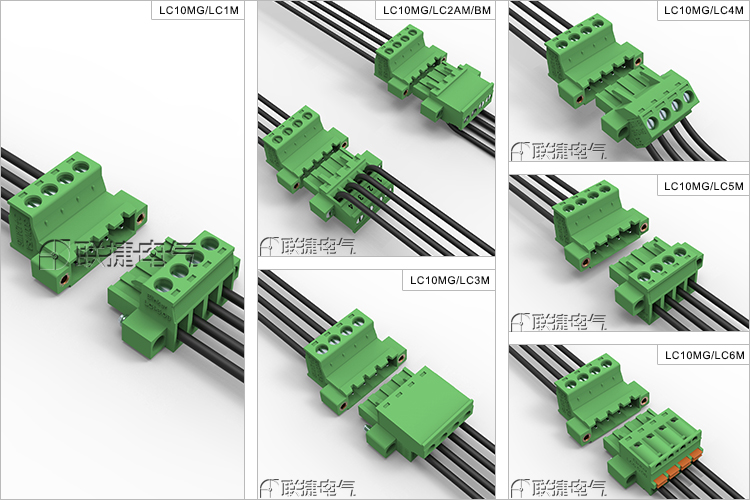

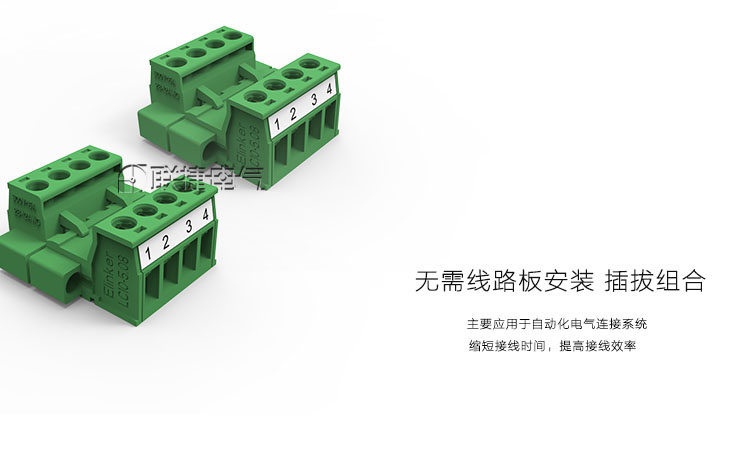

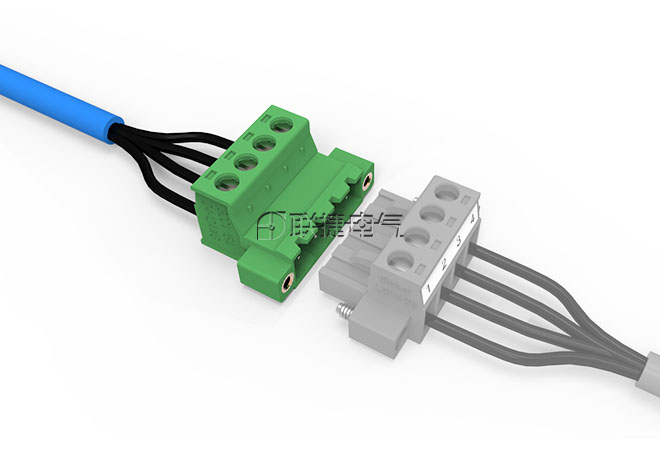

 无需线路板，直接与LC系列插头对插，提供多样的连接形式；

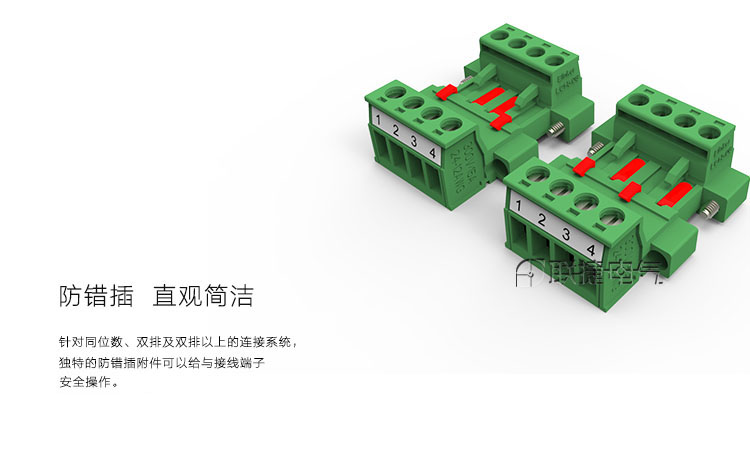

  通过防错插件对插头插座进行防错位保护；

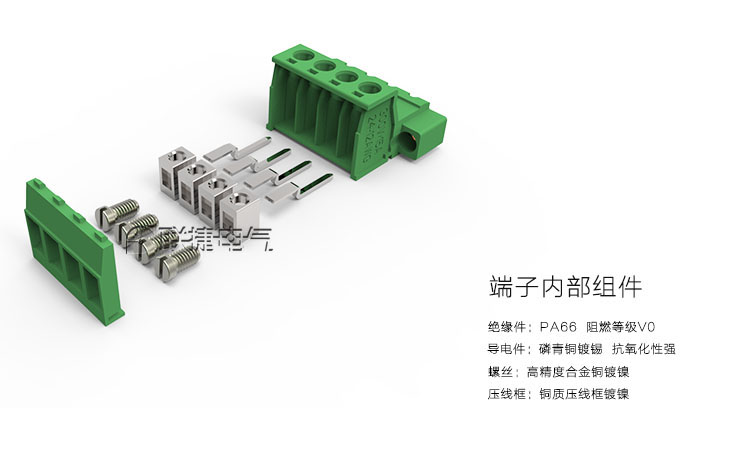

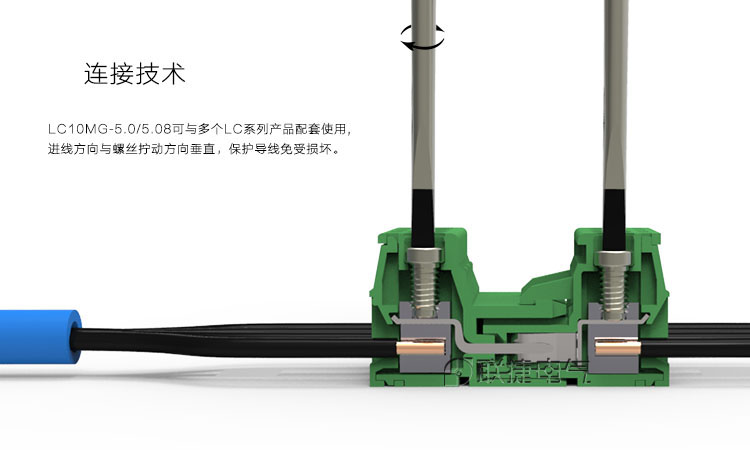

 压线框接线，导线进线方向与螺丝安装方向垂直，保护导线免受损伤。





Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V

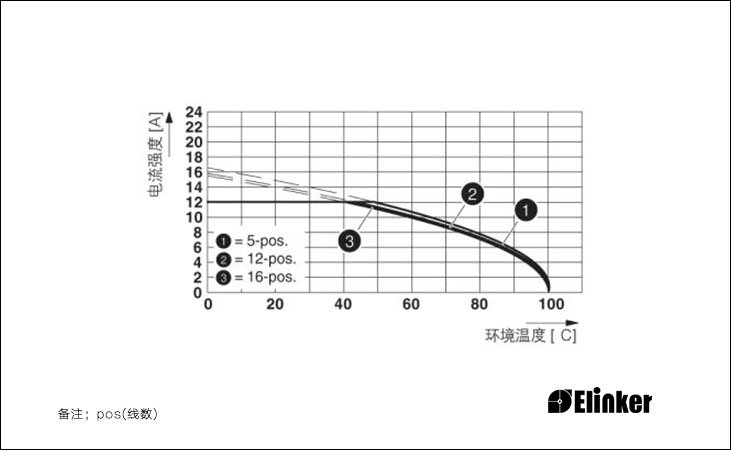

[Rated current(A):]	【IEC】12A【UL】15A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12【UL】30-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	10
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	SLS 5.08/180F 2ESDHM 2EDGKRP-5.08 V8 5.08 (Flange with nut)

Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12【UL】30-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	10
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	SLS 5.08/180F 2ESDHM 2EDGKRP-5.08 V8 5.08 (Flange with nut)
