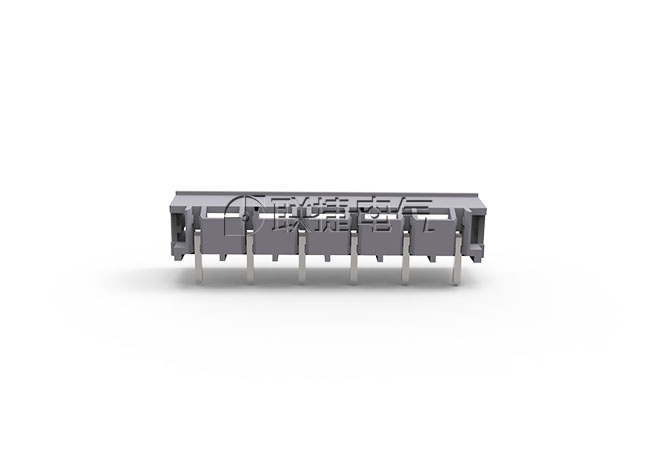

Location Home > PCB Spring Terminal > Pole 7.62/7.50 > LSZ1R-7.5

Assembly

LSC1-7.5

LSC1J-7.5

LSC1M-7.5

Description

Property

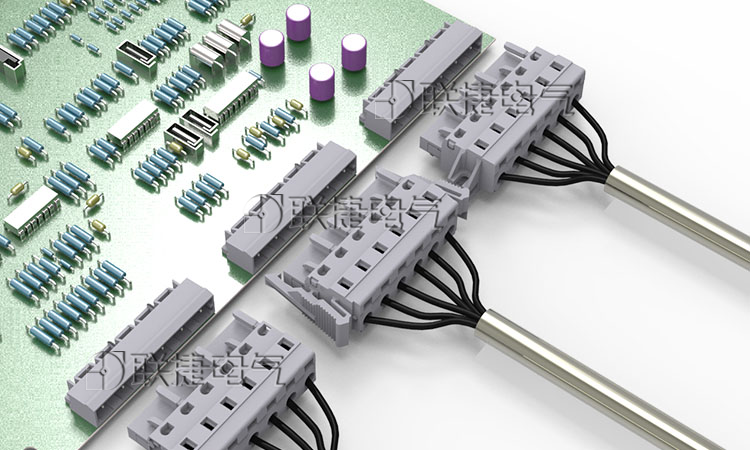

Scene

Drawings

Packing

优势

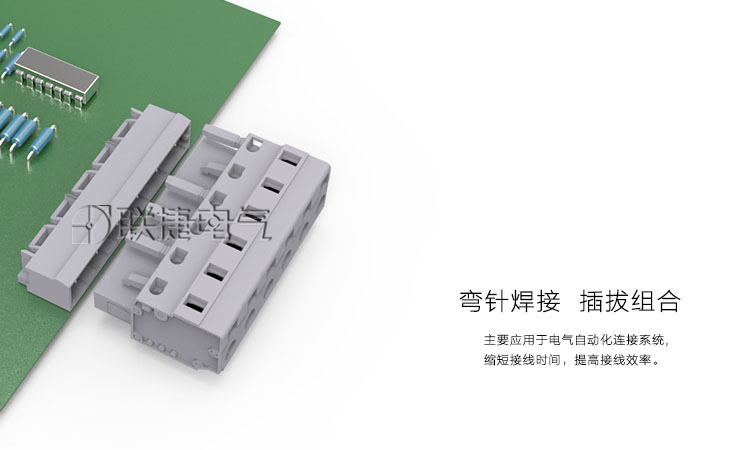

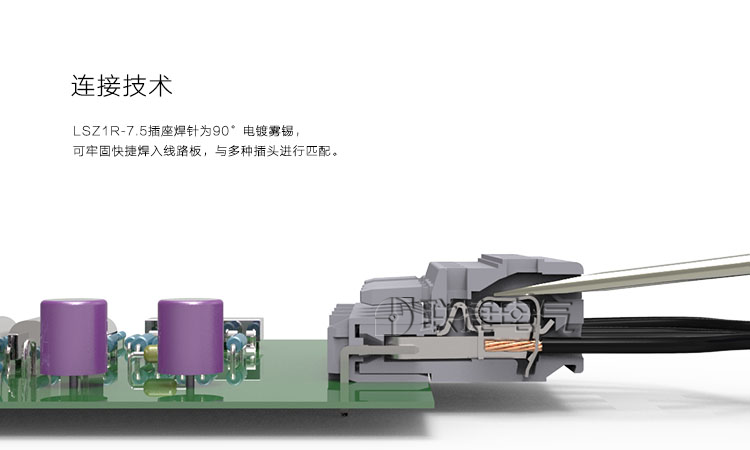

90°焊针角度，平行接线，位数灵活；

结构高度低，节省接线空间；

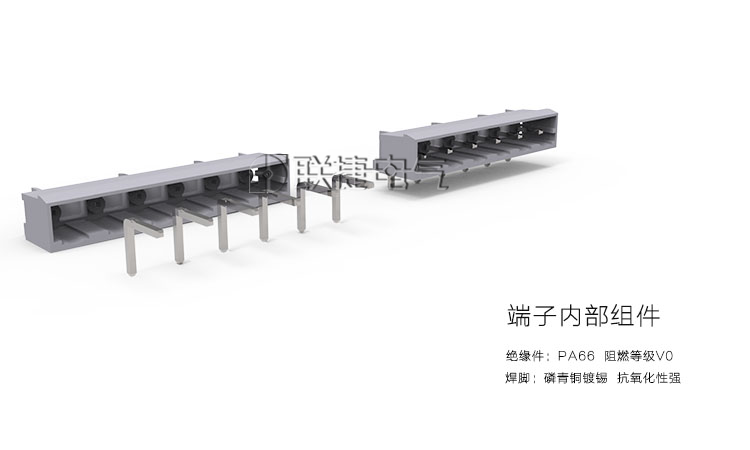

焊脚材质磷青铜镀锡，易焊接。

Product Attribute

[Rated voltage(V)] 【IEC】400V【UL】300V

[Rated current(A):] 【IEC】12A【UL】15A

[Resistant voltage(kv):] 6

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block

[Material] PA/V0

Product Attribute
[Rated voltage(V)]	【IEC】400V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Resistant voltage(kv):]	6
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
[Material]	PA/V0

Product Attribute
[Rated voltage(V)]	【IEC】400V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Resistant voltage(kv):]	6
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
[Material]	PA/V0
