Location Home > PCB Spring Terminal > Pole 7.62/7.50 > LSC1BM-7.62

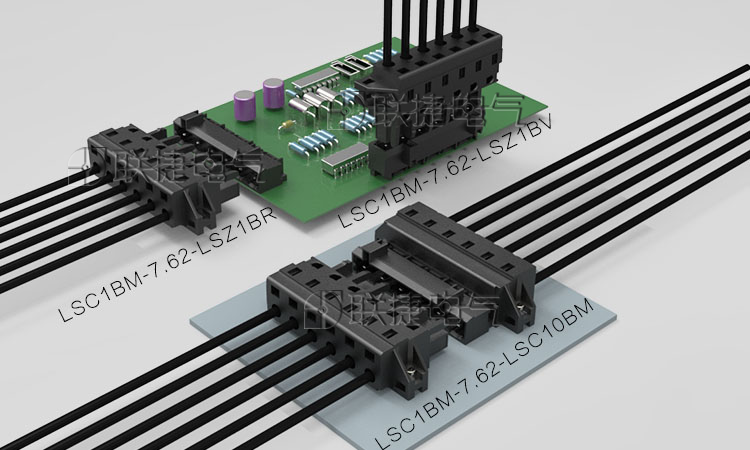

Assembly

LSC10BM-7.62

LSZ1BR-7.62

LSZ1BV-7.62

Description

Property

Scene

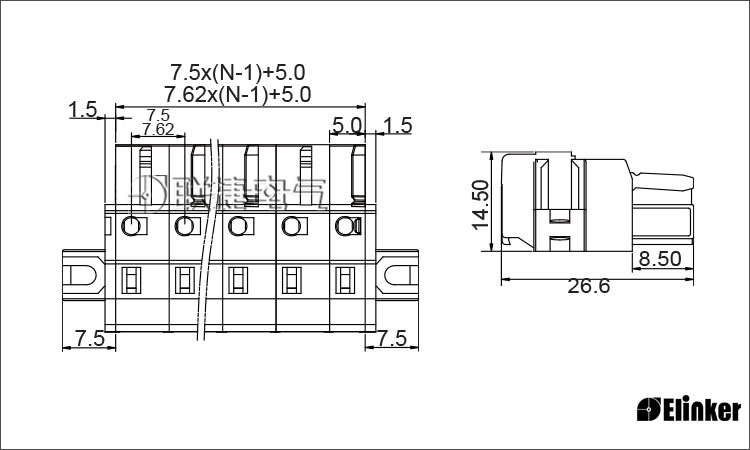

Drawings

Packing

优势

  自带防错插错位结构，接线牢固快捷；

单片拼接，位数灵活；

  结构高度低，利于安装；

  接线容量大，可以连接截面积为2.5mm²的柔性导线。

Product Attribute

[Rated voltage(V)] 【IEC】400V【UL】300V

[Rated current(A):] 【IEC】12A【UL】15A

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 28-12

[Single/multi-core diameter(mm²):] 0.08-2.5

[Strip length(mm):] 8

[Resistant voltage(kv):] 6

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	【IEC】400V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	28-12
[Single/multi-core diameter(mm²):]	0.08-2.5
[Strip length(mm):]	8
[Resistant voltage(kv):]	6
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
