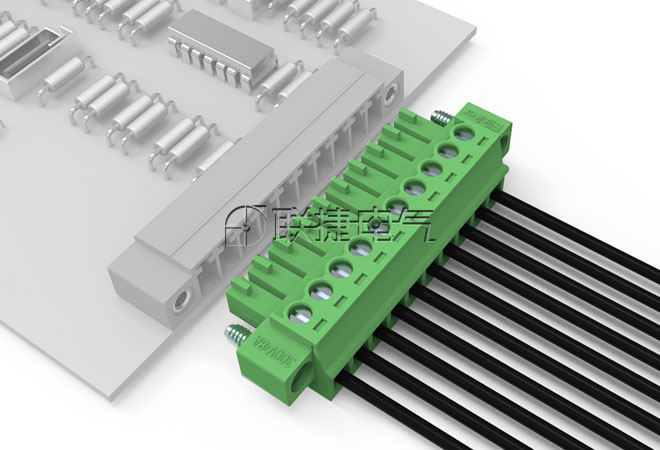

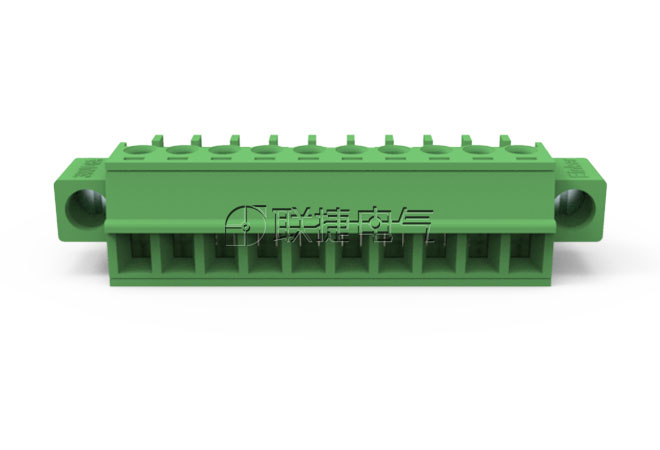

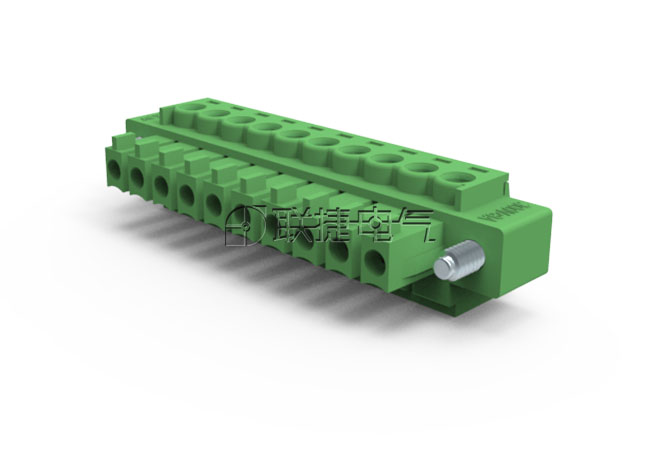

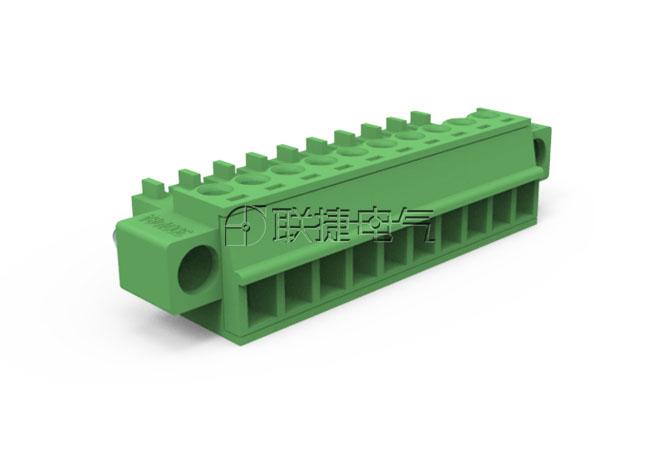

Location Home > PCB Pluggable terminal > LC 2-24P > LC1M-3.81 > LC1M-3.81-10P-140

Assembly

LZ5M-3.5/LZ5M-3.81

LZ1RM-3.5/LZ1RM-3.81

LZ1VM-3.5/LZ1VM-3.81

LZ3RHM-3.5/LZ3RHM-3.81

Description

Property

Scene

Drawings

Packing

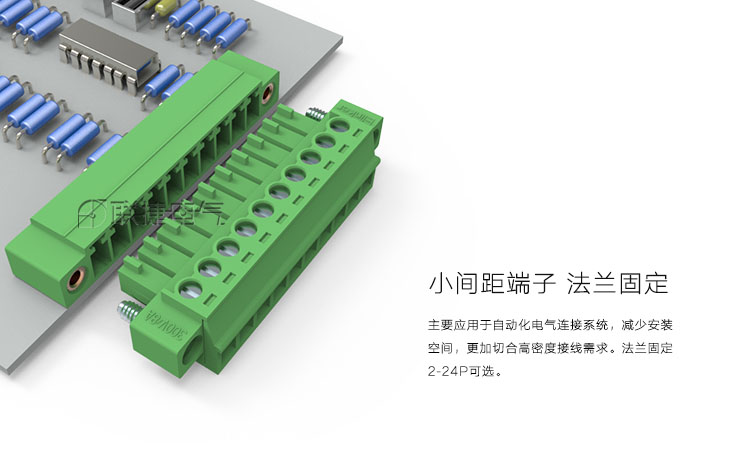

       优势

  间距小，节省空间；

  结构高度低；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  插头插座防错插防错位保护；

Product Attribute

[Temperature(℃):] -40℃~120℃

[Rated voltage(V)] 160V【IEC】300V【UL】

[Rated current(A):] 8A【IEC】8A【UL】

[Rated current(mm²):] 1.5

[Wire Size(AWG):] 28-16

[Single/multi-core diameter(mm²):] 0.08-0.5

[Maximum locking torque(Nm):] 0.22-0.25

[Screw:] M2

[Strip length(mm):] 7

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal PCB terminal block

[The same model] MC 1.5/…-STF-3.5 BL 3.50/180F MC-RA3.5H EC350VM 15EDGKM-3.5 TJ 3.5-With flange PTB350B-09 MC421-350 MC 1.5/…-STF-3.81 BCZ 3.81/180F EC381VM 15EDGKM-3.81 TJ 3.81 (With flange) PTB350B-11 MC421-381

[Material] PA66
