Location Home > Small and fix Terminal > H3802(2-24P) > H3802-20P-140

Description

Property

Scene

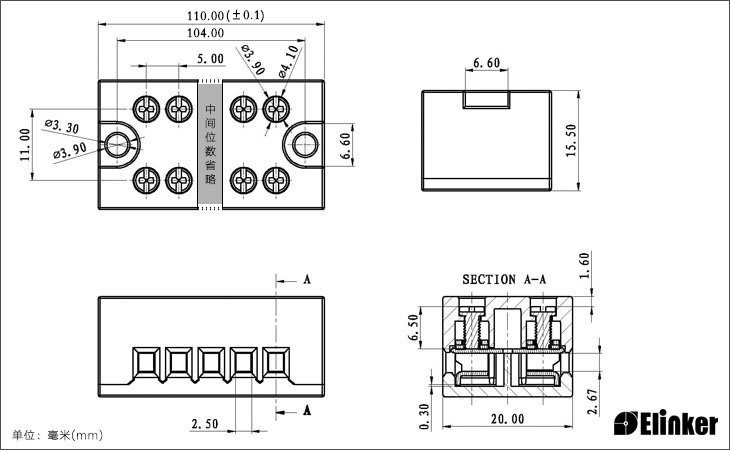

Drawings

Packing

Product Attribute

[Rated voltage(V)] 320V【IEC】300V【UL】

[Rated current(A):] 17.5A【IEC】15A【UL】

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 24-12

[Single/multi-core diameter(mm²):] 0.2-2.5

[Maximum locking torque(Nm):] 0.5-0.6

[Screw:] M3

[Strip length(mm):] 4

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24P

[Terminal Block:] Small and fix Terminal
