Location Home > PCB Spring Terminal > Pole 5.08/5.00 > LSZ1R-5.0

Assembly

LSC1-5.0

LSC1J-5.0

LSC1M-5.0

Description

Property

Scene

Drawings

Packing

优势

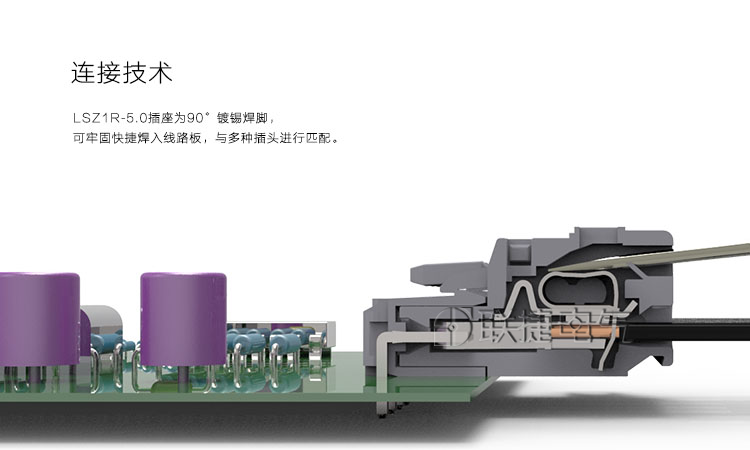

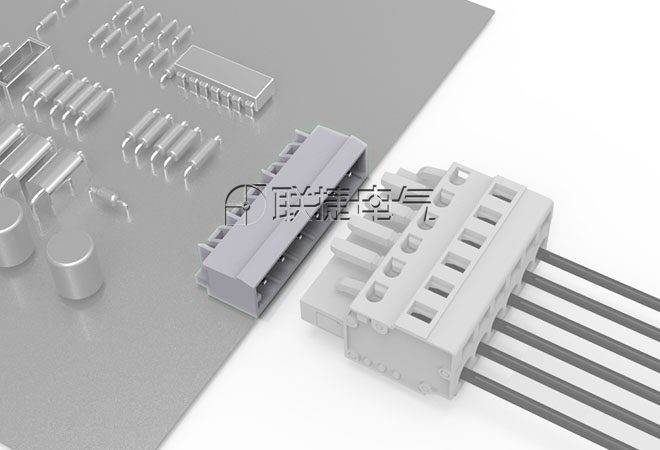

90°焊针角度，平行接线，位数灵活；

结构高度低，节省接线空间；

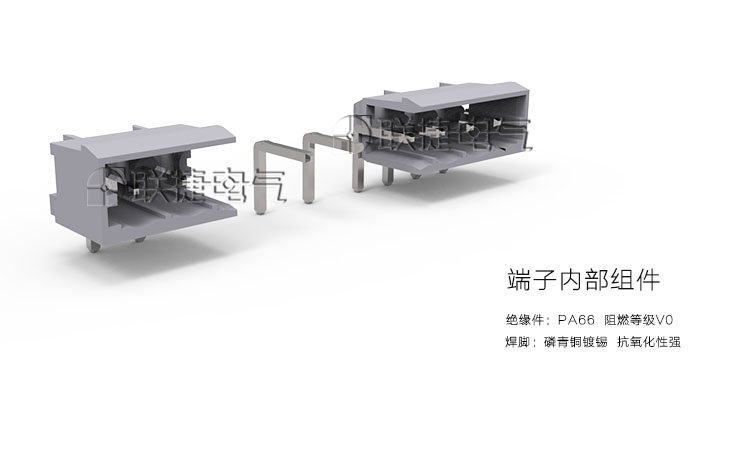

焊脚材质磷青铜镀锡，易焊接。

Product Attribute

[Rated voltage(V)] 【IEC】250V【UL】300V

[Rated current(A):] 【IEC】12A【UL】10A

[Resistant voltage(kv):] 4

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block

[Material] PA/V0
