LZ1RM-5.08-13P-140

插拔式接线端子波峰焊示意图   PCB产品传统处理方式,PA材料塑件能耐受波峰焊接的高温.



优势

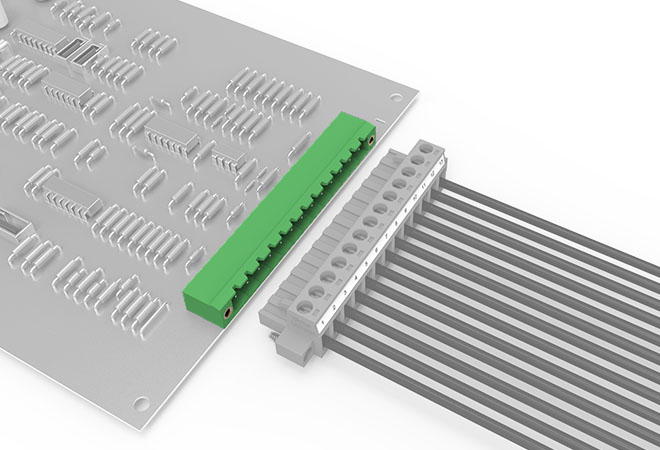

  插头插座紧密结合，节省空间；

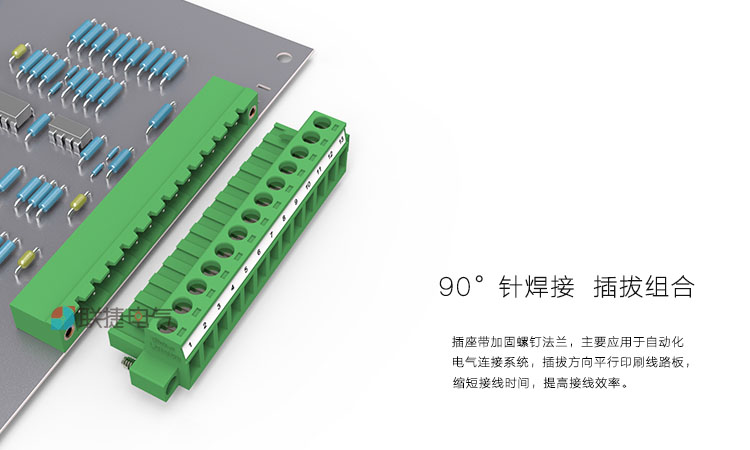

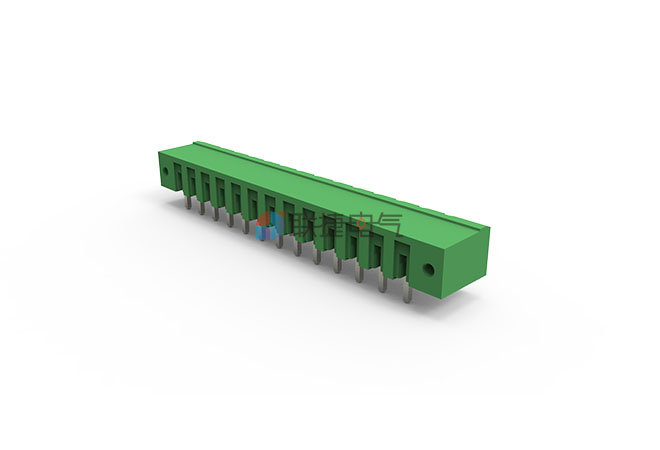

  焊针呈90°，电镀雾锡，可焊接于线路板；

  可定制，2-24P满足不同接线环境的需要；

  带法兰，连接安全牢固。



Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTB 2,5/13-GF-5,08 MSTB2.5/13-GF-5.08 1776618 SL 5.08HC/13/90F 3.2SN OR BX SL5.08HC/13/90F 1148980000 SL 5.08HC/13/90F 3.2SN BK BX 1150210000 2EHDRM-13P 2EHDRM13P 2EDGRM-5.08-13P-14 2EDGRM-5.08-13P OQ-5.08-13P-90D W/F OQ1355510000G OQ-F/90D-5.08-13P 13 POS TERMI-BLOK HDR RT ANGLE 13POSTERMI-BLOKHDRRTANGLE 1-796866-3 STLZ950/13F-5.08-H-绿色 50950136021D PTB750S-04-2-13-3 ME050-50813 F85-8-5.08-13P F858E1300051 PCB排针 8213 S / 13 WF OB 8213S/13WFOB 25.358.4353.0
