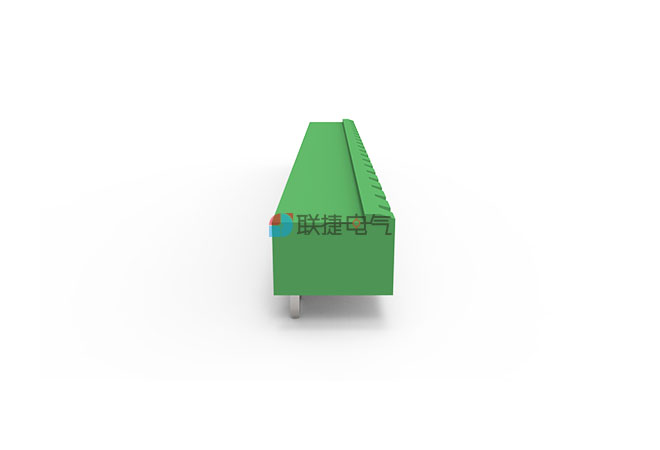

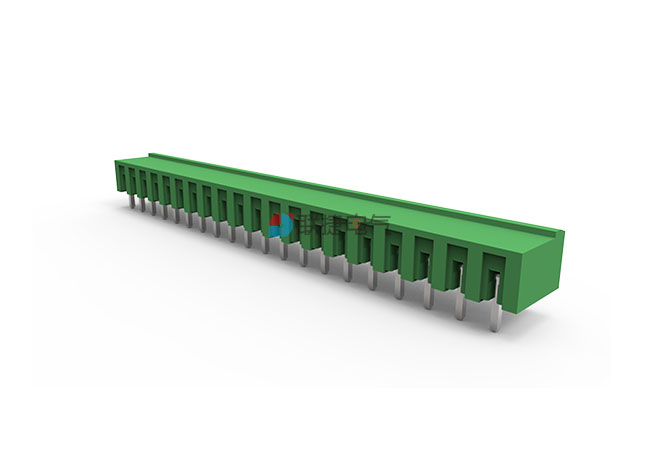

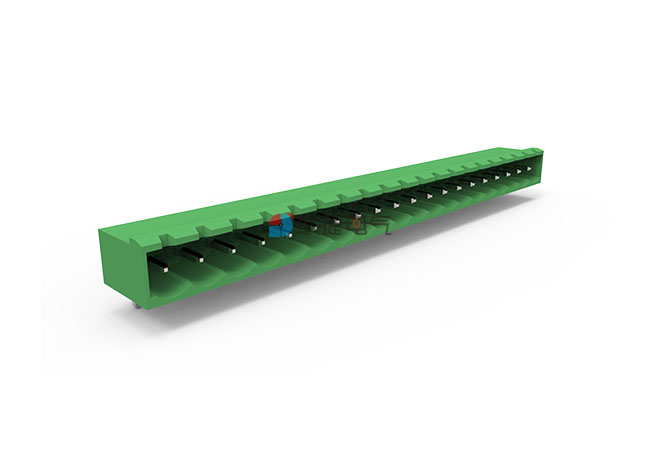

LZ1R-5.08-20P-140



       优势



  垂直型焊针,封闭型壳体,无安装螺丝；

  2-12P常备,最高可定制24P产品；

  通过防错插件对插头插座进行防错位保护。







Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	20p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBA 2,5/20-G-5.08 MSTBA2.5/20-G-5.08 1757420 SL 5.08HC/20/180 3.2SN OR BX SL5.08HC/20/180 1147880000 SL 5.08HC/20/90G 3.2SN BK BX 1155520000 2EHDRC-20P 2EHDRC-20P 2EDGRC-5.08-20P-14 2EDGRC-5.08-20P OQ-5.08-20P-90D Close OQ2054510000G OQ-C/90D-5.08-20P 20POS 5.08MM CE R/A HDR, TRM BLK 20POS5.08MMCER/AHDR.TRMBLK 2-796638-0 2-796639-0 STLZ950/20G-5.08-H-绿色 50950205021D PTB750S-02-2-20-3 ME030-50820 F85-7-5.08-20P F857E2000051 PCB排针 8213 S / 20 W OB 8213S/20WOB 25.352.5053.0

Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	20p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBA 2,5/20-G-5.08 MSTBA2.5/20-G-5.08 1757420 SL 5.08HC/20/180 3.2SN OR BX SL5.08HC/20/180 1147880000 SL 5.08HC/20/90G 3.2SN BK BX 1155520000 2EHDRC-20P 2EHDRC-20P 2EDGRC-5.08-20P-14 2EDGRC-5.08-20P OQ-5.08-20P-90D Close OQ2054510000G OQ-C/90D-5.08-20P 20POS 5.08MM CE R/A HDR, TRM BLK 20POS5.08MMCER/AHDR.TRMBLK 2-796638-0 2-796639-0 STLZ950/20G-5.08-H-绿色 50950205021D PTB750S-02-2-20-3 ME030-50820 F85-7-5.08-20P F857E2000051 PCB排针 8213 S / 20 W OB 8213S/20WOB 25.352.5053.0
