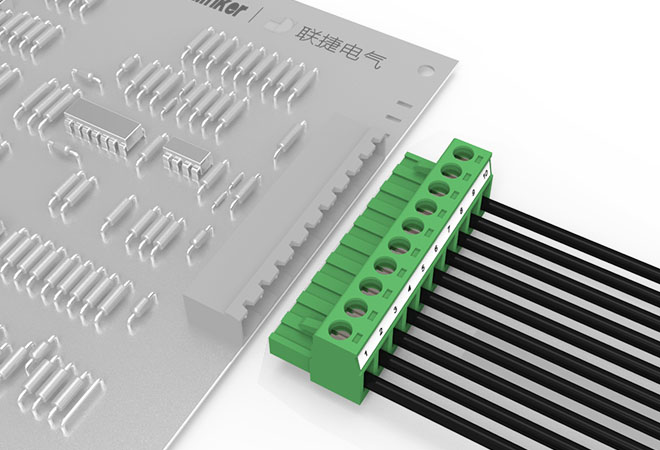

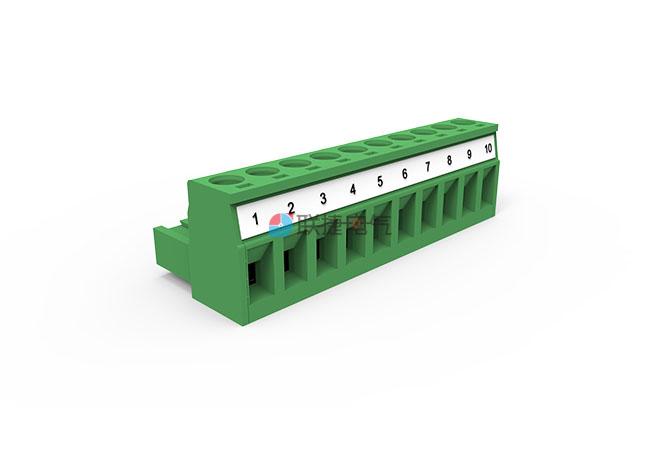

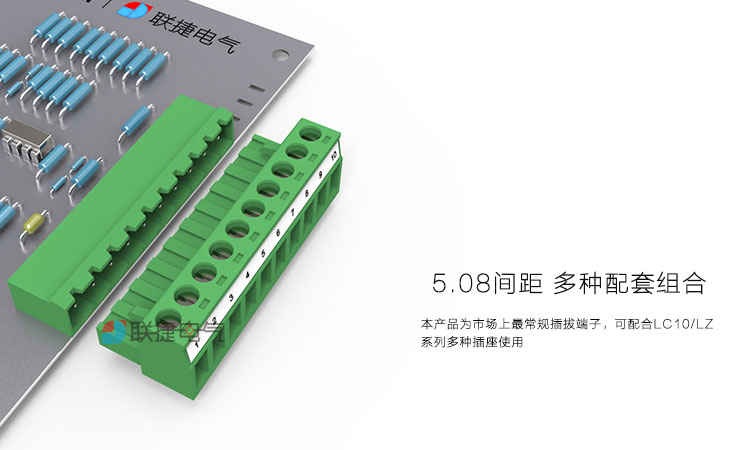

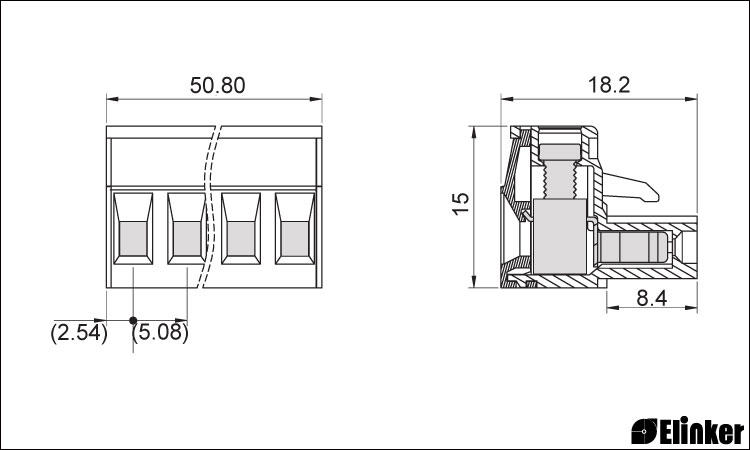

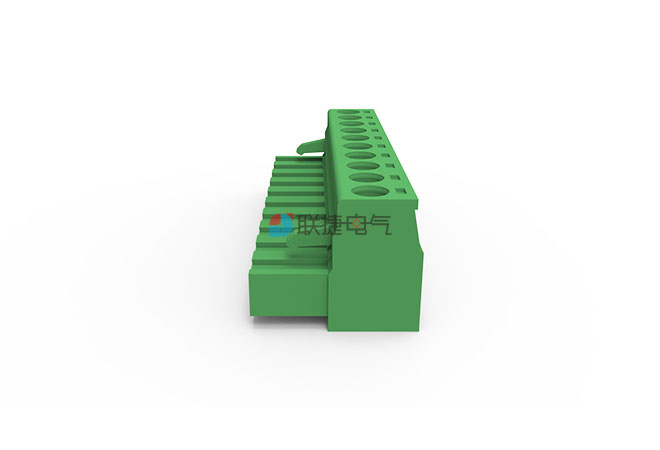

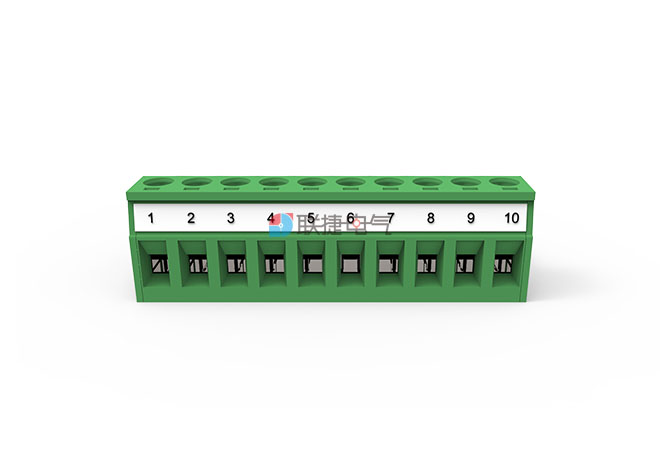

LC1-5.08-10P-140

插拔式接线端子压线方式示意图   将导线置于压线框内,拧紧螺丝,压线框随着螺丝拧紧的方向向上移动,最终固定.



       优势



  插头插座紧密结合，节省空间；

  180°进线，框式压线，防止导线受损；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  通过防错插件对插头插座进行防错位保护。





点击访问：       YL1-5.08        PT1-5.08





Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	10p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTB 2.5/…-ST BLZP 5.00HC/180 SN 5ESDV 2EDGK-5.0 TJ 5.0 MC100-500 MSTB 2.5/…-ST-5.08 BLZP 5.08HC/180 SN 2ESDV 2EDGK-5.08 TJ5.08 MC100-508

Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	10p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTB 2.5/…-ST BLZP 5.00HC/180 SN 5ESDV 2EDGK-5.0 TJ 5.0 MC100-500 MSTB 2.5/…-ST-5.08 BLZP 5.08HC/180 SN 2ESDV 2EDGK-5.08 TJ5.08 MC100-508
