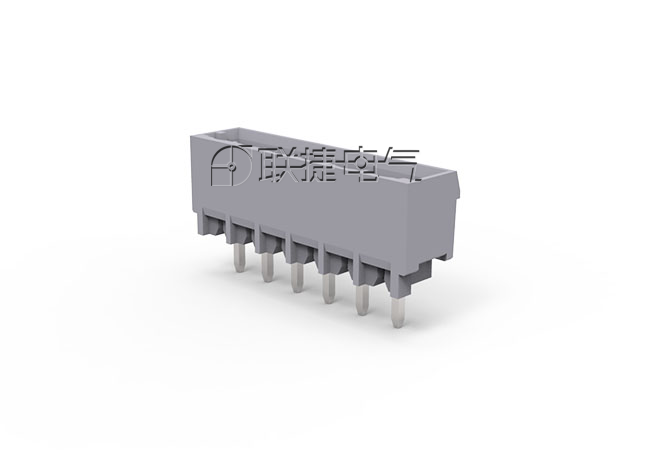

Location Home > PCB Spring Terminal > Pole 5.08/5.00 > LSZ1V-5.0

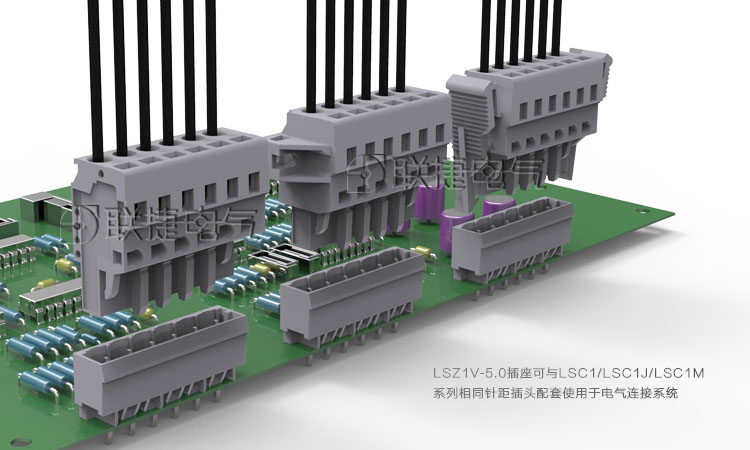

Assembly

LSC1-5.0

LSC1J-5.0

LSC1M-5.0

Description

Property

Scene

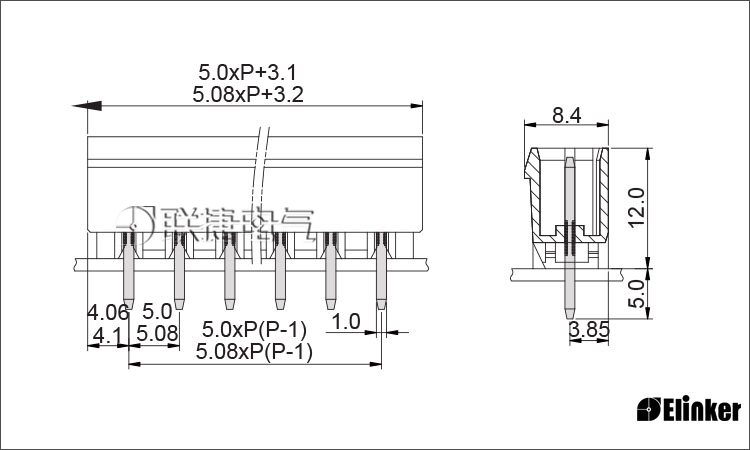

Drawings

Packing

优势

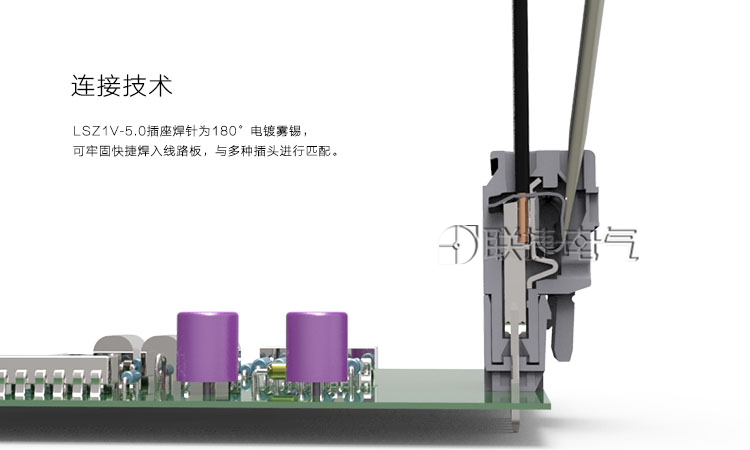

180°焊针角度，位数灵活；

垂直进线，有利于在狭小空间进行装配；

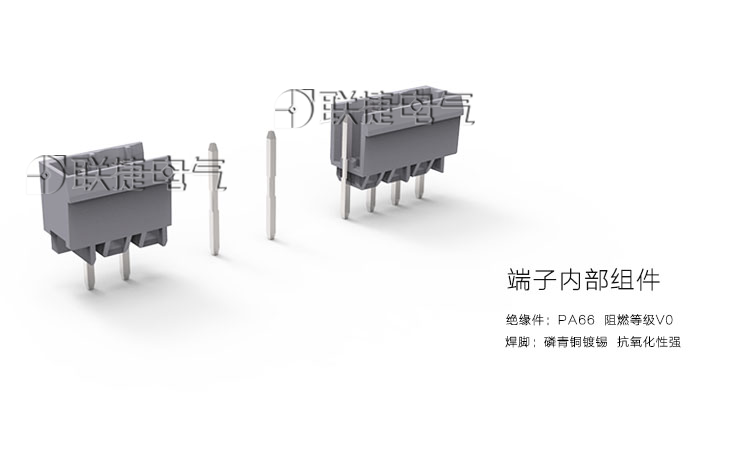

焊脚材质磷青铜镀锡，易焊接。

Product Attribute

[Rated voltage(V)] 【IEC】250V【UL】300V

[Rated current(A):] 【IEC】12A【UL】10A

[Resistant voltage(kv):] 4

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block

[Material] PA/V0

Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】10A
[Resistant voltage(kv):]	4
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
[Material]	PA/V0
