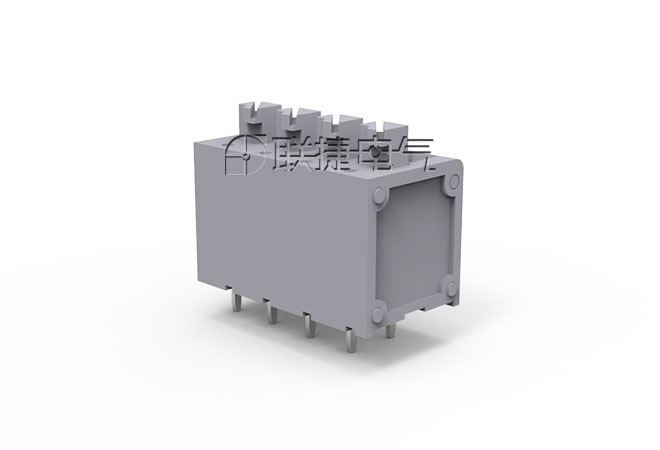

Location Home > PCB Spring Terminal > Pole 5.08/5.00 > LS236-3.81/5.0

Description

Property

Scene

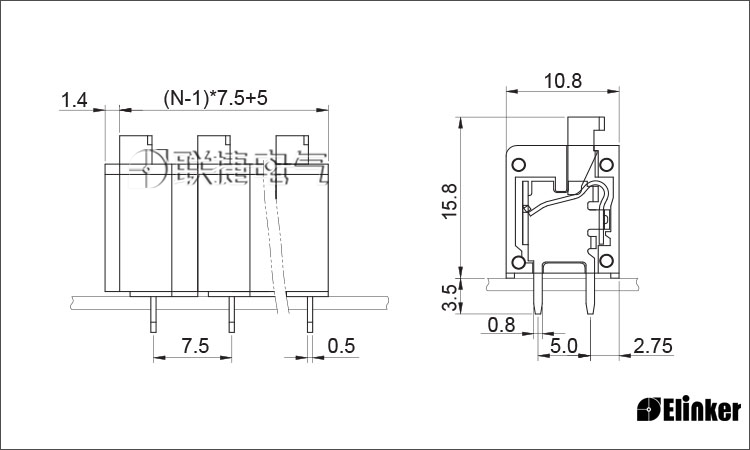

Drawings

Packing

优势

  垂直进线，位数灵活；

  可以连接截面积为1.5mm²的柔性导线；

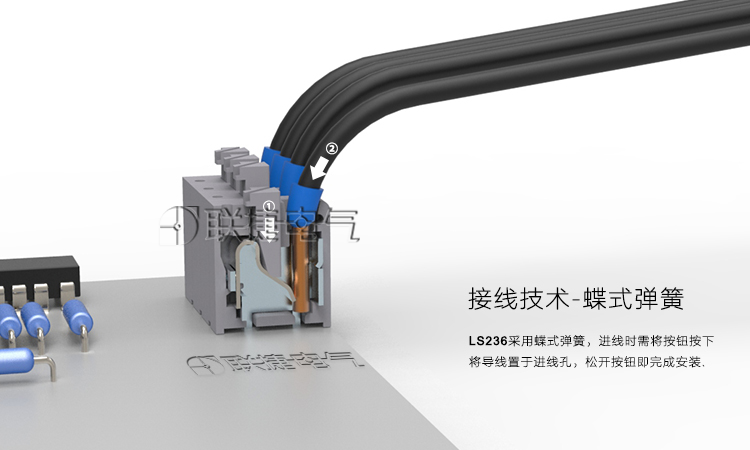

  蝶式弹片连接，方便快捷。

结构高度低，适应狭小装配空间。

Product Attribute

[Rated voltage(V)] 【IEC】200V【UL】300V

[Rated current(A):] 【IEC】10A【UL】8A

[Rated current(mm²):] 1.5

[Wire Size(AWG):] 20-16

[Strip length(mm):] 10

[Resistant voltage(kv):] 2

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	【IEC】200V【UL】300V
[Rated current(A):]	【IEC】10A【UL】8A
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	20-16
[Strip length(mm):]	10
[Resistant voltage(kv):]	2
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
