Location Home > PCB Spring Terminal > Pole 7.50/5.00 > LS235W-5.0

Description

Property

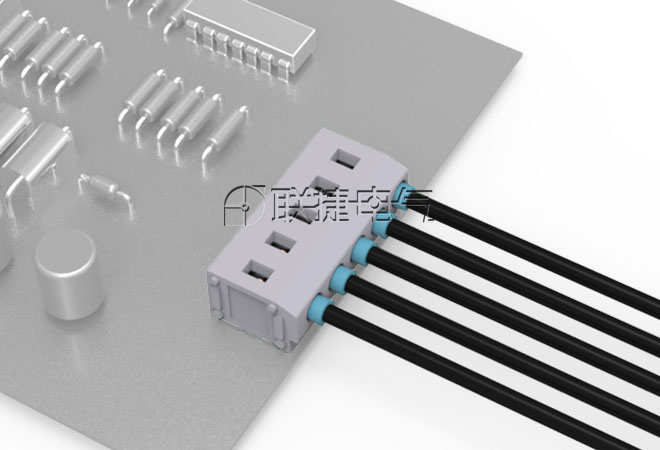

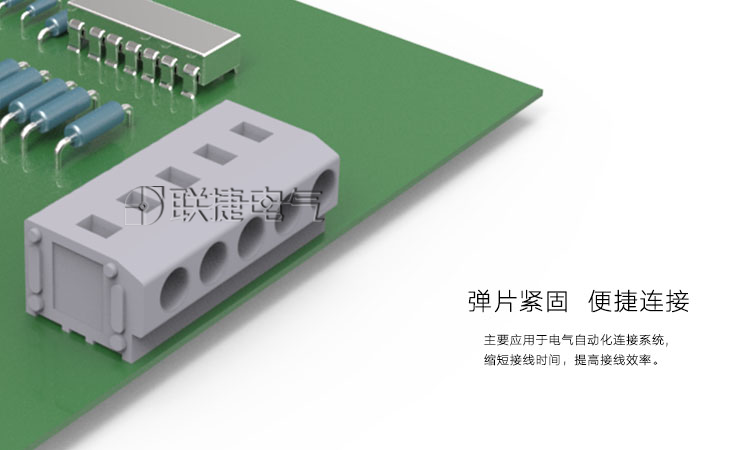

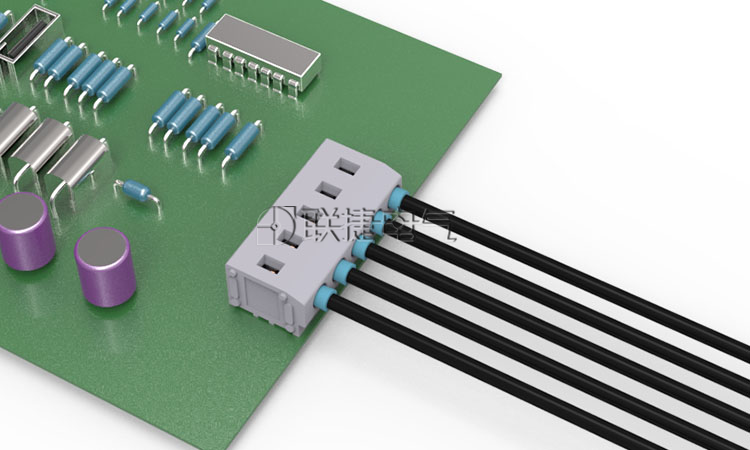

Scene

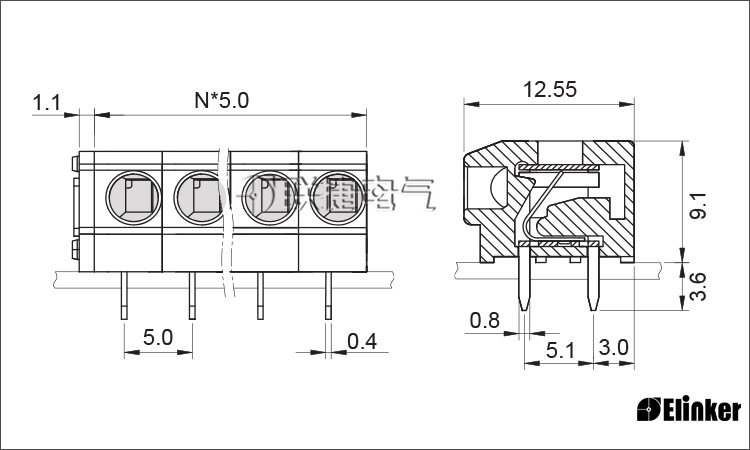

Drawings

Packing

优势

  180°进线方向，位数灵活；

无按键规格，结构高度低；

  可以连接截面积为1.5mm²的柔性导线；

  碟式弹片紧固，接线方便快捷。

Product Attribute

[Rated voltage(V)] 【IEC】250V【UL】300V

[Rated current(A):] 【IEC】10A【UL】5A

[Rated current(mm²):] 1.5

[Wire Size(AWG):] 20-18

[Strip length(mm):] 10

[Resistant voltage(kv):] 2

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block
