Location Home > PCB Spring Terminal > Pole 7.50/5.00 > LS245-5.0/7.5

Description

Property

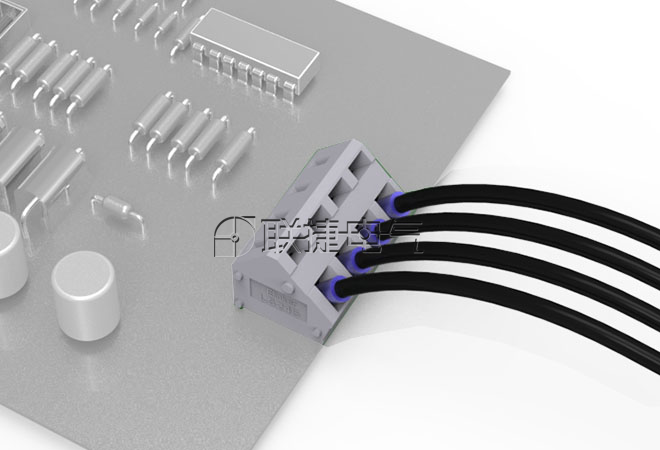

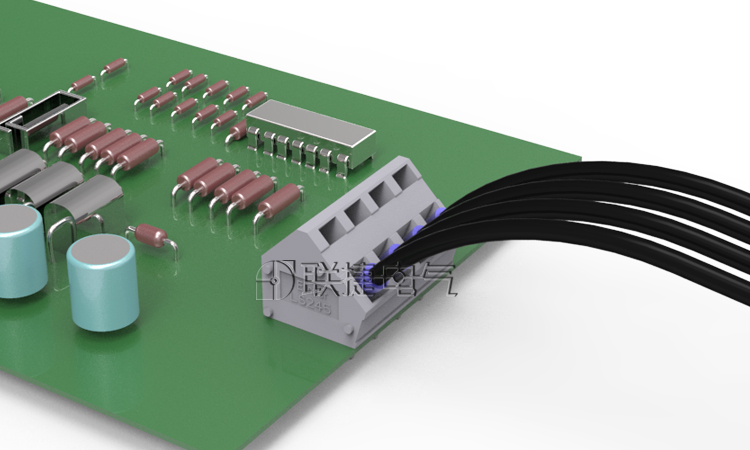

Scene

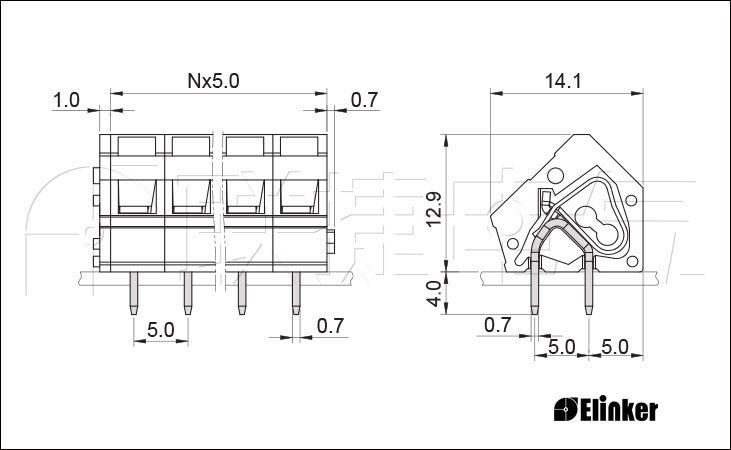

Drawings

Packing

优势

  45°进线方向，位数灵活；

无按键规格，结构高度低；

  可以连接截面积为2.5mm²的柔性导线；

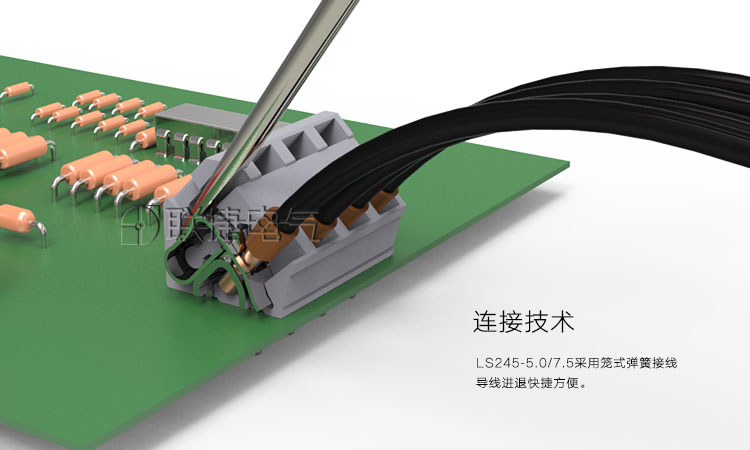

  笼式弹片连接，方便快捷。

Product Attribute

[Rated voltage(V)] 450V

[Rated current(A):] 17A

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 28-12

[Strip length(mm):] 6

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	450V
[Rated current(A):]	17A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	28-12
[Strip length(mm):]	6
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
