LC1M-3.96



优势

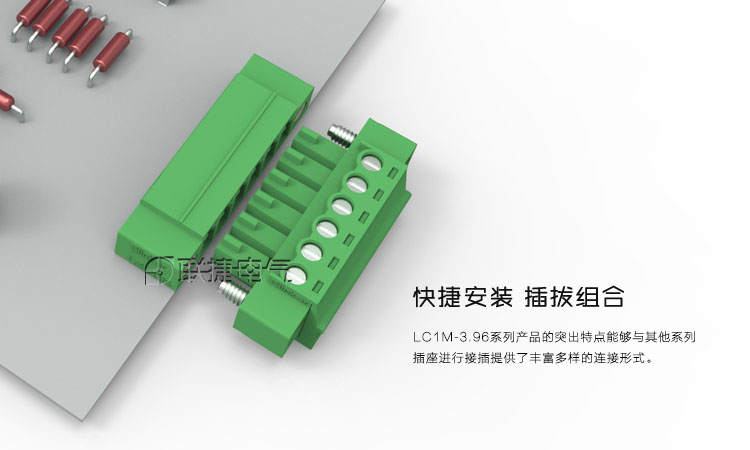

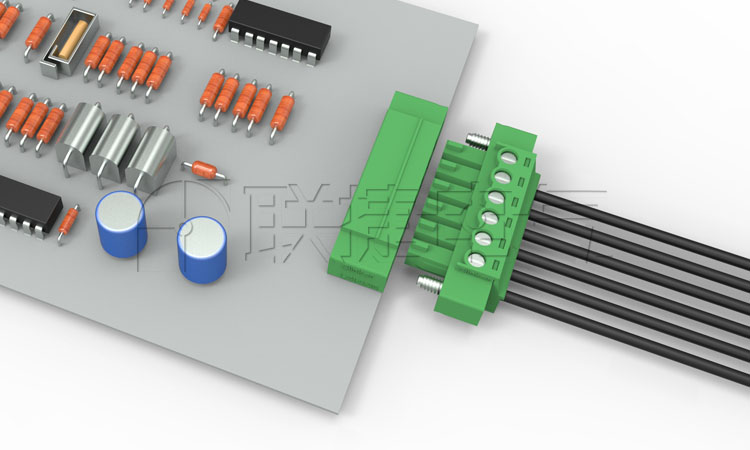

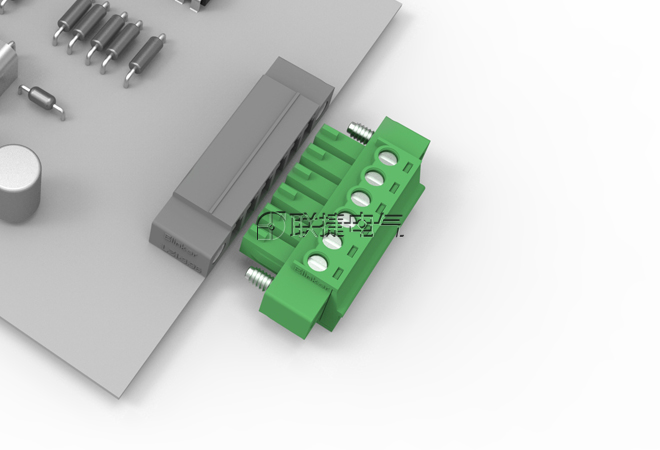

  插入方向垂直于导线，节省安装空间；

  导线接入方向垂直于插拔方向，导线免受挤压；

  可以连接截面积为2.5mm²的柔性导线；

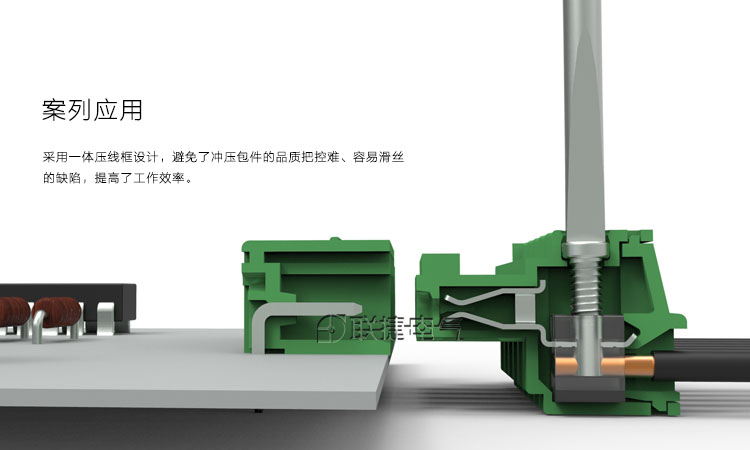

  框式接线，安全可靠。





Product Attribute
[Rated current(A)]	8A【IEC】8A【UL】
[Rated voltage(V)]	160V【IEC】300V【UL】
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	28-16
[Single/multi-core diameter(mm²):]	0.08-0.5
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/PAVO
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
[The same model]	HTM96
