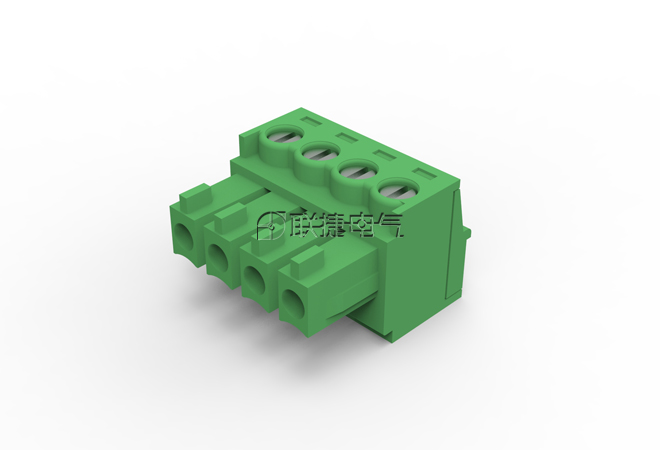

Location Home > PCB Pluggable terminal > Pluggable terminal > Pole -3.96 > LC1-3.96

Assembly

LZ1R-3.96

LZ1V-3.96

Description

Property

Scene

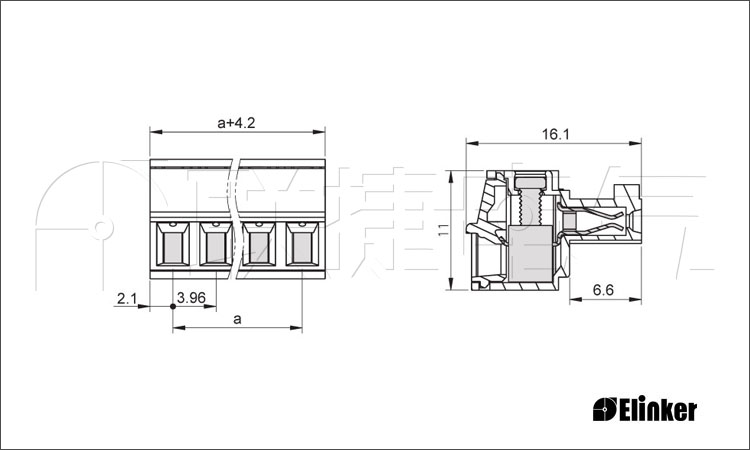

Drawings

Packing

优势

  插头插座紧密结合，节省空间；

  平行进线，法兰固定，构成抗震连接；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  通过防错插件对插头插座进行防错位保护。

Product Attribute

[Rated voltage(V)] 160

[Rated current(A):] 8

[Rated current(mm²):] 1.5

[Wire Size(AWG):] 28-16

[Single/multi-core diameter(mm²):] 0.08-0.5

[Maximum locking torque(Nm):] 0.22-0.25

[Screw:] M2

[Strip length(mm):] 7

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/VO

[Poles(P):] 2-24

[The same model] HT3.96 MC420-396
