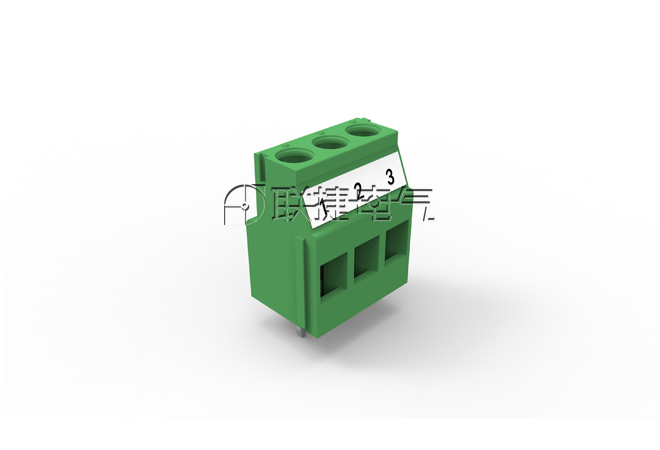

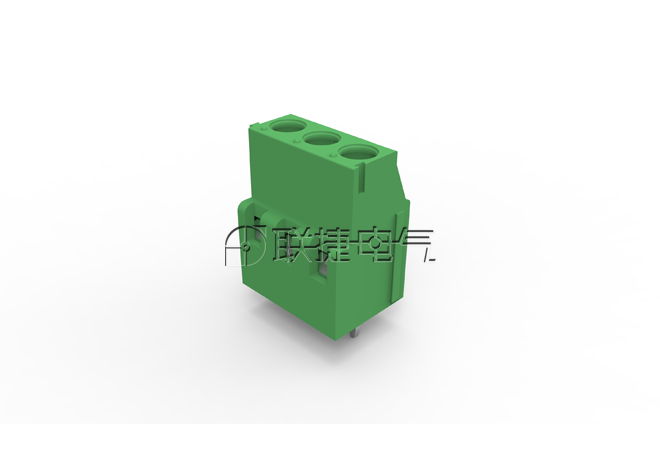

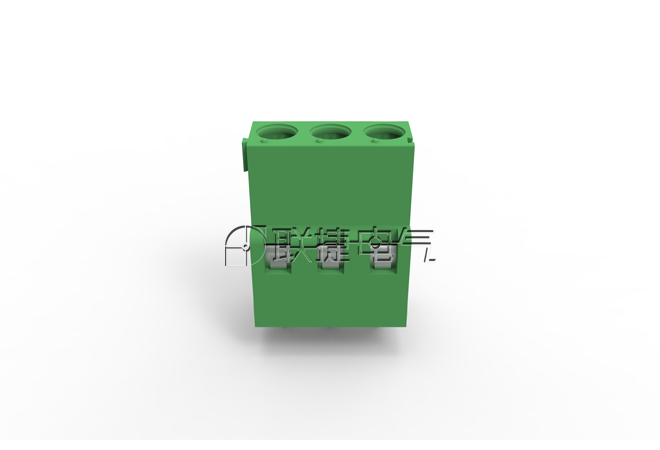

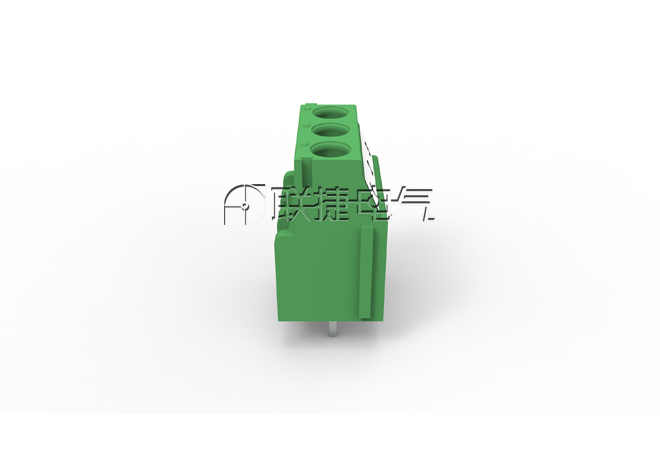

LG129V-5.0/LG129V-5.08





      优势

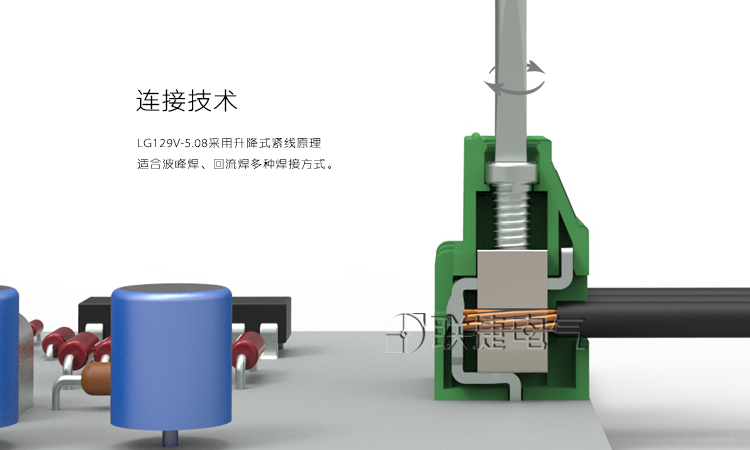

  直焊式接线端子利用框式夹线原理，焊脚与夹线体分成两部分，确保拧紧螺钉时的距离不会传至焊点而损伤焊点。

  绝缘外壳具有优良的耐磨性，机械强度较高。

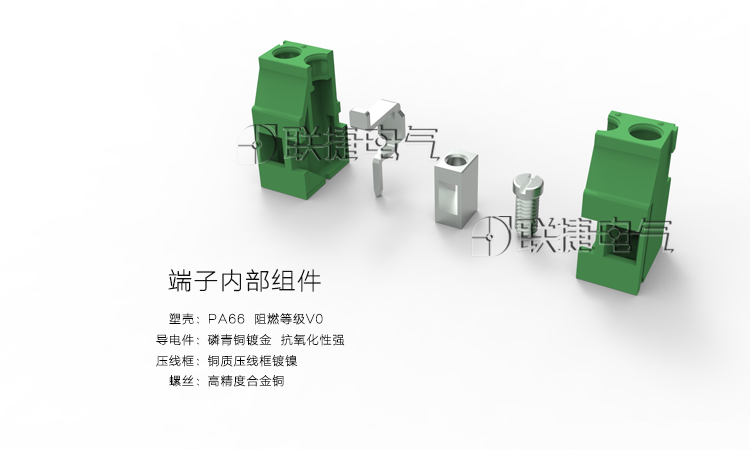

 导电件采用高精度磷青铜；用高精度高速冲压成型；可选金，银，锡，镍等电镀

  压线框常见的材质有铜材，铁包件和锌合金。我公司为了品质稳定采铜质压线框镀镍处理。











Product Attribute
[Rated voltage(V)]	400
[Rated current(A):]	16
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-14
[Single/multi-core diameter(mm²):]	0.2-2.5/0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	6.5
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/VO

Product Attribute
[Rated voltage(V)]	400
[Rated current(A):]	16
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-14
[Single/multi-core diameter(mm²):]	0.2-2.5/0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	6.5
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/VO
