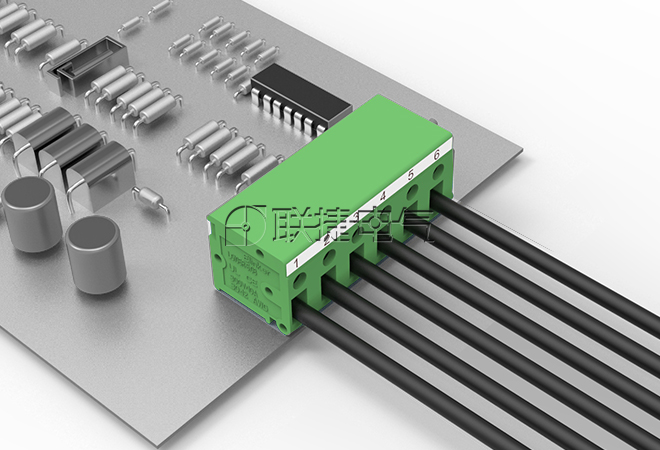

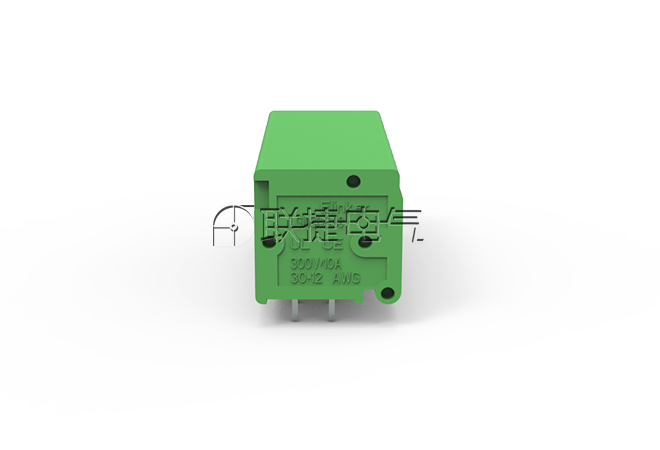

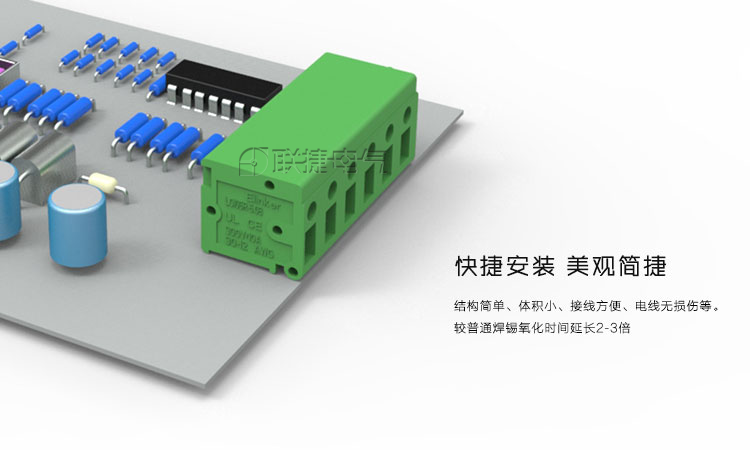

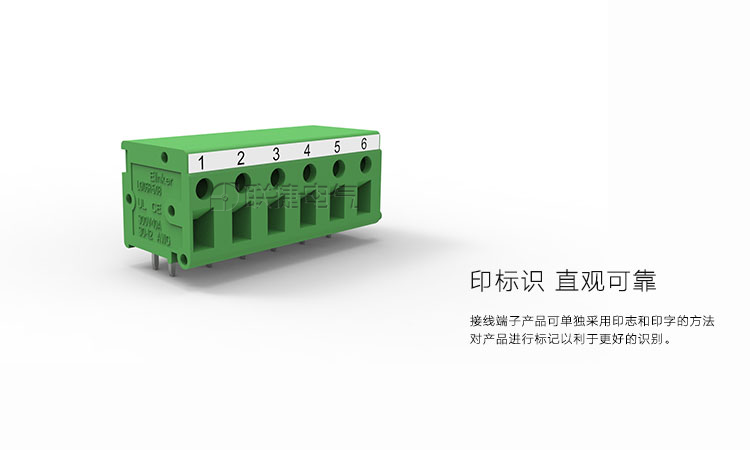

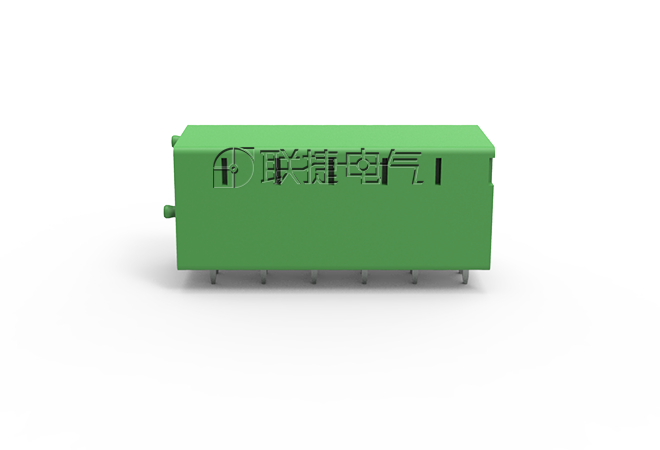

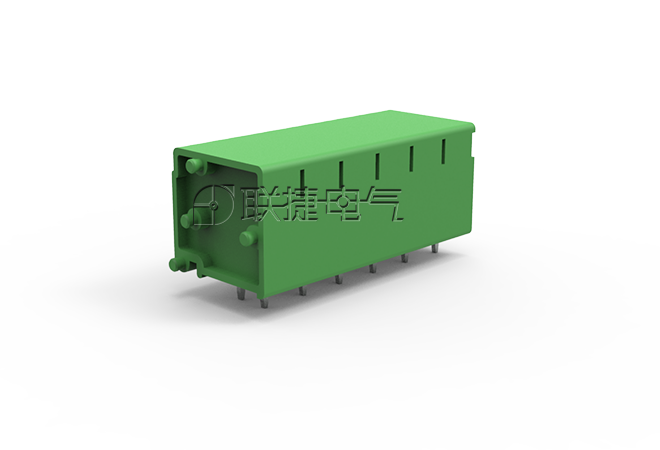

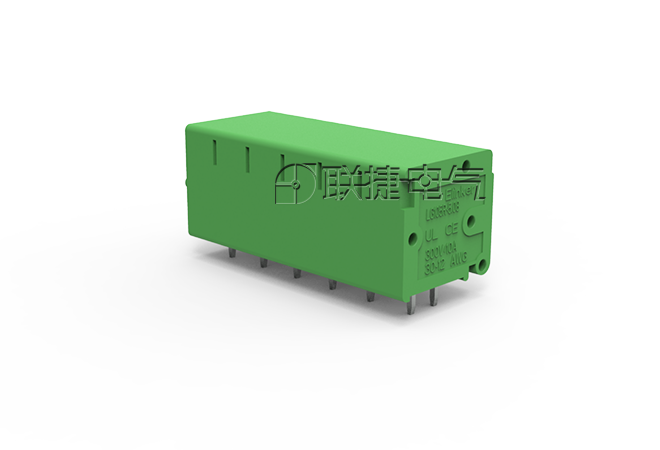

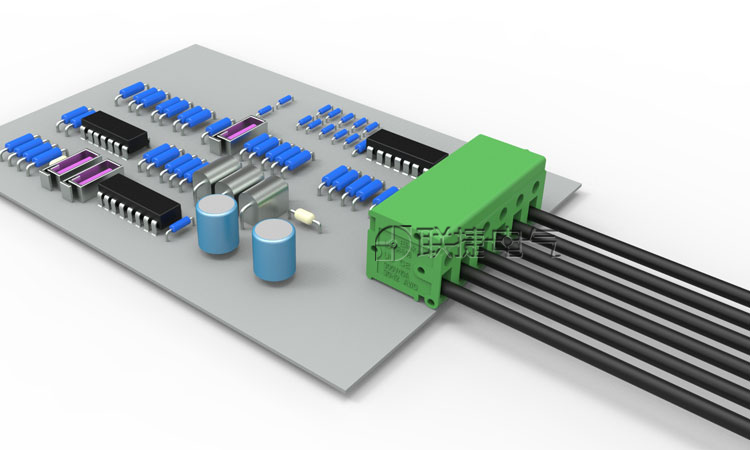

LG105R-5.0/7.5/10.0





  优势

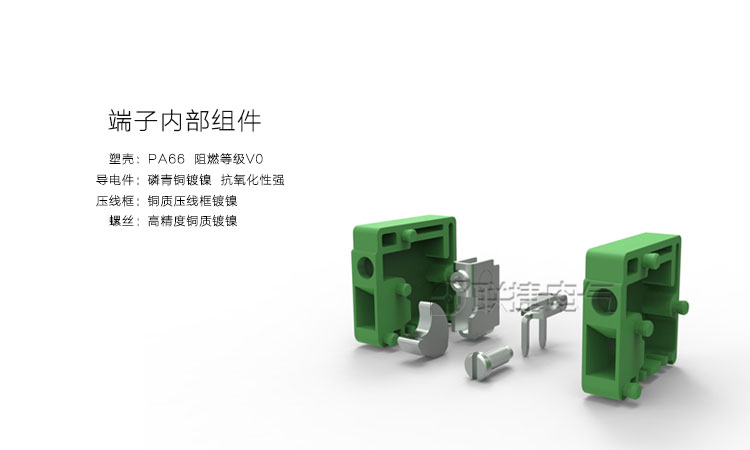

  直焊式接线端子利用滑块式原理，焊脚与夹线体分成两部分，确保拧紧螺钉时的距离不会传至焊点而损伤焊点。

  绝缘外壳具有优良的耐磨性，机械强度较高。

 导电件采用高精度磷青铜；用高精度高速冲压成型；可选金，银，锡，镍等电镀

  压线框常见的材质有铜材，铁包件和锌合金。我公司为了品质稳定采铜质压线框镀镍处理。



Product Attribute
[Temperature(℃):]	-40℃~120°℃
[Rated current(A):]	24
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-14
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.4-0.5
[Screw:]	2.5
[Strip length(mm):]	9
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/VO
[Terminal Block:]	PCB Solder Terminal

Product Attribute
[Temperature(℃):]	-40℃~120°℃
[Rated current(A):]	24
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-14
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.4-0.5
[Screw:]	2.5
[Strip length(mm):]	9
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/VO
[Terminal Block:]	PCB Solder Terminal
