Location Home > PCB Solder Terminal > Pole 5.08/5.00 > LG127AH-5.0/LG127AH-5.08

Description

Property

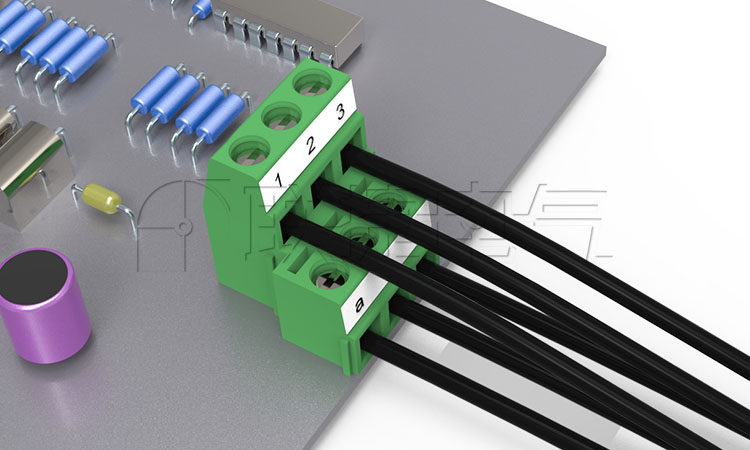

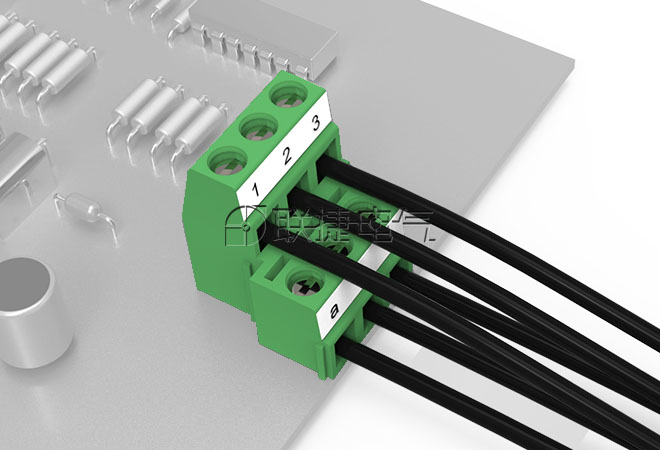

Scene

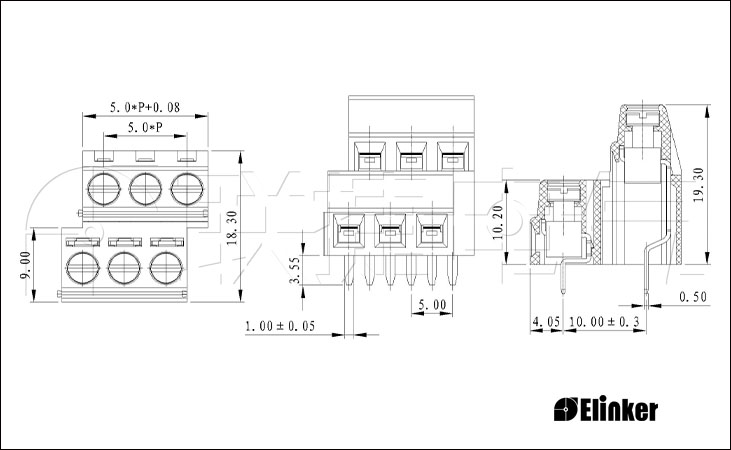

Drawings

Packing

优势

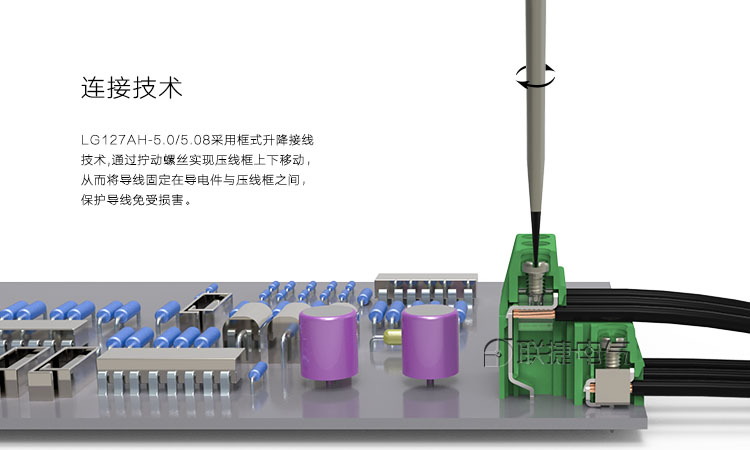

升降式压线方式；

塑壳PA66，阻燃等级V0；

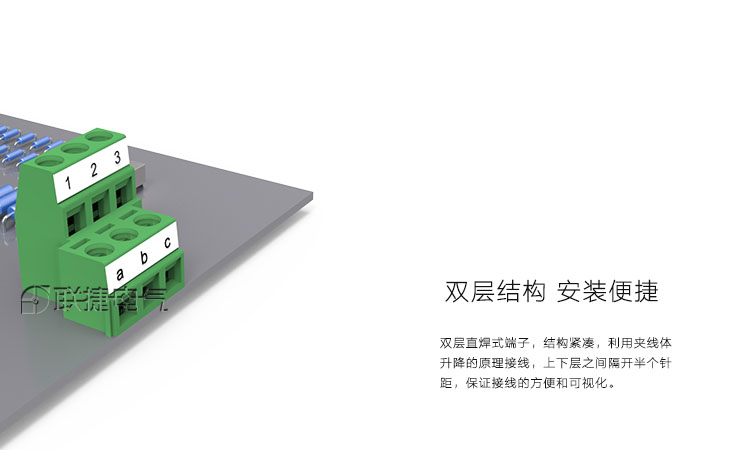

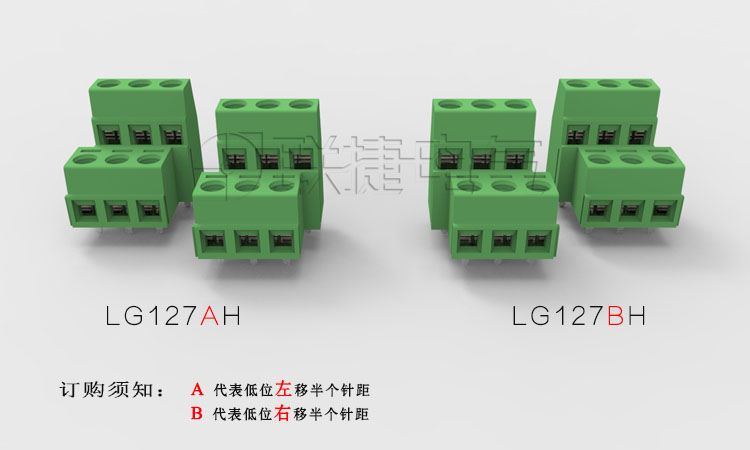

双层设计，上下层错开半个针距方便接线；

采用镀锡焊针，带散热通道，焊针端部收缩变细，易于安装。

Product Attribute

[Rated voltage(V)] 300

[Rated current(A):] 18

[Wire Size(AWG):] 26-16

[Maximum locking torque(Nm):] 0.4

[Screw:] M2.5

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Solder Terminal
