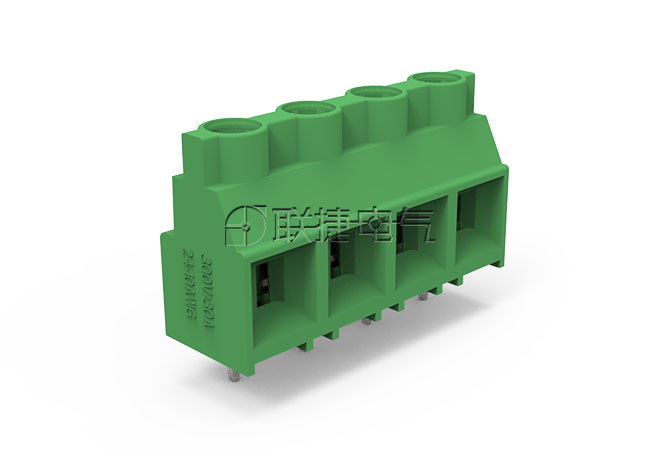

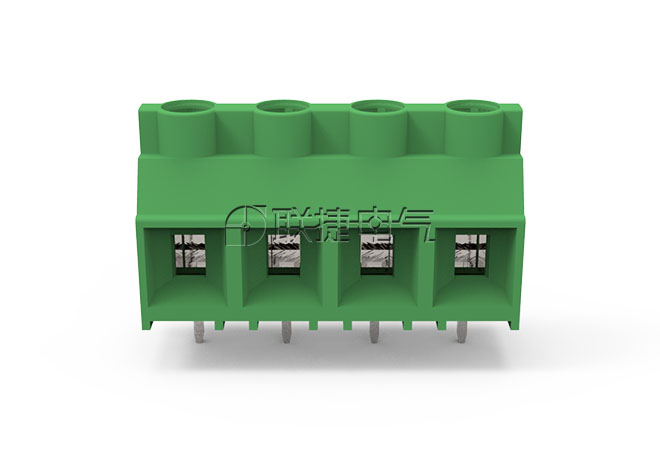

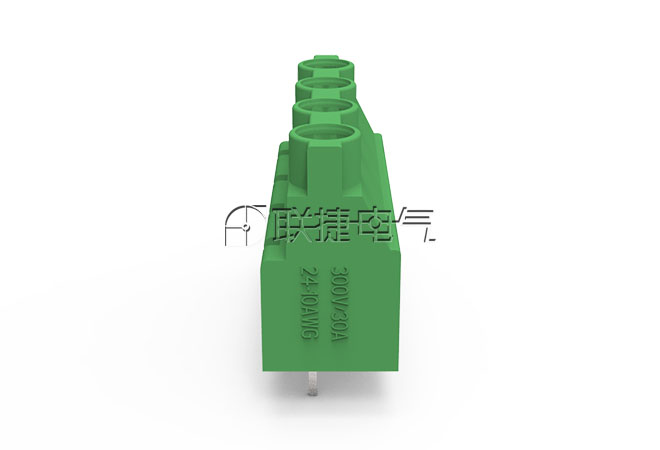

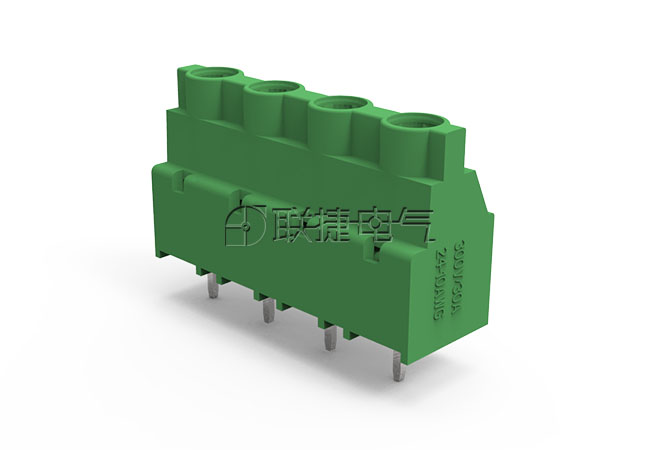

Location Home > PCB Solder Terminal > Pole 9.52 > LG952-9.52

Description

Property

Scene

Drawings

Packing

优势

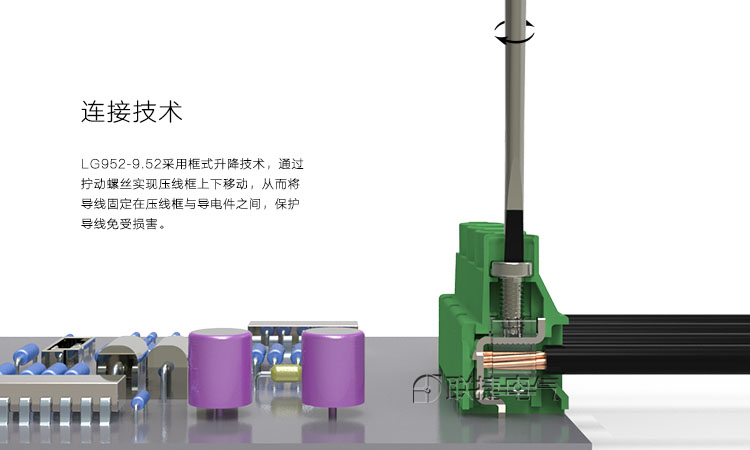

升降式压线方式；

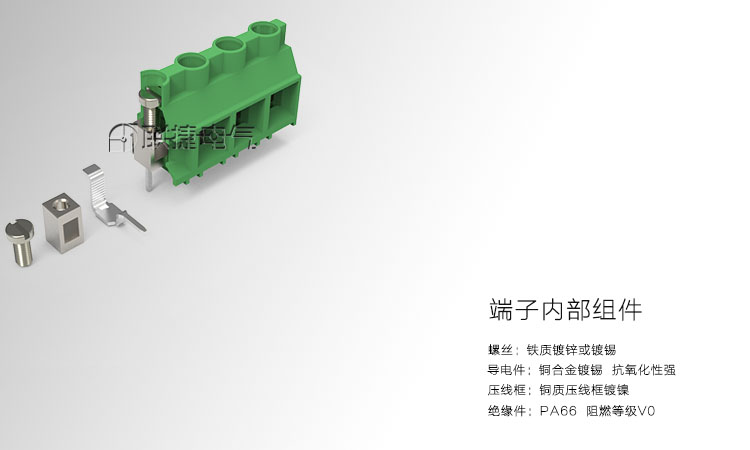

塑壳PA66，阻燃等级V0；

大电气间隙设计和相应隔板可满足用户高电压接入要求；

可接入横截面较大导线，2位和3位产品可以任意拼接，满足不同位数要求。

Product Attribute

[Temperature(℃):] -40℃~105℃

[Insulation resistance] 500MΩ

[Rated voltage(V)] 300V

[Rated current(A):] 30A

[Wire Size(AWG):] 24-10

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24P

[Terminal Block:] PCB Solder Terminal
