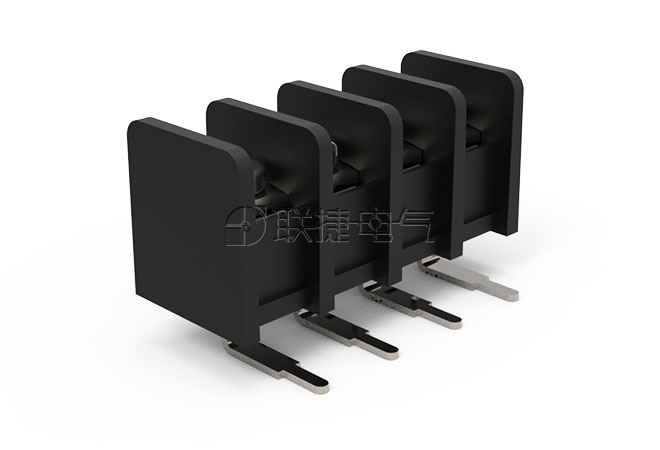

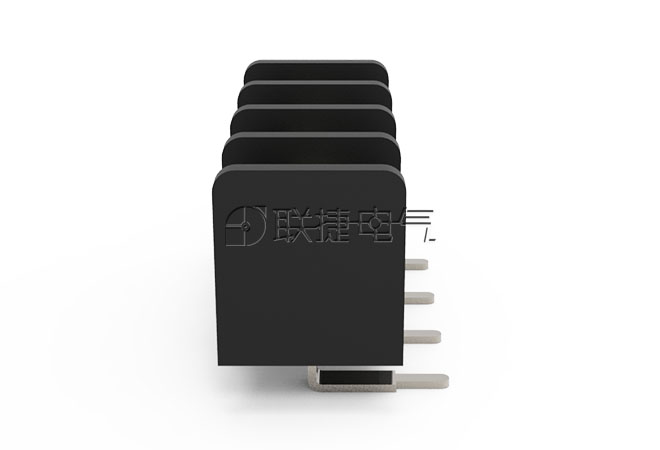

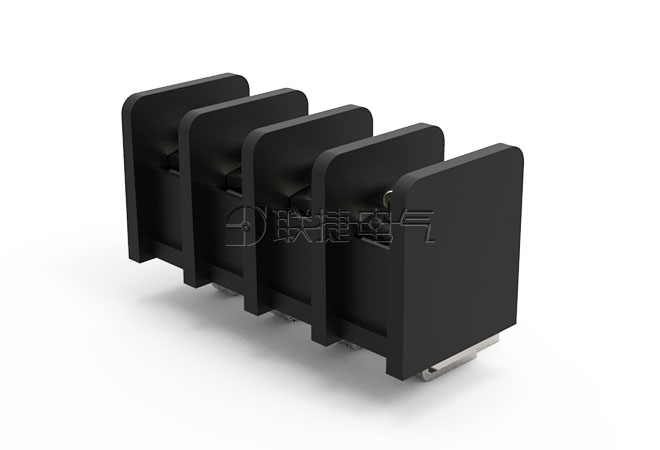

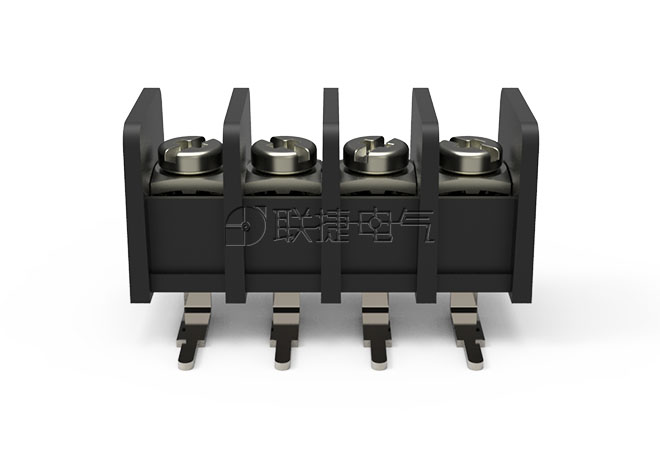

Location Home > PCB Barrier Terminal > Pole 9.50 > LW1R-9.50

Description

Property

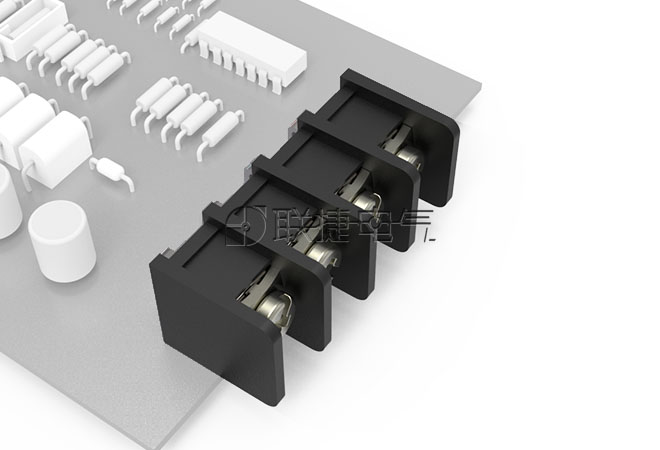

Scene

Drawings

Packing

Product Attribute

[Temperature(℃):] -40~+105

[Insulation resistance] 500MΩ/DC500V

[Rated current(A):] 15

[Wire Size(AWG):] 22-12

[Maximum locking torque(Nm):] 1.2N.m 10.6Lb.in

[Screw:] Steel,M4 Ni-Plated

[Resistant voltage(kv):] AC2000v/Min

[Terminal Block:] Brass,0.8t,Tin-Plated

[Material] PA66 UL94V-0

Product Attribute
[Temperature(℃):]	-40~+105
[Insulation resistance]	500MΩ/DC500V
[Rated current(A):]	15
[Wire Size(AWG):]	22-12
[Maximum locking torque(Nm):]	1.2N.m 10.6Lb.in
[Screw:]	Steel,M4 Ni-Plated
[Resistant voltage(kv):]	AC2000v/Min
[Terminal Block:]	Brass,0.8t,Tin-Plated
[Material]	PA66 UL94V-0

Product Attribute
[Temperature(℃):]	-40~+105
[Insulation resistance]	500MΩ/DC500V
[Rated current(A):]	15
[Wire Size(AWG):]	22-12
[Maximum locking torque(Nm):]	1.2N.m 10.6Lb.in
[Screw:]	Steel,M4 Ni-Plated
[Resistant voltage(kv):]	AC2000v/Min
[Terminal Block:]	Brass,0.8t,Tin-Plated
[Material]	PA66 UL94V-0
