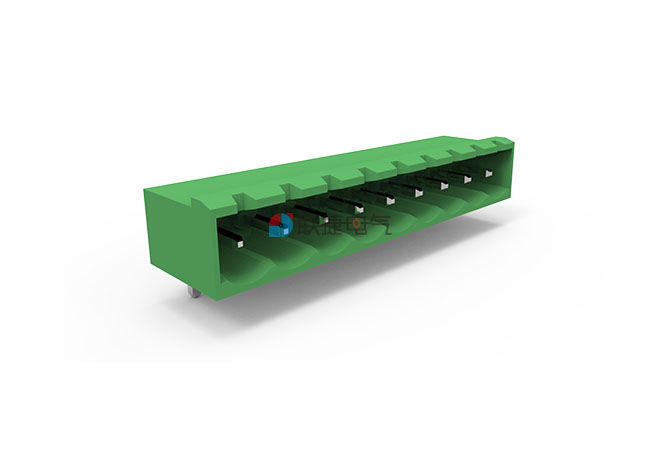

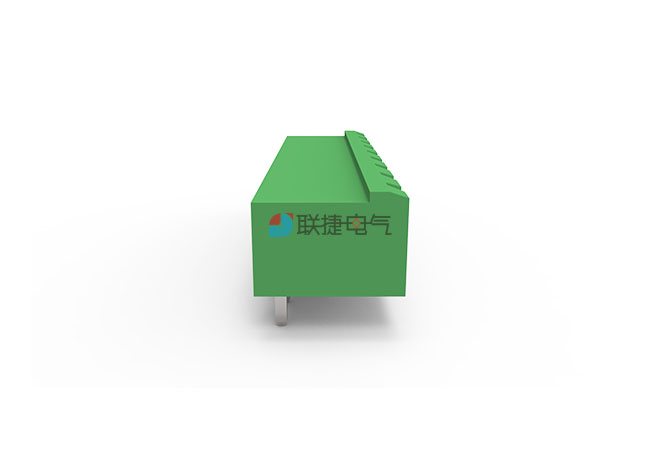

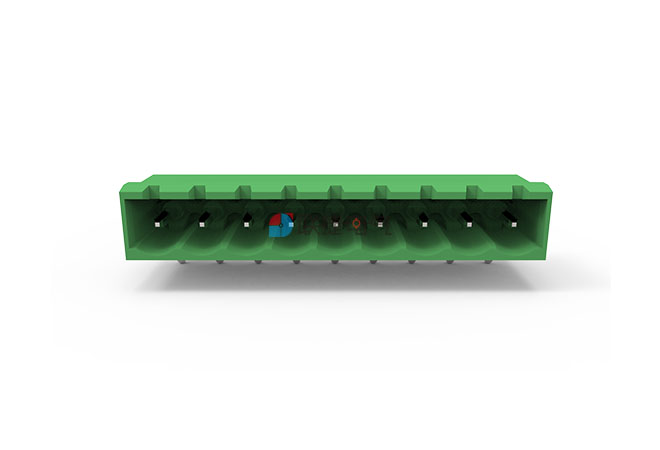

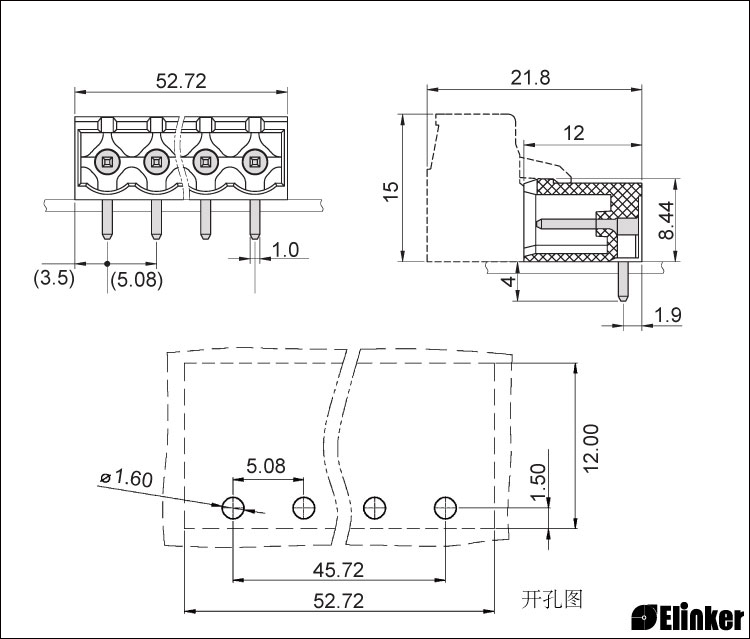

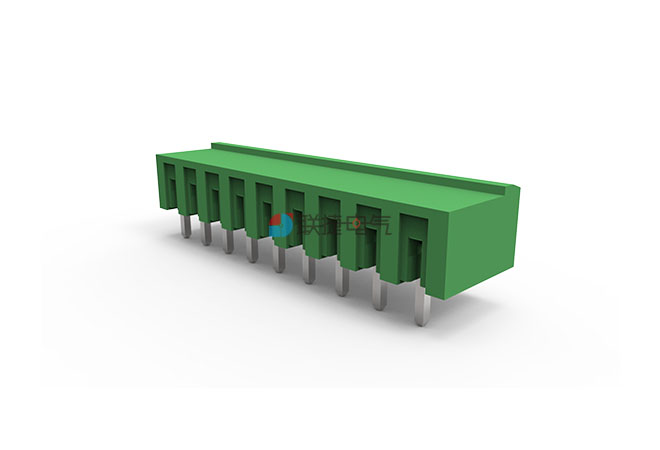

LZ1R-5.08-09P-140



       优势



  垂直型焊针,封闭型壳体,无安装螺丝；

  2-12P常备,最高可定制24P产品；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

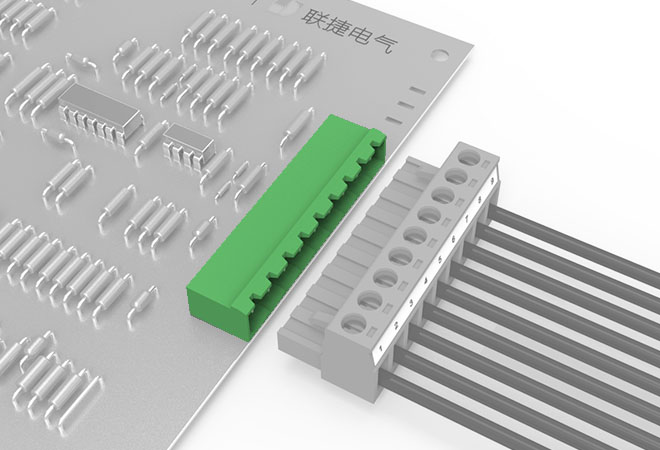

  通过防错插件对插头插座进行防错位保护。







Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	9p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBA 2,5/ 9-G-5.08 MSTBA2.5/9-G-5.08 1757310 SL 5.08HC/09/180 3.2SN OR BX SL5.08HC/09/180 1147490000 SL 5.08HC/09/90G 3.2SN BK BX 1155400000 2EHDRC-09P 2EHDRC-9P 2EDGRC-5.08-09P-14 2EDGRC-5.08-9P OQ-5.08-9P-90D Close OQ0954510000G OQ-C/90D-5.08-09P 9POS 5.08MM CE R/A HDR, TRM BLK 9POS5.08MMCER/AHDR.TRMBLK 796638-9 796639-9 STLZ950/9G-5.08-H-绿色 50950095021D PTB750S-02-2-09-3 ME030-50809 F85-7-5.08-09P F857E0900051 PCB排针 8213 S / 9 W OB 8213S/9WOB 25.352.3953.0
