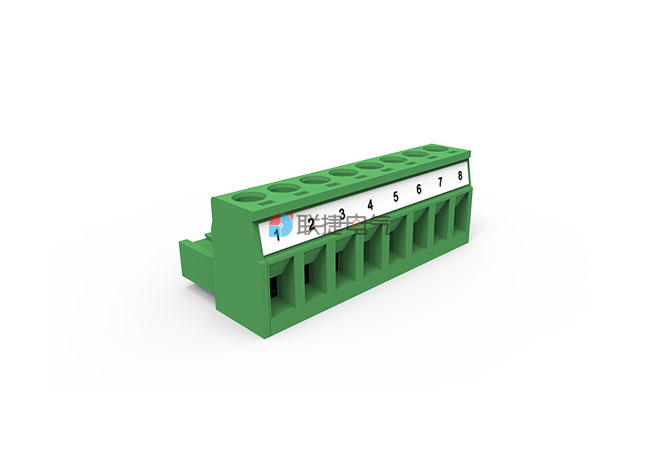

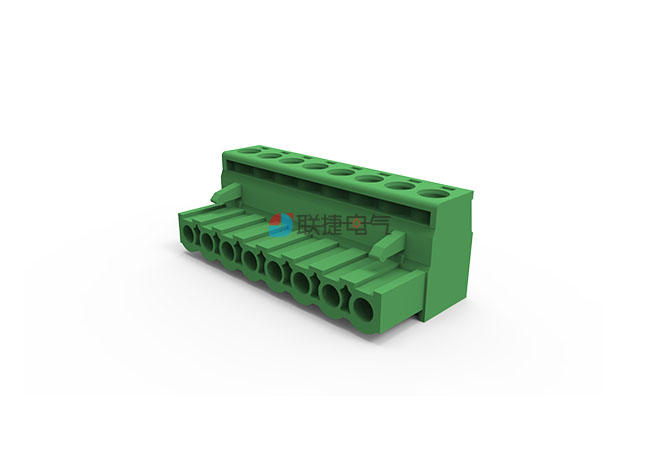

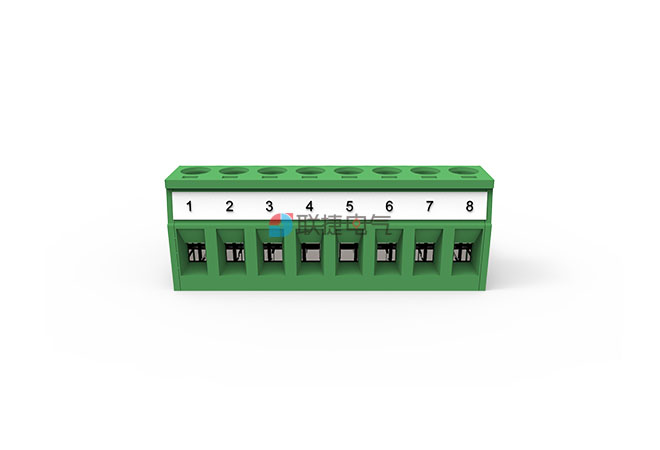

LC1-5.08-08P-140

插拔式接线端子压线方式示意图   将导线置于压线框内,拧紧螺丝,压线框随着螺丝拧紧的方向向上移动,最终固定.



       优势

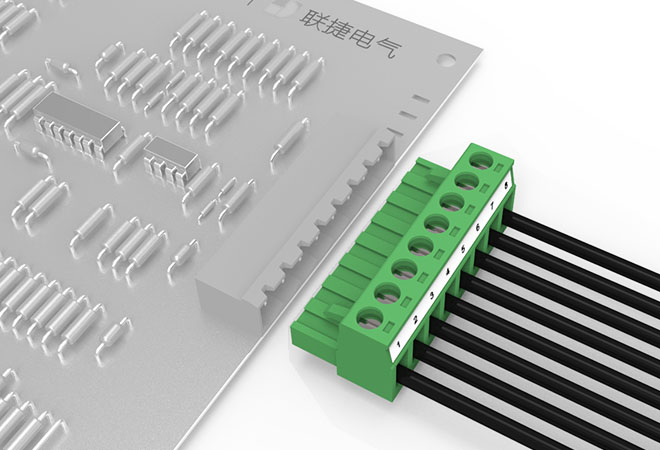

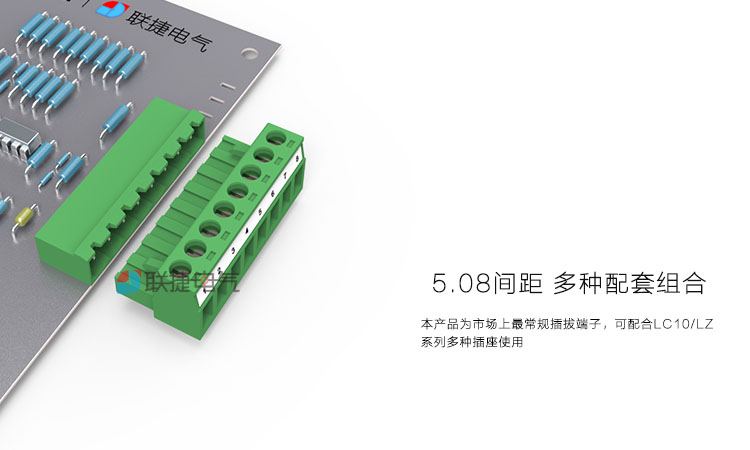

  插头插座紧密结合，节省空间；

  180°进线，框式压线，防止导线受损；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  通过防错插件对插头插座进行防错位保护。





点击访问：       YL1-5.08        PT1-5.08





Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	8p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model.]	MSTB 2,5/ 8-ST-5.08 MSTB2.5/8-ST-5.08 1757077 BLZP 5.08HC/08/180 SN OR BX BLZP5.08HC/08/180 1943640000 BLZP5.08HC/08/180 SN BK BX 1943870000 2ESDV-08P 2ESDV-8P 2EDGK-5.08-08P-14 2EDGK-5.08-8P TJ5.08-8P TJ0851530000G TJ-D/5.08-08P 8 POS 5.08MM R/A PLUG, TRM BLK 8POS5.08MMR/APLUG.TRMBLK 796634-8 796635-8 AKZ950/8-5.08-绿色 50950080021D PTB750B-03-2-08-3 MC100-50808 F75-5-5.08-08P F755E0810051 PCB 连接器 8213 B / 8 25.340.0853.0 PCB 连接器 8213 B / 8 OB 8213B/8OB 25.340.3853.0 HT508-8P
