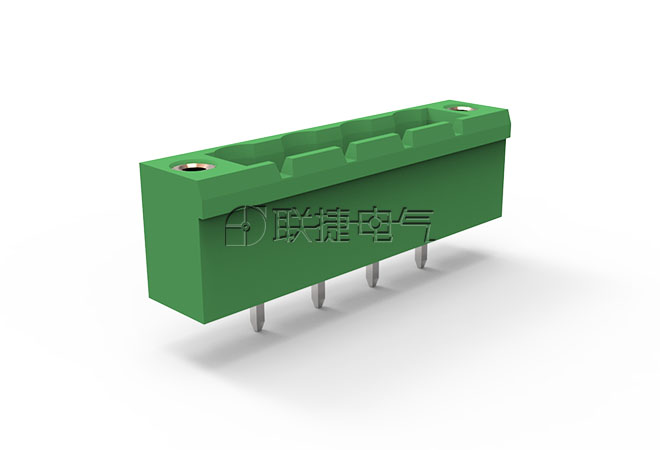

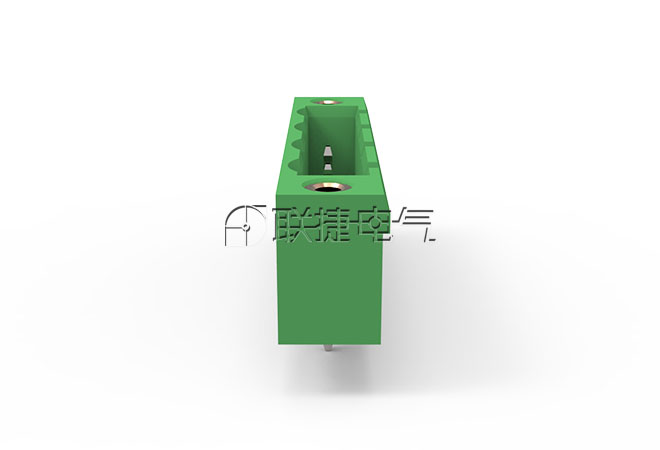

Location Home > PCB Pluggable terminal > Pluggable terminal(Header) > Pole -7.62/7.50 > LZ1VM-7.5/LZ1VM-7.62

Assembly

LC1M-7.5/LC1M-7.62

LC2AM-7.5/LC2AM-7.62

LC2BM-7.5/LC2BM-7.62

Description

Property

Scene

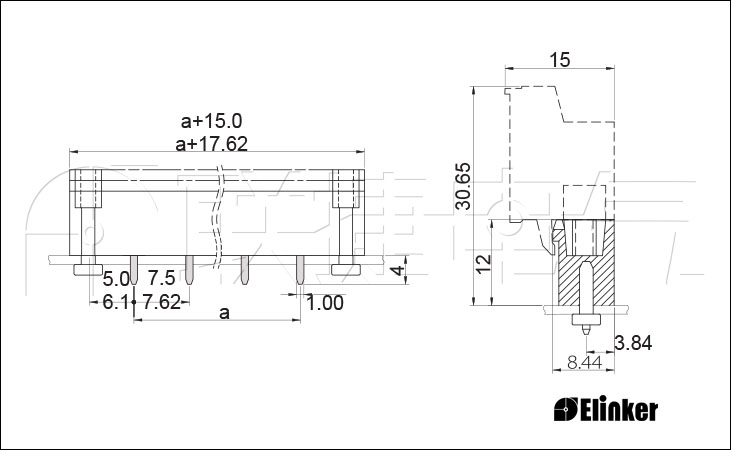

Drawings

Packing

优势

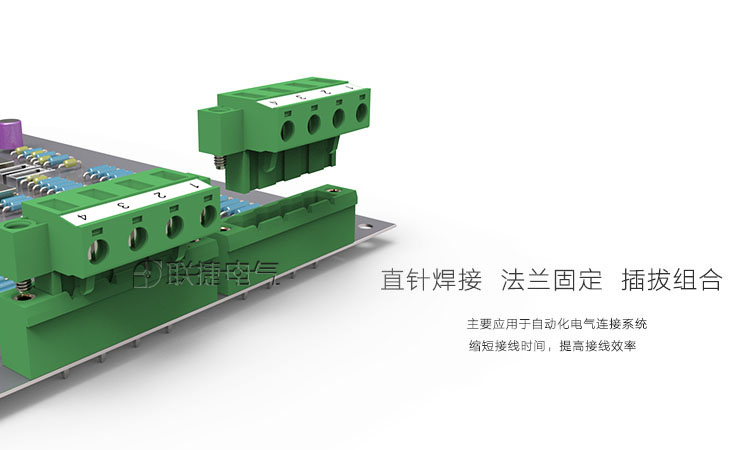

法兰固定，插头插座紧密结合，节省空间；

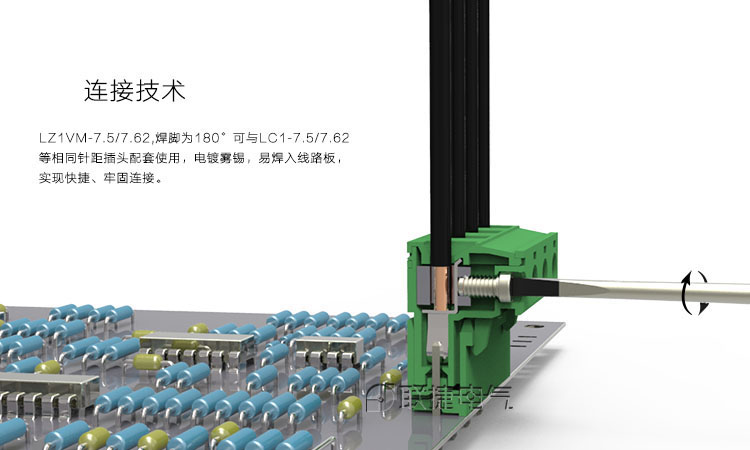

焊针呈180°，电镀雾锡，可焊接于线路板；

可定制，2-24P满足不同接线环境的需要。

Product Attribute

[Temperature(℃):] -40℃~105℃

[Rated voltage(V)] 【IEC】400V 【UL】300V

[Rated current(A):] 【IEC】12A 【UL】15A

[Resistant voltage(kv):] 6

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block

Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】400V 【UL】300V
[Rated current(A):]	【IEC】12A 【UL】15A
[Resistant voltage(kv):]	6
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block

Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】400V 【UL】300V
[Rated current(A):]	【IEC】12A 【UL】15A
[Resistant voltage(kv):]	6
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
