Location Home > PCB Spring Terminal > Pole 5.08/5.00 > LSC10M-5.0

Assembly

LSC1-5.0

LSC1M-5.0

Description

Property

Scene

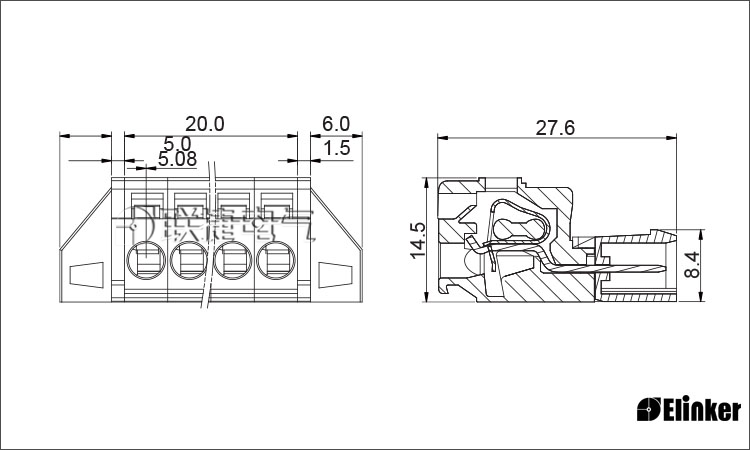

Drawings

Packing

优势

  可定做，位数灵活；

结构高度低，利于安装；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

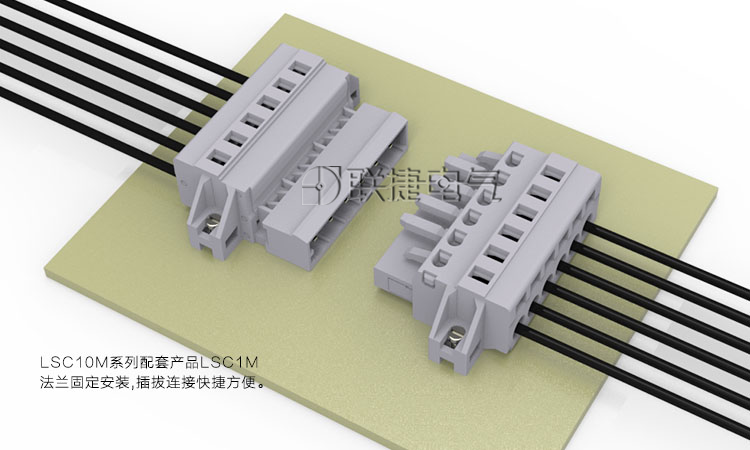

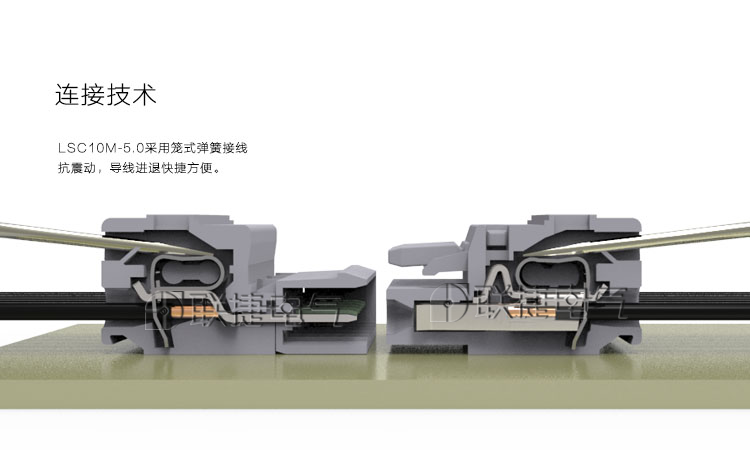

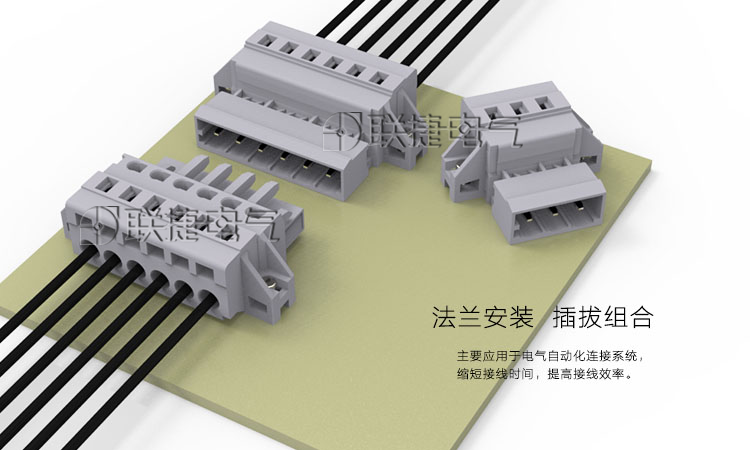

  法兰固定，弹片连接，接线牢固快捷。

Product Attribute

[Rated voltage(V)] 250V

[Rated current(A):] 16A

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 28-12

[Single/multi-core diameter(mm²):] 0.08-2.5

[Strip length(mm):] 8

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	250V
[Rated current(A):]	16A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	28-12
[Single/multi-core diameter(mm²):]	0.08-2.5
[Strip length(mm):]	8
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
