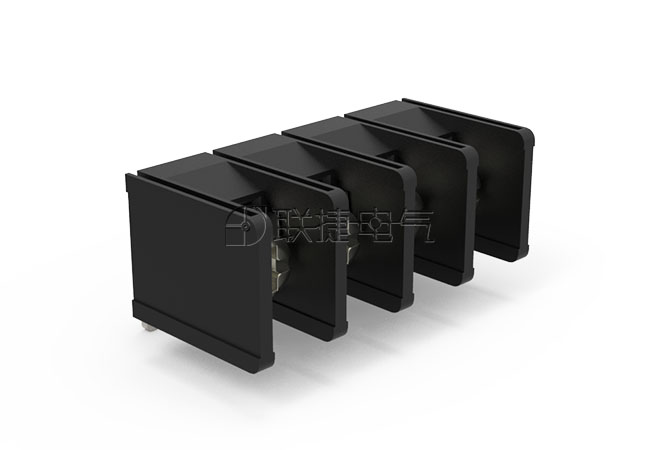

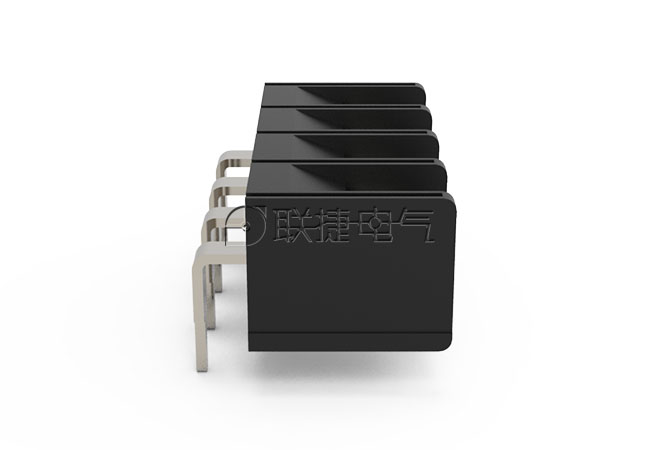

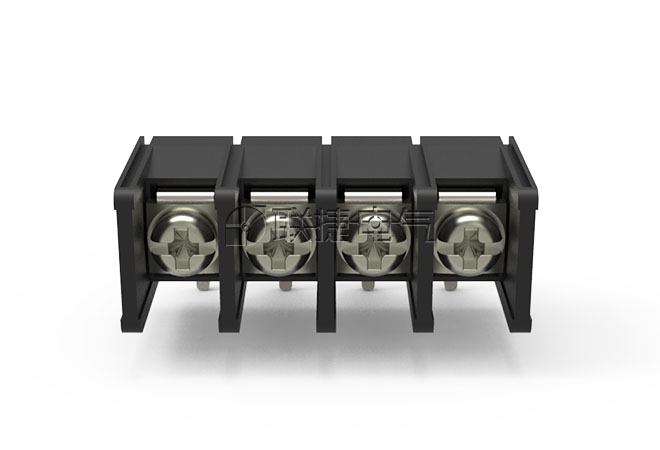

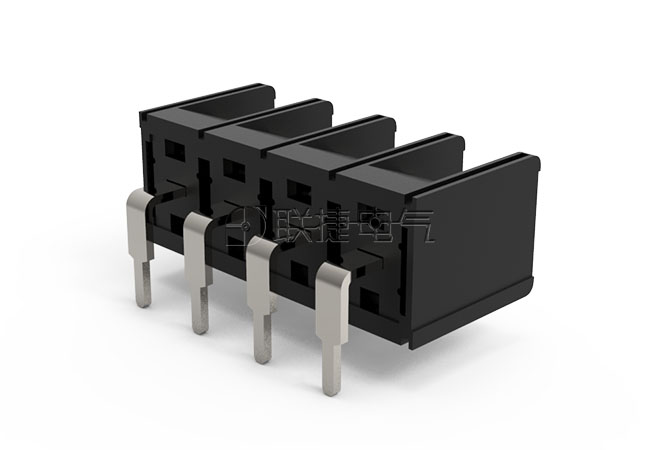

Location Home > PCB Barrier Terminal > Pole 7.62 > LW5R-7.62

Description

Property

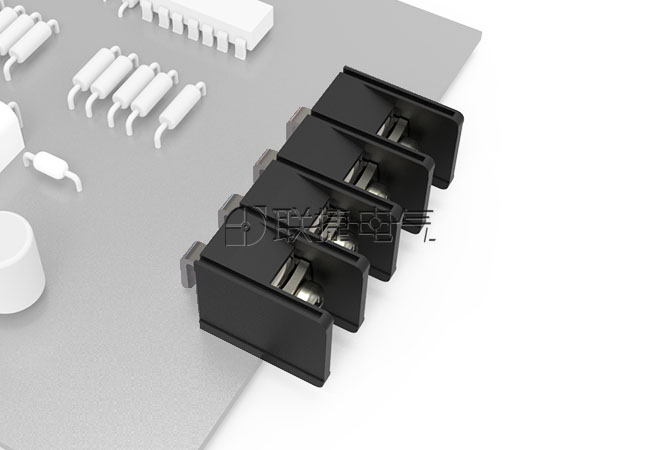

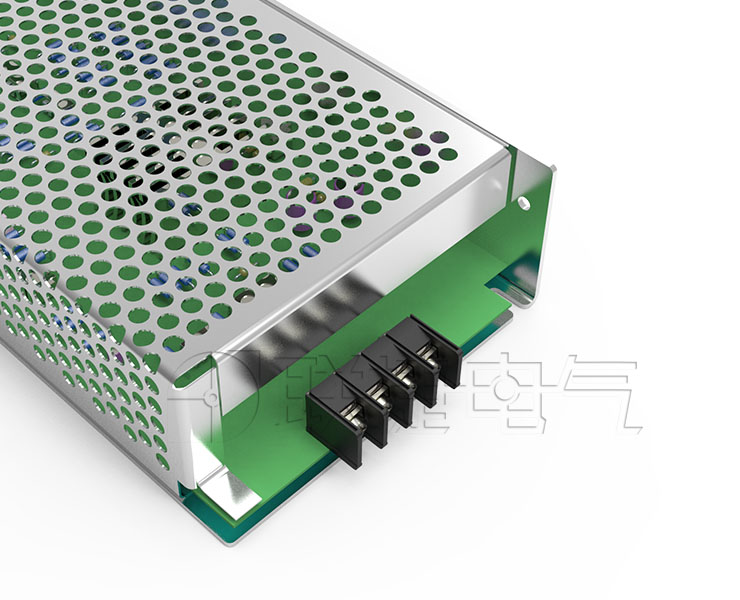

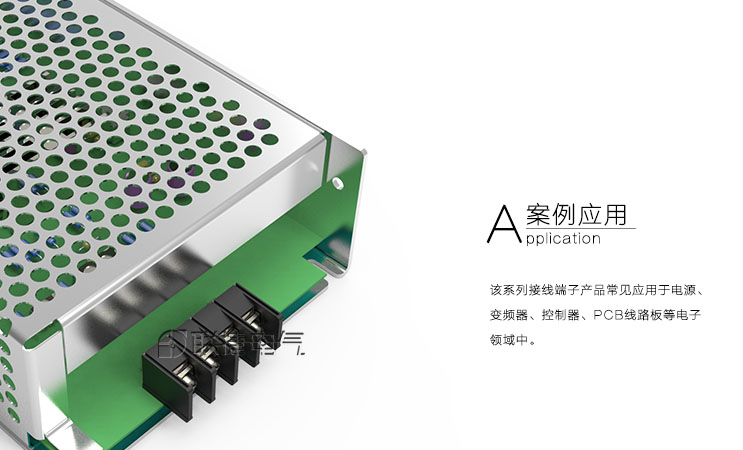

Scene

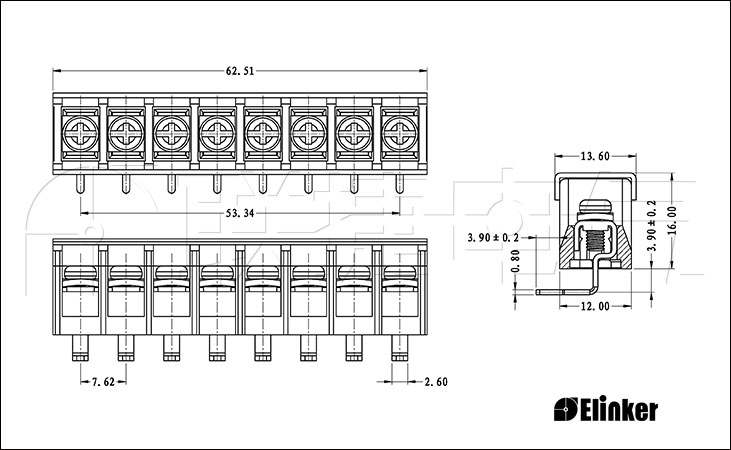

Drawings

Packing

Product Attribute

[Temperature(℃):] -40~+105

[Insulation resistance] 500MΩ/DC500V

[Rated current(A):] 15A

[Wire Size(AWG):] 22-14

[Maximum locking torque(Nm):] 0.8N.m 4.4Lb.in

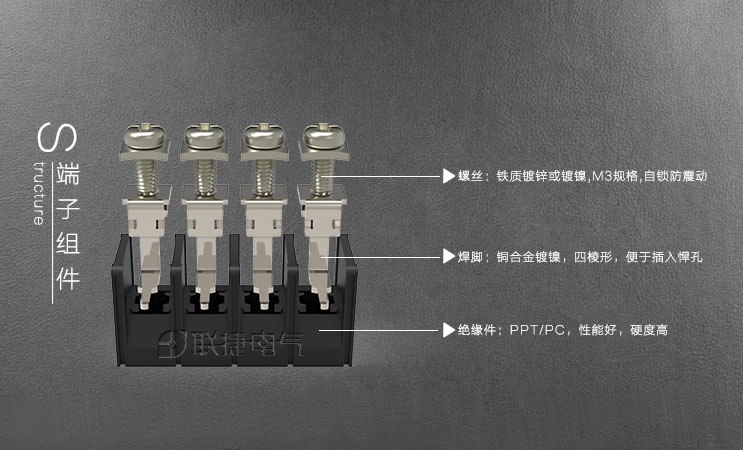

[Screw:] Steel,M3 Ni-Plated

[Resistant voltage(kv):] AC2000v/Min

[Terminal Block:] Brass,0.8t,Tin-Plated

[Material] PA66 UL94V-0
