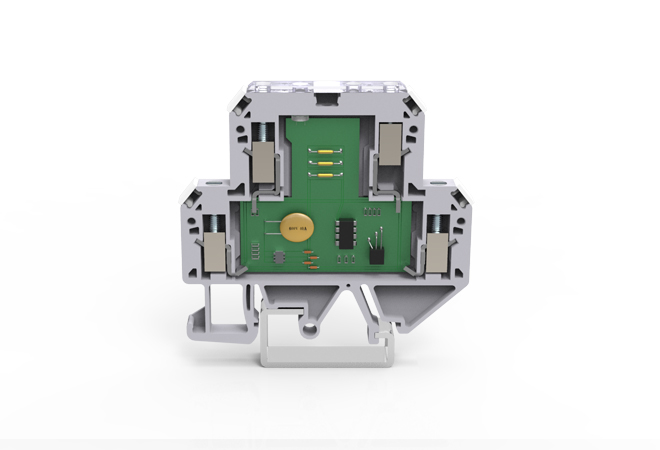

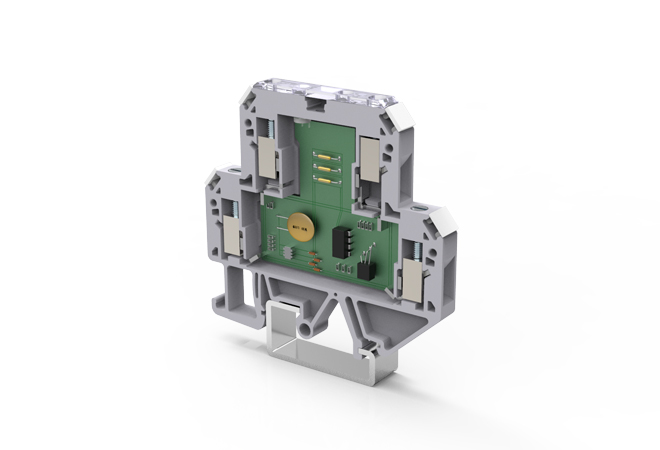

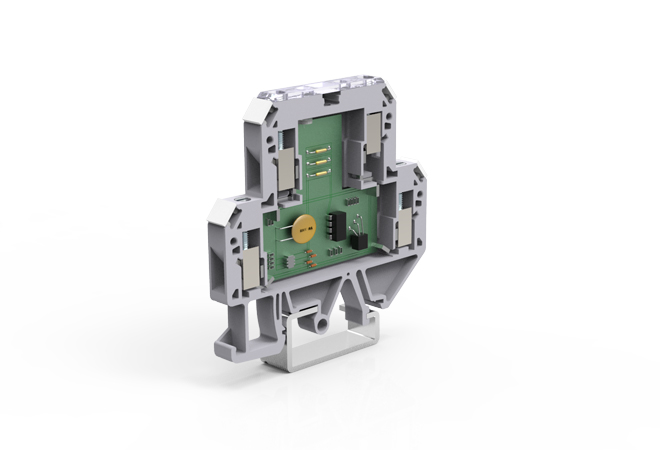

KG2A光电耦合接线端子



       优势



  控制端信号损耗小；

  切换频率高；

  无触点抖动；

  无磨损切换；

  抗振动；

  绝缘电压高；

  寿命长。





Product Attribute
[Thickness / Width / End Plate Thickness(mm)]	6.2/55/1.5
[Maximum Rated currentA)]	24
[Maximum Rated voltage(V)]	600
[Wire Size（mm²）]	0.2-6/0.2-4
[Resistant voltage（KV）]	2
[Pollution level]	3
[Screw]	M3
[Torque(Nm)]	0.6-0.8
[Insulation Resistance]	PA
[Insulation Resistance(V0)]	V0
[Rated current(A)]	24
[Rated voltage(V)]	600
[Height(mm)]	65(G)/70(U)

Product Attribute
[Thickness / Width / End Plate Thickness(mm)]	6.2/55/1.5
[Maximum Rated currentA)]	24
[Maximum Rated voltage(V)]	600
[Wire Size（mm²）]	0.2-6/0.2-4
[Resistant voltage（KV）]	2
[Pollution level]	3
[Screw]	M3
[Torque(Nm)]	0.6-0.8
[Insulation Resistance]	PA
[Insulation Resistance(V0)]	V0
[Rated current(A)]	24
[Rated voltage(V)]	600
[Height(mm)]	65(G)/70(U)
