E12*14*19-M5_E Series_Solder Terminal_terminal block-pcb terminal blocks-terminal block manufacturers

Product

Location Home > Solder Terminal > E Series > E12*14*19-M5

Description

Property

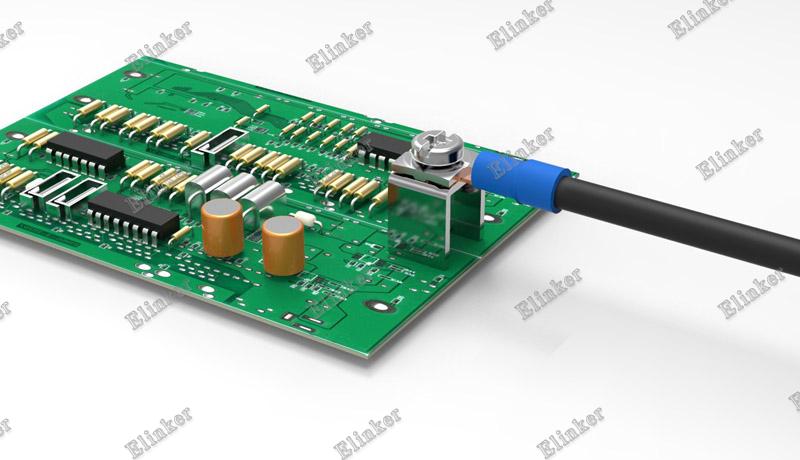

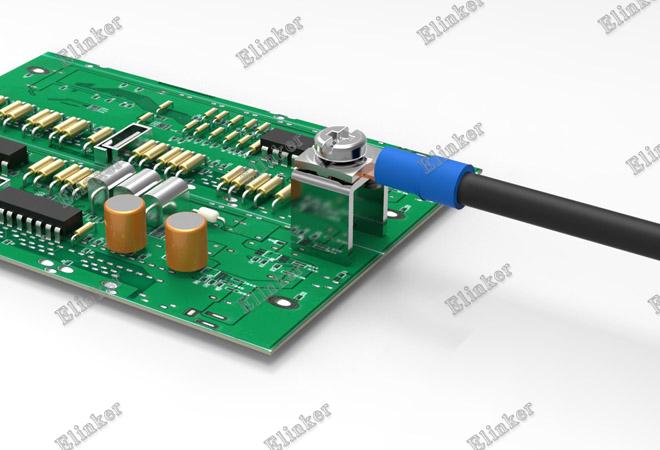

Scene

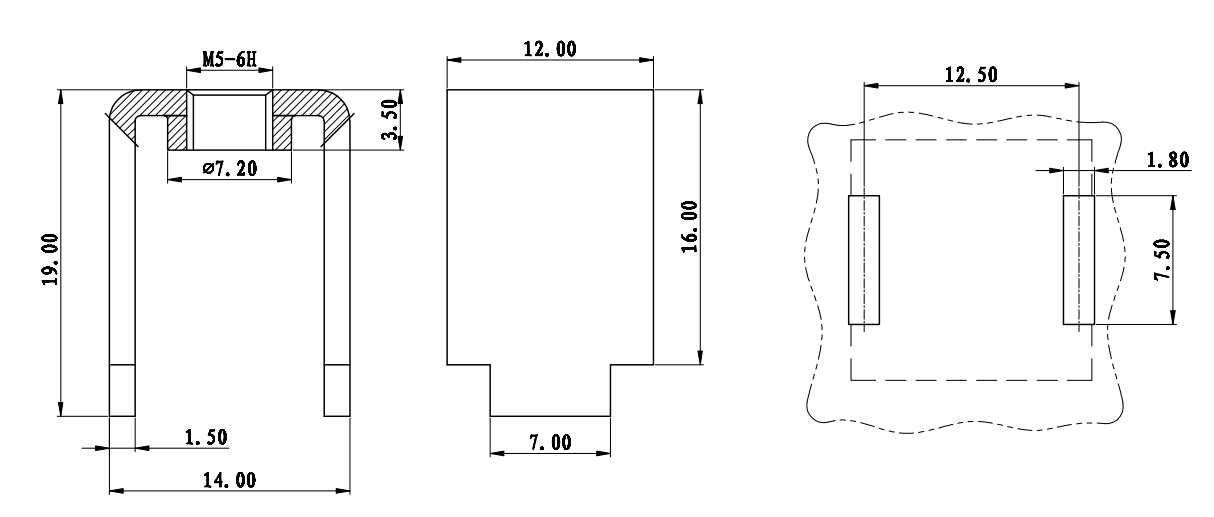

Drawings

Packing

产品规格书：

场景应用：

Product Attribute

[Rated voltage(V)] 660V

[Rated current(A):] 80A

[Rated current(mm²):] 10

[Wire Size(AWG):] 20-6

[Single/multi-core diameter(mm²):] 0.5-10

[Maximum locking torque(Nm):] 2.0

[Screw:] M5

[Strip length(mm):] 10

Product Attribute
[Rated voltage(V)]	660V
[Rated current(A):]	80A
[Rated current(mm²):]	10
[Wire Size(AWG):]	20-6
[Single/multi-core diameter(mm²):]	0.5-10
[Maximum locking torque(Nm):]	2.0
[Screw:]	M5
[Strip length(mm):]	10

Product Attribute
[Rated voltage(V)]	660V
[Rated current(A):]	80A
[Rated current(mm²):]	10
[Wire Size(AWG):]	20-6
[Single/multi-core diameter(mm²):]	0.5-10
[Maximum locking torque(Nm):]	2.0
[Screw:]	M5
[Strip length(mm):]	10
