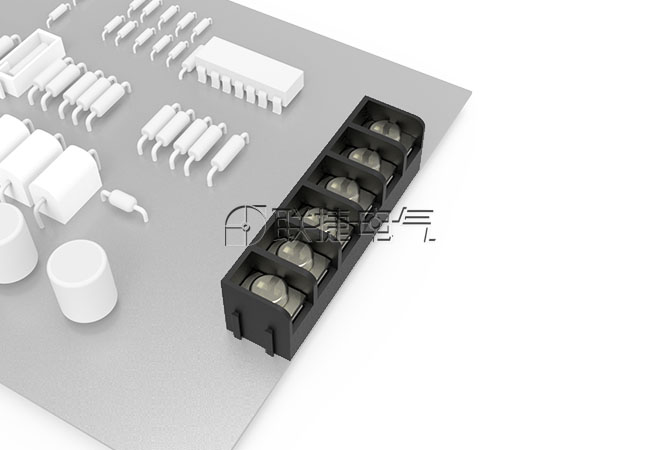

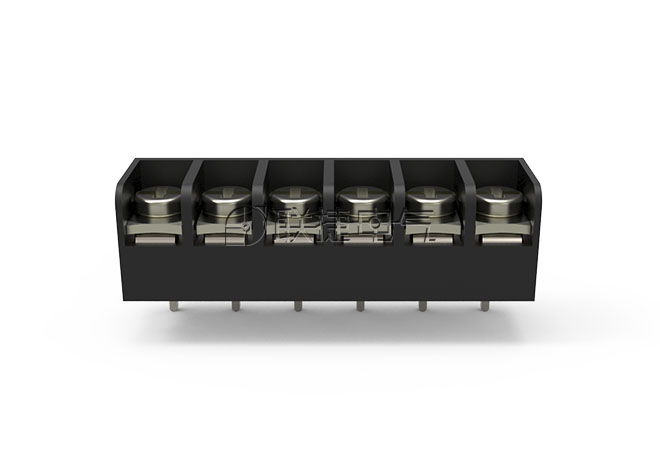

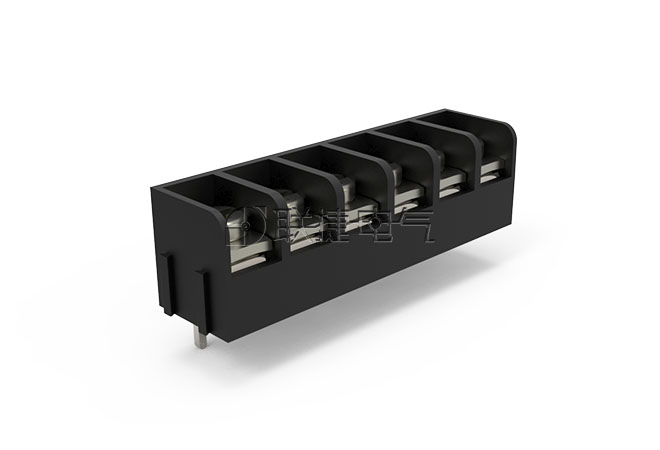

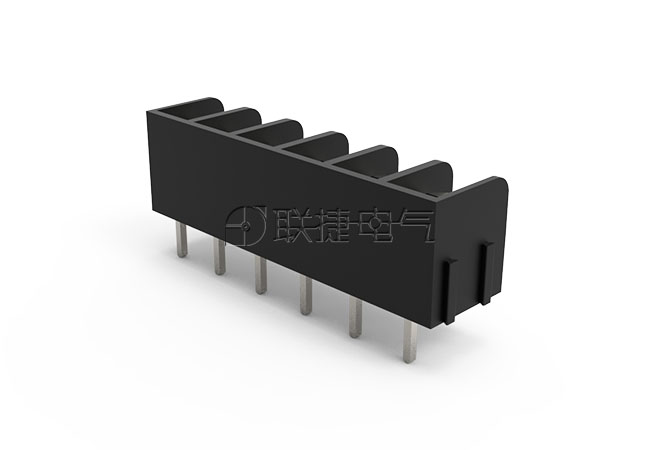

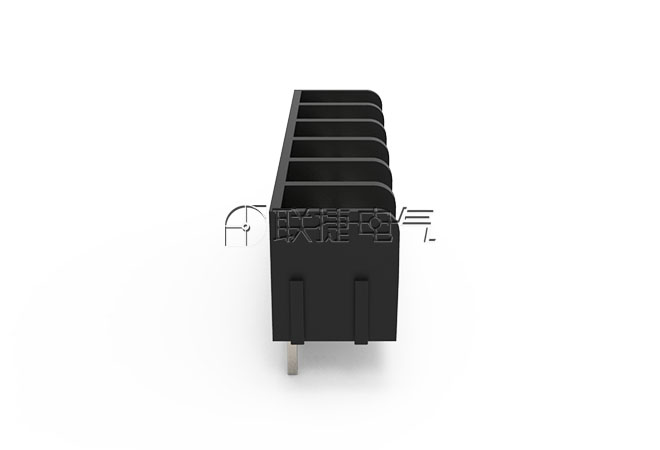

LW3PB-6.35

LW3PB-6.35

  • Pitch
  • Click  2156
    Delivery time  2013-2-3
    Service  the stock and prices and other information please consult the sales
  • Brand  Elinker
  • Download

prev next

Description

Property

Scene

Drawings

Packing







Product Attribute
[Temperature(℃):] -40~+105
[Insulation resistance] 500MΩ/DC500V
[Rated current(A):] 20
[Wire Size(AWG):] 22-12
[Maximum locking torque(Nm):] 0.5N.m 4.4Lb.in
[Screw:] Steel,M3 Ni-Plated
[Resistant voltage(kv):] AC2000v/Min
[Terminal Block:] Brass,0.8t,Tin-Plated
[Material] PA66 UL94V-0

Product Attribute
[Temperature(℃):] -40~+105
[Insulation resistance] 500MΩ/DC500V
[Rated current(A):] 20
[Wire Size(AWG):] 22-12
[Maximum locking torque(Nm):] 0.5N.m 4.4Lb.in
[Screw:] Steel,M3 Ni-Plated
[Resistant voltage(kv):] AC2000v/Min
[Terminal Block:] Brass,0.8t,Tin-Plated
[Material] PA66 UL94V-0
