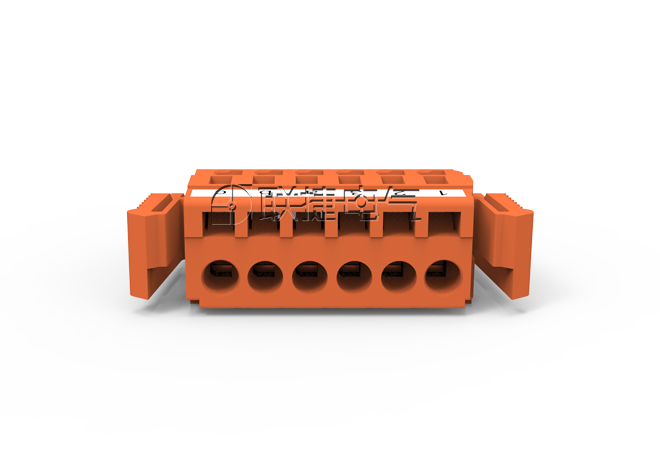

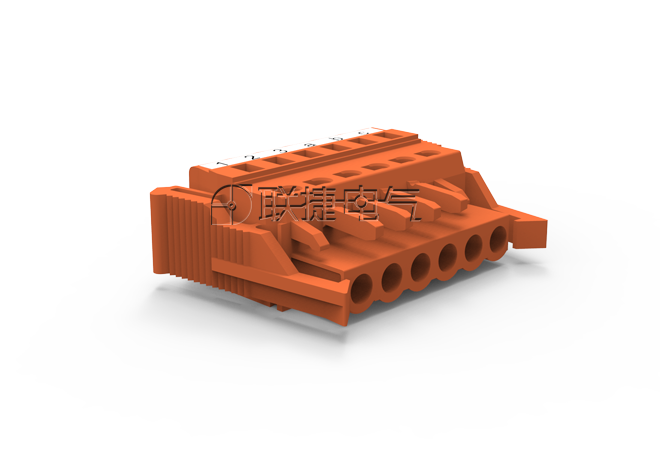

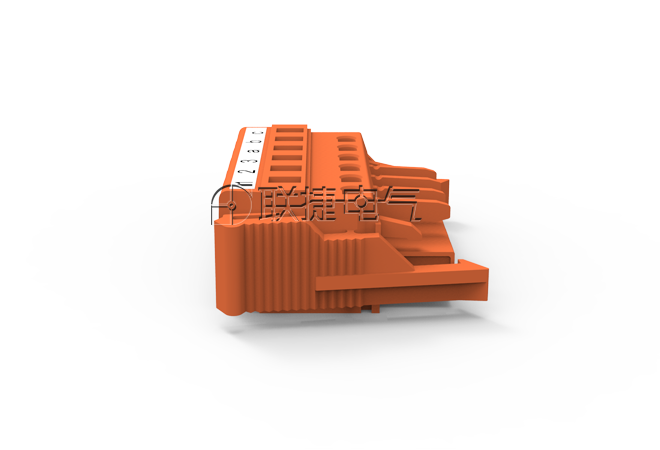

LSC1J-5.08_Pole 5.08/5.00_PCB Spring Terminal_terminal block-pcb terminal blocks-terminal block manufacturers

Product

Location Home > PCB Spring Terminal > Pole 5.08/5.00 > LSC1J-5.08

Assembly

LSC10-5.08

LSZ1R-5.08

LSZ1V-5.08

LSZ1BR-5.08

Description

Property

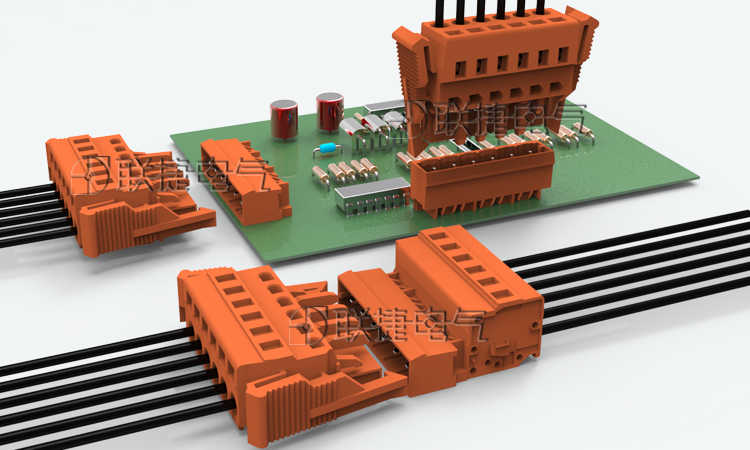

Scene

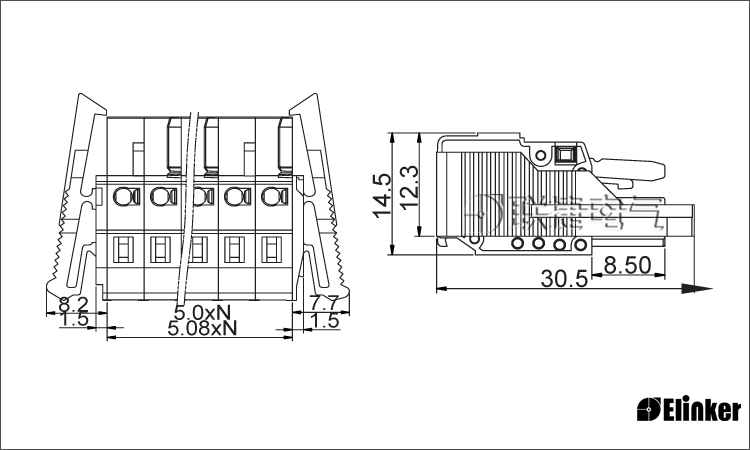

Drawings

Packing

       优势

  单片拼接，位数灵活；

无按键规格，结构高度低；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

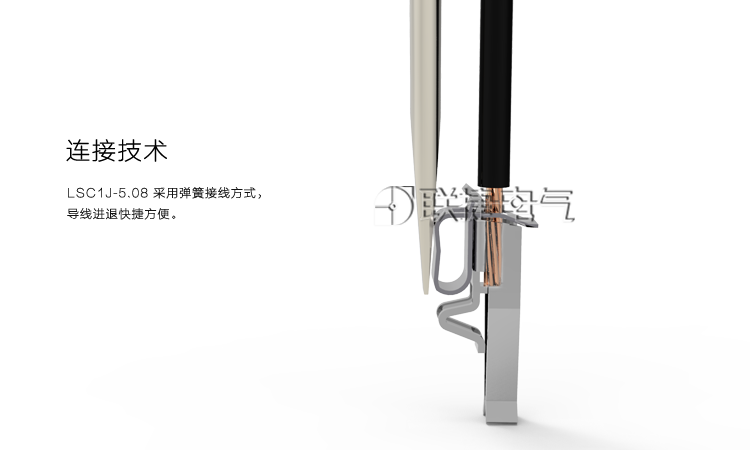

  弹片连接，方便快捷。

Product Attribute

[Temperature(℃):] -40℃~120℃

[Rated voltage(V)] 400V

[Rated current(A):] 20A

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 22-14

[Strip length(mm):] 9

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA66/V0

[Terminal Block:] PCB Spring Terminal/PCB terminal block

Product Attribute
[Temperature(℃):]	-40℃~120℃
[Rated voltage(V)]	400V
[Rated current(A):]	20A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	22-14
[Strip length(mm):]	9
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA66/V0
[Terminal Block:]	PCB Spring Terminal/PCB terminal block

Product Attribute
[Temperature(℃):]	-40℃~120℃
[Rated voltage(V)]	400V
[Rated current(A):]	20A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	22-14
[Strip length(mm):]	9
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA66/V0
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
